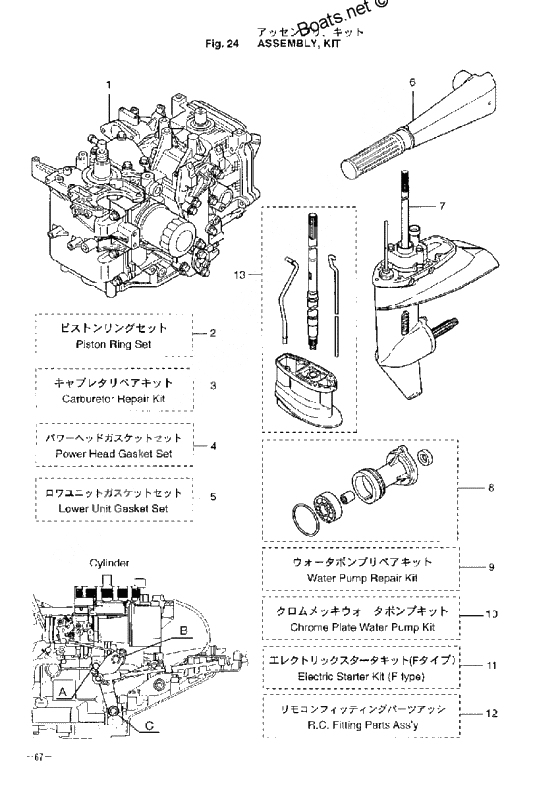

Assembly kit для Tohatsu MFS9.9C - 2011 года выпуска
-
№АртикулНазвание
-
13BJB87090-0 Engine short block f15c/f20cEngine short block f15c/f20c
-
3BJB87090-3 Engine short block f15c/f20cEngine short block f15c/f20c
-
13V9-07402-1 Gasket oil panGasket oil pan
-
23BJ-87123-0 Piston ring set std f15c/f20cPiston ring set std f15c/f20c
-
23AC-00011-0 Top ringTop ring
-
23AC-00012-0 2-nd ring2-nd ring
-
23AC-00013-0 3-d ring3-d ring
-
33V1-03116-0 O-RingO-Ring
-
3922503-6410 Stud BoltStud Bolt
-
33FS-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
33V1-03147-1 Float ValveFloat Valve
-
3921703-0406 Stud BoltStud Bolt
-
33C8-03126-0 Float Arm PinFloat Arm Pin
-
33V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
33C8-03125-0 FloatFloat
-
3922503-6412 Stud BoltStud Bolt
-
33AA-03193-0 Drain screw gasket
, for Diaphragm CoverDrain screw gasket
, for Diaphragm Cover -
33V1-03193-0 O-RingO-Ring
-
33BJ-02234-0 Fuel FilterFuel Filter
-
33AA-03182-0 Carburetor cover gasketCarburetor cover gasket
-
43BJ-87121-0 Power Head Gasket SetPower Head Gasket Set
-
4345-62415-0 O-RingO-Ring
-
43R3-07432-1 GascketGascket
-
43BJ-01005-0 Gasket cylinder head f15c/f20cGasket cylinder head f15c/f20c
-
43H8-07639-0 O-ring Oil PumpO-ring Oil Pump
-
43R3-00121-0 Oil Seal, 32-44-9Oil Seal, 32-44-9
-
43BJ-01024-0 Cylinder head cover gasketCylinder head cover gasket
-
43H8-07635-0 O-RingO-Ring
-
43BJ-00121-0 Oil seal 36-50-7Oil seal 36-50-7
-
43R0-07422-0 New partNew part
-
43H8-07632-0 O-RingO-Ring
-
43BJ-02104-0 Gasket intake manifoldGasket intake manifold
-
43R3-02305-0 Exhaust CoverExhaust Cover
-
43H8-07631-0 O-RingO-Ring
-
43BJ-02011-0 Gasket carburetorGasket carburetor
-
4346-01032-0 New partNew part
-
43H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
43BJ-02419-0 Seal ring 2.4-35Seal ring 2.4-35
-
43R3-01144-0 O-RingO-Ring
-
5362-02312-2 GasketGasket
-
5332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
5121-32071-0 O-RingO-Ring
-
5346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
5332-60223-0 Oil SealOil Seal
-
5336-62415-0 O-RingO-Ring
-
5332-66021-0 O-RingO-Ring
-
5398-87321-2 Lower unit seal kit 9.9/15bLower unit seal kit 9.9/15b
-
398-87321-3 Lower unit seal kit 9.9/15bLower unit seal kit 9.9/15b
-
63V9-72019-0 Label,ThrottleLabel,Throttle
-
63R3-63041-0 Throttle ShaftThrottle Shaft
-
63BJQ63003-0 Tiller handle assy
Old Parts No. 3R3Q63003-0Tiller handle assy
Old Parts No. 3R3Q63003-0 -
3BJQ63005-0 Tiller handle assyTiller handle assy
-
6345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
63R3Q63011-0 Tiller handle (amb)Tiller handle (amb)
-
6350-63046-0 BushingBushing
-
6350-67154-0 New partNew part
-
63B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
63B2-63104-1 Stud BoltStud Bolt
-
63B2-63035-1 Friction Piece GripFriction Piece Grip
-
63R3-63012-0 GripGrip
-
63B2-63034-0 Adjust ScrewAdjust Screw
-
73BJQ87301-0 Lower unit assy f15/20c (s)
for Transom S""Lower unit assy f15/20c (s)
for Transom S"" -
3BHQ87301-2 Lower unit assy f15/20c (s)Lower unit assy f15/20c (s)
-
73BJQ87302-0 Lower unit assy (l)
for Transom L""Lower unit assy (l)
for Transom L"" -
3BHQ87302-2 Lower unit assy (l)Lower unit assy (l)
-
83BJQ60100-0 Propeller shaft housing assyPropeller shaft housing assy
-
3BJQ60100-1 Propeller shaft housing assyPropeller shaft housing assy
-
9350-65011-1 New partNew part
-
9350-65025-0 New partNew part
-
99101E3-5652 Bolt & washer
, or 910113-5652Bolt & washer
, or 910113-5652 -
9362-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
9334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
9350-65022-0 New partNew part
-
10362-65231-0 Chrome Plate Water Pump KitChrome Plate Water Pump Kit
-
10350-65011-1 New partNew part
-
10350-65025-0 New partNew part
-
113BJ-76145-0 Terminal CapTerminal Cap
-
113BJ-76060-0 RectifierRectifier
-
3BJ-76060-1 RectifierRectifier
-
113BJ-76064-0 Bracket fuse holderBracket fuse holder
-
113C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
113R3-76141-0 STARTER CORDSTARTER CORD
-
11309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
113BJ-84398-0 Lead wire band 135Lead wire band 135
-
11910103-5825 BoltBolt
-
113BA-06133-0 Protector (l=180mm)Protector (l=180mm)
-
113BJ-76164-0 Band mountBand mount
-
113AA-76026-0 Main SwitchMain Switch
-
113BJ-76009-0 Band Starter MotorBand Starter Motor
-
113Y0-76145-0 Terminal CapTerminal Cap
-
113Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
11361-76080-0 Нейтральный переключательНейтральный переключатель
-
113C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
113AA-76145-0 Terminal CapTerminal Cap
-
113BJ-76120-0 Battery cable (l=2750 mm)Battery cable (l=2750 mm)
-
113BJ-76040-0 Starter SolenoidStarter Solenoid
-
113V1-76066-0 Fuse WireFuse Wire
-
113BJ-06133-0 Protector (l=320mm)Protector (l=320mm)
-
113BJ-76043-0 Bracket starter solenoidBracket starter solenoid
-
113BJ-76066-0 Fuse cable (l=720mm)Fuse cable (l=720mm)
-
113BJ-76300-0 Electric starter kit (f type)Electric starter kit (f type)
-
12346-67196-1 Rod Snap 3-bRod Snap 3-b
-
123R3Q67482-0 Rc control bracket (aqua marine blue)Rc control bracket (aqua marine blue)
-
12951603-0800 R-PinR-Pin
-
123BJ-66134-0 Rod Shift LeverRod Shift Lever
-
123R3-83910-0 Throttle Lever, Remote ControlThrottle Lever, Remote Control
-
129101E3-5620 Bolt & washerBolt & washer
-
123R3-66129-0 Shift Lever, Remote ControlShift Lever, Remote Control
-
12930103-0500 NutNut
-
123R3-83913-0 Втулка тяги КППВтулка тяги КПП
-
123R3-83820-0 Bracket, CableBracket, Cable
-
123C8-66308-0 New partNew part
-
123BJ-66138-0 Spacer 5-9.5-5Spacer 5-9.5-5
-
123BJ-83914-0 Stopper throttle leverStopper throttle lever
-
129101E3-5616 Bolt & washerBolt & washer
-
12353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
12951503-0212 Split PinSplit Pin
-
123V5Q62001-0 Steering bracket (amb)Steering bracket (amb)
-
123R3-83732-0 Втулка кабеляВтулка кабеля
-
123C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
123BJQ83880-0 R c fitting parts (f9.9/15/18b-15/20c)R c fitting parts (f9.9/15/18b-15/20c)
-
3BJQ83880-3 R c fitting parts (f9.9/15/18b-15/20c)R c fitting parts (f9.9/15/18b-15/20c)
-
123B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
129161E3-1045 BoltBolt
-
916113-1045 BoltBolt
-
123R3-67483-1 Cover, Remote Control BracketCover, Remote Control Bracket
-
123R3-63709-0 Throttle Rod, Remote ControlThrottle Rod, Remote Control
-
123R3-66128-0 Shift Arm, Remote ControlShift Arm, Remote Control
-
123AA-83719-0 WasherWasher
-
129401E3-1000 WasherWasher
-
123BJ-67485-0 Bolt 5-35 (with washer)Bolt 5-35 (with washer)
-
139101E3-5612 Bolt & washerBolt & washer
-
133BJQ87314-0 Extension housing kit ul""Extension housing kit ul""
-
133Z0-65203-0 Lock PlateLock Plate
-
133BJQ61110-0 Extension housing ulExtension housing ul
-
133V1-65204-0 Rubber Mount,13-2.5Rubber Mount,13-2.5
-
133BJ-61111-0 Stud BoltStud Bolt
-
133BJ-65120-0 Water Pipe ULWater Pipe UL
-
133P0-66233-0 New partNew part
-
133BK-64303-0 Drive Shaft ULDrive Shaft UL
-
133BJ-60003-0 Drive shaft bushingDrive shaft bushing
-
133BJ-66014-0 Cam Rod ULCam Rod UL
-
133V1-64332-0 Stopoer,BushingStopoer,Bushing
-
13951407-0312 Spring WasherSpring Washer
