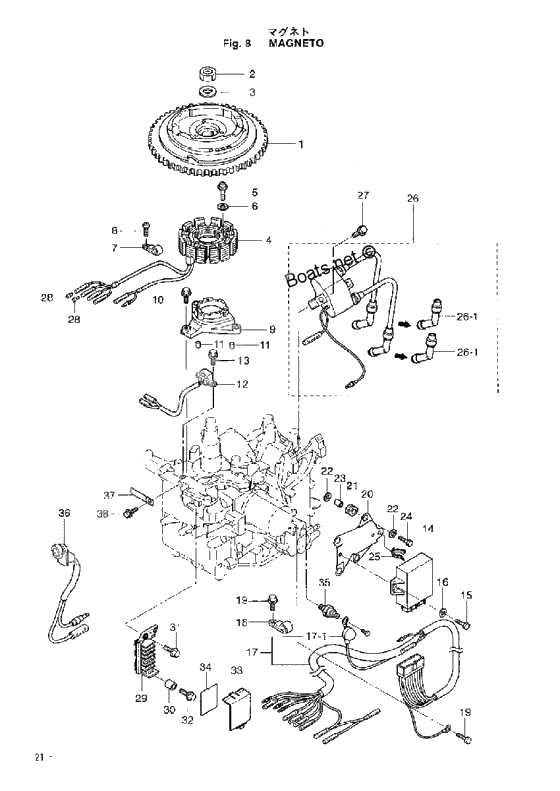

Magneto для Tohatsu MFS9.9C - 2011 года выпуска

№

Артикул

Название
1

3BJ-06191-0 Flywheel cup (with ring gear)

Flywheel cup (with ring gear)

24 840 ₽
2

931121-1600 Nut

Nut

330 ₽
3

3H8-00133-0 Washer

Washer

190 ₽
4

3BJ-06023-0 Alternator

Alternator

11 440 ₽
5

921503-6630 Stud Bolt

Stud Bolt

140 ₽
6

940203-0600 Washer

Washer

90 ₽
7

345-06915-0 Clamp 6.5-14

Clamp 6.5-14

370 ₽
9

3V6-06008-0 Coil bracket

Coil bracket

2 370 ₽
10

3AD-06864-0 Bolt 6-25 pre-coated

Bolt 6-25 pre-coated

200 ₽
11

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12

170 ₽
12

3BJ-06071-0 Pulser coil

Pulser coil

3 820 ₽
13

910103-5514 Bolt

Bolt

120 ₽
14

3BJ-06060-0 C.d. ignition unit (cu7275)

C.d. ignition unit (cu7275)

18 030 ₽
3BJ-06060-1 C.d. ignition unit (cu7275)

C.d. ignition unit (cu7275)

20 770 ₽
15

3V1-60108-0 Bolt,6-16 Pre Coated

Bolt,6-16 Pre Coated

190 ₽
16

3C8-66308-0 New part

New part

140 ₽
17

3BJ-06167-0 Cord assy c.d. unit

Cord assy c.d. unit

10 090 ₽
17-1

3H6-07612-0 Grommet, oil pressure switch

Grommet, oil pressure switch

280 ₽
20

3BJ-06061-0 Bracket c.d. unit

Bracket c.d. unit

2 130 ₽
21

3AC-06920-0 Rubber Mount

Rubber Mount

210 ₽
23

3BJ-06303-0 Collar 6.2-9-8.7

Collar 6.2-9-8.7

290 ₽
25

3BJ-84398-0 Lead wire band 135

Lead wire band 135

250 ₽
26

3BJ-06040-0 Ignition Coil

Ignition Coil

6 940 ₽
26-1

3AC-06999-0 Plug cap (with resistance)

Plug cap (with resistance)

1 750 ₽
28

3A3-76037-0 Plug B Cable Terminal
7 for MF, 4 for EF, 2 for EP

Plug B Cable Terminal
7 for MF, 4 for EF, 2 for EP

140 ₽
29

3BJ-06281-0 Cable terminal holder
with Collar

Cable terminal holder
with Collar

910 ₽
3BJ-06281-1 Cable terminal holder

Cable terminal holder

1 530 ₽
30

174-35012-0 Collar 6-8-6

Collar 6-8-6

320 ₽
31

9101E3-5616 Bolt & washer
Upper or 910113-5616

Bolt & washer
Upper or 910113-5616

320 ₽
32

9101E3-5612 Bolt & washer
Lower or 910113-5612

Bolt & washer
Lower or 910113-5612

170 ₽
33

3BJ-06902-0 Terminal holder cover

Terminal holder cover

880 ₽
34

3BJ-72028-0 Decal wring diagram (mf/ef)
for MF, EF

Decal wring diagram (mf/ef)
for MF, EF

500 ₽
34

3BK-72028-0 Decal wiring diagram (ep)
for EP

Decal wiring diagram (ep)
for EP

490 ₽
35

3H6-07611-0 Switch, Oil Pressure

Switch, Oil Pressure

2 010 ₽
36

3R3-71040-0 Pilot Lamp Ass'y

Pilot Lamp Ass'y

2 270 ₽
37

398-06972-0 Clamp,6.5-67P

Clamp,6.5-67P

200 ₽
38

9101E3-5612 Bolt & washer
or 910113-5612

Bolt & washer
or 910113-5612

170 ₽
