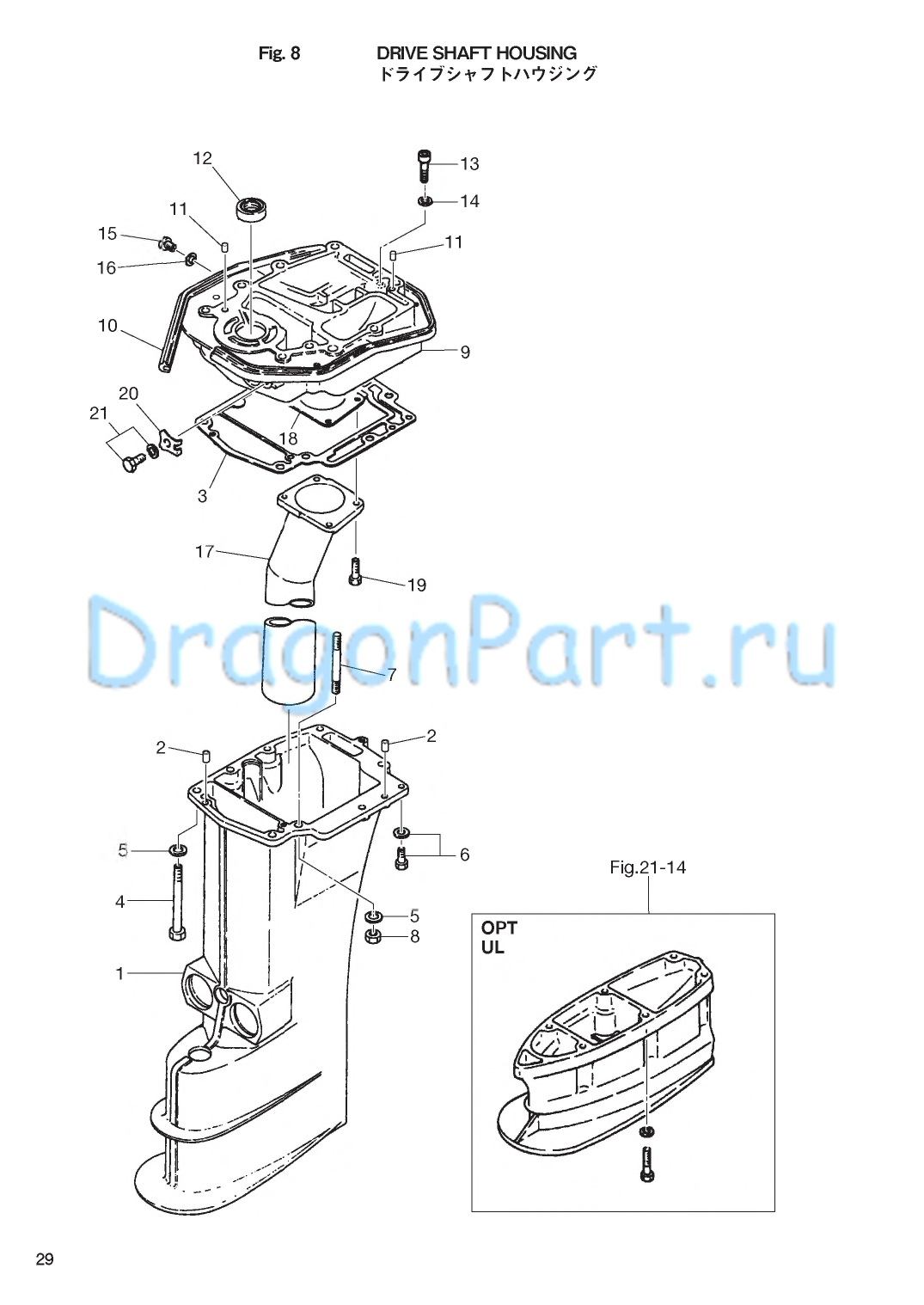

DRIVE SHAFT HOUSING для Tohatsu M40C - 2012 года выпуска
-
№АртикулНазвание
-
1345Q61020-2 DRIVE SHAFT HOUSING (S)
for Transom "S"DRIVE SHAFT HOUSING (S)
for Transom "S" -
1361Q61030-1 DRIVE SHAFT HOUSING (L)
for Transom "L"DRIVE SHAFT HOUSING (L)
for Transom "L" -
2345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
3345-61012-1 DRIVE SHAFT HOUSING GASKETDRIVE SHAFT HOUSING GASKET
-
49161E3-0885 BOLT
for Transom "S"BOLT
for Transom "S" -
49161E3-0885 BOLT
for Transom "L"BOLT
for Transom "L" -
53P0-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
69101E3-5620 BOLTBOLT
-
7345-61111-1 STUD
for Transom "S"STUD
for Transom "S" -
8930103-0800 NUT
for Transom "S"NUT
for Transom "S" -
9345Q01301-0 ENGINE BASEMENTENGINE BASEMENT
-
10345-67116-0 ENGINE BASEMENT SEALENGINE BASEMENT SEAL
-
11345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
12345-01215-0 OIL SEAL 17-30-8OIL SEAL 17-30-8
-
13910203-0640 BOLT
Hexagon Head Cap ScrewBOLT
Hexagon Head Cap Screw -
14941303-0600 SPRING WASHERSPRING WASHER
-
159106E3-0808 BOLTBOLT
-
16332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
17345-02314-2 EXHAUST PIPE
for Transom "S"EXHAUST PIPE
for Transom "S" -
17361-02311-1 EXHAUST PIPE
for Transom "L"EXHAUST PIPE
for Transom "L" -
18345-02312-1 EXHAUST PIPE GASKETEXHAUST PIPE GASKET
-
199101E3-5625 BOLTBOLT
-
20345-61312-1 RUBBER MOUNT RETAINERRUBBER MOUNT RETAINER
-
219101E3-5820 BOLTBOLT
