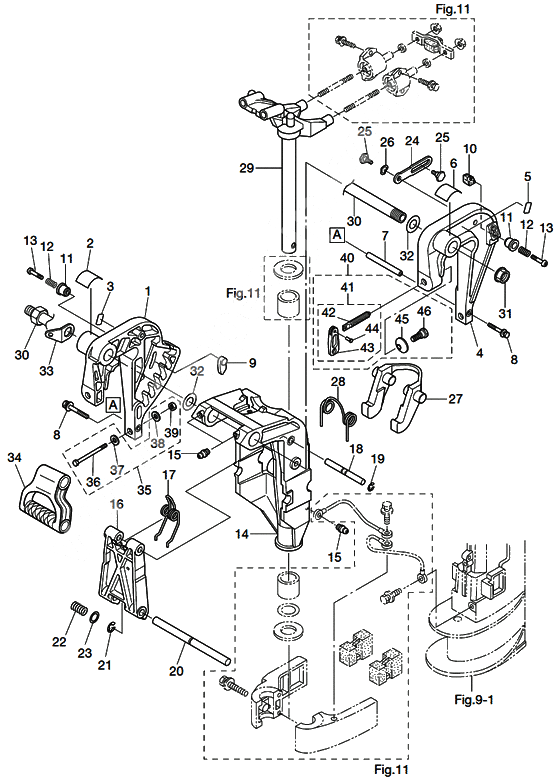

Bracket (ep model) для Tohatsu MFS8A3 - 2012 года выпуска
-
№АртикулНазвание
-
13AAQ62112-1 Stern bracket right (amb) p type
STERN BRACKET / STARBOARD SIDEStern bracket right (amb) p type
STERN BRACKET / STARBOARD SIDE -
23AA-84461-0 Trim Position DecalTrim Position Decal
-
33AA-67589-0 Lower Tilt Limit DecalLower Tilt Limit Decal
-
43AAQ62113-1 Stern bracket left (amb) p type
STERN BRACKET / PORT SIDEStern bracket left (amb) p type
STERN BRACKET / PORT SIDE -
53AA-67584-0 Tilt Lock DecalTilt Lock Decal
-
63AA-72049-0 Co-Pilot Decal
FOR EFTCo-Pilot Decal
FOR EFT -
73AA-62117-0 Distance PieceDistance Piece
-
89101E3-5640 Bolt & washerBolt & washer
-
93AA-62163-0 Setting Plate,TrimSetting Plate,Trim
-
103AA-62164-0 Tilt Lock PieceTilt Lock Piece
-
113AA-62463-0 KnobKnob
-
123Y0-66112-0 SpringSpring
-
13921503-0535 Stud BoltStud Bolt
-
143AAQ62310-1 Swivel bracket (amb)Swivel bracket (amb)
-
15344-67177-1 Grease Nipple
FOR EP & EFT/EPTGrease Nipple
FOR EP & EFT/EPT -
163AA-62994-0 Tilt Stopper BodyTilt Stopper Body
-
173AA-62434-0 Spring WasherSpring Washer
-
183AA-62995-0 Tilt Stpper Shaft(Upper)Tilt Stpper Shaft(Upper)
-
19945303-0600 E-RingE-Ring
-
203AA-62996-1 Tilt Stopper Shaft LowerTilt Stopper Shaft Lower
-
21945303-0900 E-RingE-Ring
-
223AA-63727-0 Spring WasherSpring Washer
-
23332-61315-0 WasherWasher
-
243AA-62454-0 Tilt StopperTilt Stopper
-
253AA-62452-0 BoltBolt
-
26941403-1000 WasherWasher
-
273AA-66322-1 Reverse LockReverse Lock
-
283AA-66315-0 Spring,Reverse LockSpring,Reverse Lock
-
293AAQ62010-0 Steering shaft (amb)
FOR EP & EFT/EPTSteering shaft (amb)
FOR EP & EFT/EPT -
303AC-62191-0 Swivel bracket bolt
BRACKET BOLT / FOR EP & EFT/EPTSwivel bracket bolt
BRACKET BOLT / FOR EP & EFT/EPT -
31346-62124-1 Bracket nut
FOR EP & EFT/EPTBracket nut
FOR EP & EFT/EPT -
323AA-62116-0 Washer
NYLON / FOR EP & EFT/EPTWasher
NYLON / FOR EP & EFT/EPT -
333AA-62114-1 Plate
FOR EP & EFT/EPTPlate
FOR EP & EFT/EPT -
3AA-62114-0 PlatePlate
-
343AA-61199-0 Carrying Handle
FOR EP & EPTCarrying Handle
FOR EP & EPT -
353V1-72120-0 Rigging bolt setRigging bolt set
-
369101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
379401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
383Z0-61334-0 Washer 8.5-34-3Washer 8.5-34-3
-
39930403-0800 Nylon NutNylon Nut
-
403AAQ62105-0 Clamp screw kit (w/pad & bolt)Clamp screw kit (w/pad & bolt)
-
413AAQ62108-0 Clamp screw assy (no pad)Clamp screw assy (no pad)
-
423AA-62106-0 Clamp screwClamp screw
-
43332Q62102-1 Handle clamp screwHandle clamp screw
-
443C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
45332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
463C8-62107-0 Shoulder boltShoulder bolt
