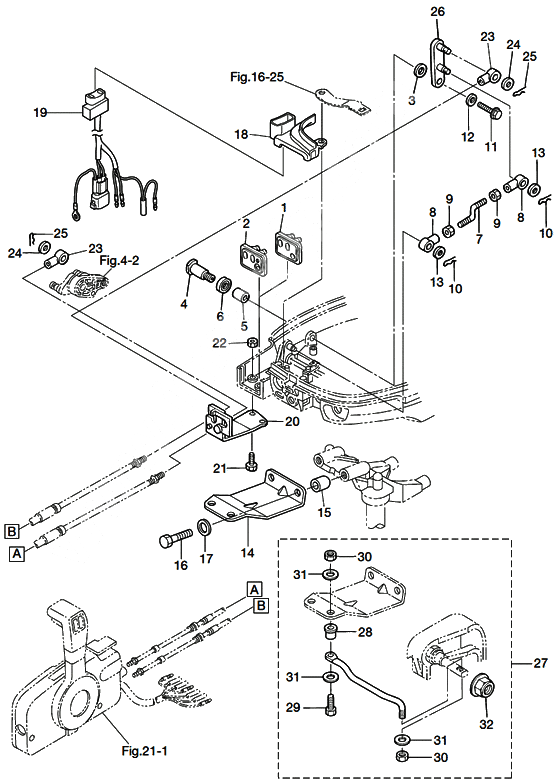

Remote control parts для Tohatsu MFS8A3 - 2012 года выпуска
-
№АртикулНазвание
-
13V1-83732-0 Grommet
FOR EPGrommet
FOR EP -
23V2-83732-0 Grommet
FOR EPTGrommet
FOR EPT -
3941403-1400 New partNew part
-
43V1-66142-0 PivotPivot
-
5369-67105-0 BushingBushing
-
6338-67147-0 New partNew part
-
73V1-66134-0 Rod,Shift LeverRod,Shift Lever
-
83R0-83715-0 Cable Joint
ROD ENDCable Joint
ROD END -
9930103-0500 NutNut
-
10951603-0800 R-Pin
ROD ENDR-Pin
ROD END -
119101E3-5612 Bolt & washerBolt & washer
-
12346-67115-0 WasherWasher
-
133AA-83719-0 Washer
ROD ENDWasher
ROD END -
143AA-83830-0 Steering Hook PlateSteering Hook Plate
-
153AA-83913-0 Collar 10.1-20-15Collar 10.1-20-15
-
169161E3-1045 BoltBolt
-
916113-1045 BoltBolt
-
179401E3-1000 WasherWasher
-
183V1Q67483-0 Remote cable stay cover
FOR EPTRemote cable stay cover
FOR EPT -
193V2-72615-0 Ptt switch assy
FOR EPTPtt switch assy
FOR EPT -
203V1-83820-0 Cable ClipCable Clip
-
219101E3-0616 BoltBolt
-
910103-0616 BoltBolt
-
229301E3-0600 NutNut
-
930103-0600 NutNut
-
233B7-83715-1 Cable Joint
CABLE ENDCable Joint
CABLE END -
3B7-83715-2 Cable JointCable Joint
-
243AA-83719-0 Washer
CABLE ENDWasher
CABLE END -
25951603-0800 R-Pin
CABLE ENDR-Pin
CABLE END -
263V2-66128-0 Shift Arm
MARK 3V2Shift Arm
MARK 3V2 -
273AA-84905-0 Drag Link J""Drag Link J""
-
283E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
293C8-84964-0 Bolt 3/8-35Bolt 3/8-35
-
30353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
31353-84916-0 WasherWasher
-
323F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
