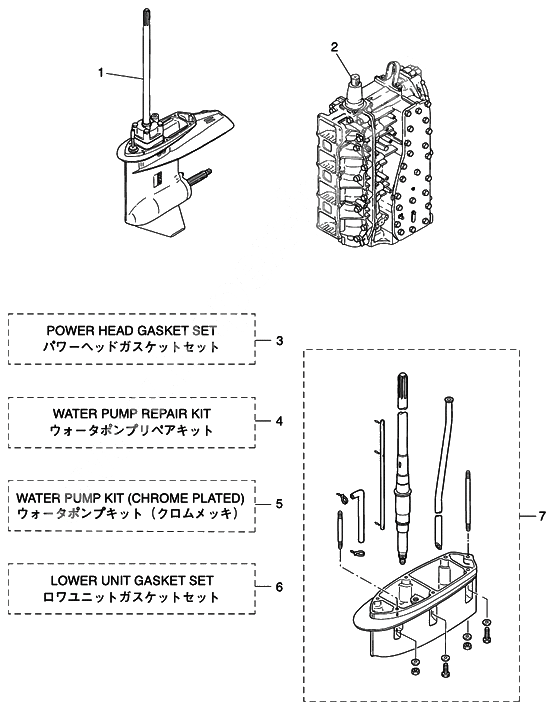

Assembly & kit parts для Tohatsu MD115A2 - 2013 года выпуска
-
№АртикулНазвание
-
13C7Q87302-A Lower unit (l)
FOR TRANSOM LLower unit (l)
FOR TRANSOM L -
3C7Q87302-9 Lower unit (l)Lower unit (l)
-
23HKB87090-1 Engine short block d115a2Engine short block d115a2
-
33T1-87121-9 Power Head Gasket SetPower Head Gasket Set
-
3T1-87121-3 Power Head Gasket SetPower Head Gasket Set
-
33T1-01005-0 Gasket cylinder headGasket cylinder head
-
33T1-01024-0 Gasket cylinder head coverGasket cylinder head cover
-
33T9-01032-1 Gasket thermostat capGasket thermostat cap
-
33C7-02305-1 Gasket exhaust coverGasket exhaust cover
-
3171-00053-0 O-Ring
CRANKCASE HEADO-Ring
CRANKCASE HEAD -
33T9-00121-0 Oil Seal,35-58-9
CRANKSHAFT (LOWER)Oil Seal,35-58-9
CRANKSHAFT (LOWER) -
33C7-01215-0 Oil Seal, 19.6-35-10
DRIVE SHAFTOil Seal, 19.6-35-10
DRIVE SHAFT -
33C7-02104-1 Gasket inlet manifoldGasket inlet manifold
-
3346-04901-2 Gasket
FUEL PUMPGasket
FUEL PUMP -
33T1-02245-0 Gasket air chamber coverGasket air chamber cover
-
33T1-00121-0 Oil seal 35-58-9
CRANKSHAFT (UPPER)Oil seal 35-58-9
CRANKSHAFT (UPPER) -
33C7-01403-0 O-Ring
COIL BRACKETO-Ring
COIL BRACKET -
33T1-10104-0 Gasket throttle bodyGasket throttle body
-
33B7-02235-0 O-Ring A
OIL FILTERO-Ring A
OIL FILTER -
33B7-02236-0 O???? b
OIL FILTERO???? b
OIL FILTER -
33C8-71016-0 Gasket 36-52-2
OIL FILLER CAPGasket 36-52-2
OIL FILLER CAP -
33C7-01303-5 Gasket engine baseGasket engine base
-
43C7-87322-2 Water pump repair kitWater pump repair kit
-
3C7-87322-1 Water pump repair kitWater pump repair kit
-
43C7-65021-1 Impeller water pumpImpeller water pump
-
43B7-65022-1 Impeller keyImpeller key
-
3B7-65022-0 Impeller keyImpeller key
-
43C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
43C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
43C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
43C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
49161E3-0885 BoltBolt
-
4940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
53C7-65231-1 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
3C7-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
53C7-65021-1 Impeller water pumpImpeller water pump
-
53C7-65238-0 Liner chrome plated water pump case
CHROME PLATEDLiner chrome plated water pump case
CHROME PLATED -
53C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
53C7-65239-1 Guide plate chrome plated water pump
CHROME PLATEDGuide plate chrome plated water pump
CHROME PLATED -
3C7-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
53C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
63C7-87321-2 Lower Unit Gasket SetLower Unit Gasket Set
-
63C7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
63C7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
63B7-61181-2 GasketGasket
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
63B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
63C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
63C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
63C7-60223-1 Oil seal, 22-42-7
PUMP CASE (LOWER)Oil seal, 22-42-7
PUMP CASE (LOWER) -
6346-64084-0 Shim, 35-41.9-0.5
PUMP CASE OIL SEALShim, 35-41.9-0.5
PUMP CASE OIL SEAL -
63B7-65015-0 O-Ring
PUMP CASE (LOWER)O-Ring
PUMP CASE (LOWER) -
6345-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
63B7-66023-0 O-Ring
CAM ROD BUSHINGO-Ring
CAM ROD BUSHING -
63B7-60103-0 O-Ring
PROPELLER SHAFT HOUSINGO-Ring
PROPELLER SHAFT HOUSING -
63B7-60111-0 Oil seal, 30-50-12
PROPELLER SHAFTOil seal, 30-50-12
PROPELLER SHAFT -
63B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
73C7Q87314-2 Extension housing kit ul (amb)
FOR TRANSOM L ->ULExtension housing kit ul (amb)
FOR TRANSOM L ->UL -
73B7Q61110-0 Extension housing ul (amb)Extension housing ul (amb)
-
73T1-60001-1 Bolt 8-35Bolt 8-35
-
73B7-60001-5 BoltBolt
-
73B7-61112-1 Stud BoltStud Bolt
-
3B7-61112-0 Stud BoltStud Bolt
-
79153E3-0825 Stud BoltStud Bolt
-
79401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
7930103-0800 NutNut
-
79402E3-1000 WasherWasher
-
73B7-61114-0 NutNut
-
798AL-4-0920 Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
73C7-64303-3 Drive Shaft ULDrive Shaft UL
-
73B7-66014-1 Cam Rod ULCam Rod UL
-
73C7-65120-0 Water Pipe ULWater Pipe UL
-
7951403-3510 New partNew part
-
7951403-3516 New partNew part
-
7353-84398-0 Band Lead WireBand Lead Wire
