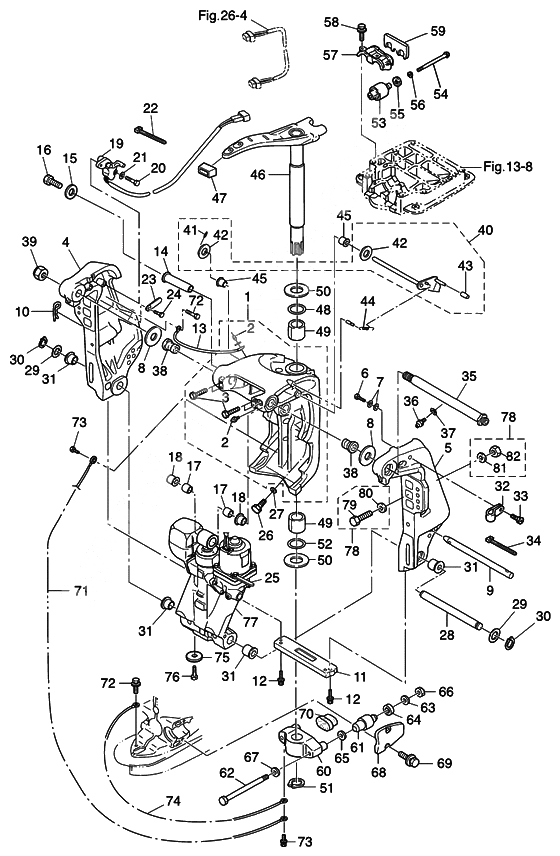

Bracket для Tohatsu MD115A2 - 2013 года выпуска
-
№АртикулНазвание
-
13E0Q62313-3 Swivel bracket assySwivel bracket assy
-
2344-67177-1 Grease NippleGrease Nipple
-
39101E3-5612 Bolt & washerBolt & washer
-
43E0Q62112-0 Stern bracket r (amb)
STARBOARD SIDEStern bracket r (amb)
STARBOARD SIDE -
53E0Q62113-1 Stern bracket l (amb)
PORT SIDEStern bracket l (amb)
PORT SIDE -
69102E3-1020 BoltBolt
-
910203-1020 BoltBolt
-
79402E3-1000 WasherWasher
-
83E0-62116-1 WasherWasher
-
93E0-62121-1 Thrust RodThrust Rod
-
103B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
113C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
12910103-6630 BoltBolt
-
13398-62396-1 Ground Wire
SWIVEL BRACKET-CLAMP BRACKETGround Wire
SWIVEL BRACKET-CLAMP BRACKET -
143C8-77071-1 Cylinder pin upperCylinder pin upper
-
3C8-77071-0 Cylinder pin upperCylinder pin upper
-
15345-05122-1 Washer rachetWasher rachet
-
169101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
173C8-77075-0 New partNew part
-
183E0-77076-0 BushingBushing
-
193T1-72574-0 Trim sender (2-wire)Trim sender (2-wire)
-
209101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
213R0-66308-0 WasherWasher
-
22353-84398-0 Band Lead WireBand Lead Wire
-
23309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
24910103-0612 New partNew part
-
25309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
263B7-77085-1 Bolt 12-20Bolt 12-20
-
27940103-1200 WasherWasher
-
283E0-77101-1 Cylinder pin lowerCylinder pin lower
-
29346-62412-1 WasherWasher
-
30945103-2200 ClipClip
-
313E0-77103-0 BushingBushing
-
32345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
33921503-5612 Stud BoltStud Bolt
-
343T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
353E0-62191-1 Bracket Bolt Ass'yBracket Bolt Ass'y
-
36344-67177-1 Grease NippleGrease Nipple
-
37940103-0600 WasherWasher
-
383E0-62126-0 Bushing Bracket BoltBushing Bracket Bolt
-
39346-62124-1 Bracket nutBracket nut
-
403Y9-62431-1 Tilt stopper assyTilt stopper assy
-
41951403-3516 New partNew part
-
423T1-61315-0 WasherWasher
-
433Y9-62433-0 Tilt stopper gripTilt stopper grip
-
443E0-62473-1 Spring Tilt StopperSpring Tilt Stopper
-
45353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
463C7Q62010-1 Steering shaft (amb)Steering shaft (amb)
-
473B7-62096-0 Damper Rubber BDamper Rubber B
-
483B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
493B7-62417-0 BushingBushing
-
503B7-62423-1 Thrust PlateThrust Plate
-
51945103-3200 C-RingC-Ring
-
523B7-62415-0 O-RingO-Ring
-
533C7-61301-0 Upper,Mount RubberUpper,Mount Rubber
-
543C7-61307-2 Bolt upper mount rubberBolt upper mount rubber
-
3C7-61307-1 Bolt upper mount rubberBolt upper mount rubber
-
553C7-61338-0 Damper RubberDamper Rubber
-
563C7-61335-0 WasherWasher
-
573C7-61341-1 Cap Upper Mount RubberCap Upper Mount Rubber
-
3C7S61341-1 Cap Upper Mount RubberCap Upper Mount Rubber
-
589101E3-5835 Bolt & washerBolt & washer
-
593C7-61339-0 Damper Upper Mount RubberDamper Upper Mount Rubber
-
603C7Q61411-2 Mount bracketMount bracket
-
61353-61302-2 Lower Mount RubberLower Mount Rubber
-
62353-61321-3 BoltBolt
-
63353-61334-0 WasherWasher
-
643C7-61338-0 Damper RubberDamper Rubber
-
65353-61315-1 WasherWasher
-
663B7-61324-0 NutNut
-
679402E3-1200 WasherWasher
-
683B7Q61342-0 Cap lower mount rubber (amb)Cap lower mount rubber (amb)
-
693N4-61343-0 Bolt,8-25Bolt,8-25
-
703C7-61336-0 Damper RubberDamper Rubber
-
713C8-62396-1 Ground Wire
MOUNT BRACKET-SWIVEL BRACKETGround Wire
MOUNT BRACKET-SWIVEL BRACKET -
729101E3-5612 Bolt & washerBolt & washer
-
73910103-5612 BoltBolt
-
743A3-62396-1 New part
MOUNT BRACKET-DRIVE SHAFT HOUSINGNew part
MOUNT BRACKET-DRIVE SHAFT HOUSING -
75369-60218-1 New partNew part
-
76910103-5616 BoltBolt
-
773T1-77150-1 Power trim & tilt assy d115
SEE FIG.17Power trim & tilt assy d115
SEE FIG.17 -
783C8-72120-0 Rigging bolt setRigging bolt set
-
793C7-62133-2 BoltBolt
-
80353-61334-0 WasherWasher
-
81940103-1200 WasherWasher
-
823C7-62139-1 Nut,P1.25Nut,P1.25
