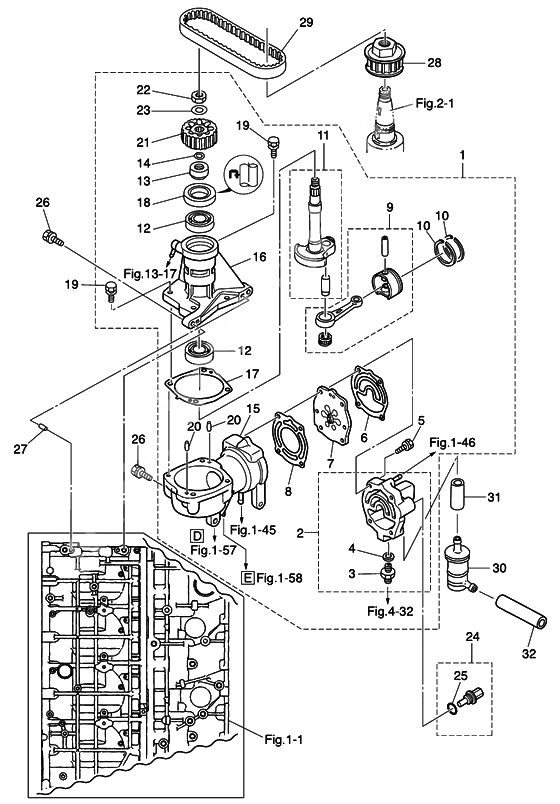

Air compressor для Tohatsu MD90C2 - 2013 года выпуска
-
№АртикулНазвание
-
13FWB10000-1 Air compressor assy d75/90c2Air compressor assy d75/90c2
-
23HKB10009-0 Compressor head (with nipple) d115a2Compressor head (with nipple) d115a2
-
33T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
43T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
59101F4-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
63T1-10012-0 Gasket compressor headGasket compressor head
-
73HK-10010-1 Reed valve assy d75c2/90c2/115a2-air compReed valve assy d75c2/90c2/115a2-air comp
-
83T1-10019-0 Gasket valve seatGasket valve seat
-
93T1-87330-0 Connecting rod air compressor pistonConnecting rod air compressor piston
-
103T1-10025-0 Piston ring compressorPiston ring compressor
-
113T1-87331-1 Crank shaft air compressorCrank shaft air compressor
-
129601-0-6203 Ball BearingBall Bearing
-
133T1-10042-0 Collar 13.5-25-13Collar 13.5-25-13
-
143T5-10046-0 O-RingO-Ring
-
153T1B10048-0 Cylinder compressorCylinder compressor
-
163T1B10049-0 Housing compressorHousing compressor
-
173T1-10054-0 Gasket compressor housingGasket compressor housing
-
183T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
19910103-5625 BoltBolt
-
20334-65012-0 СтопорСтопор
-
213FW-10062-0 Drive Pulley
AIR COMPRESSORDrive Pulley
AIR COMPRESSOR -
22309-00132-0 Nut, MagnetoNut, Magneto
-
233B7-01116-0 WasherWasher
-
243Y9-72514-0 Water Temperature SensorWater Temperature Sensor
-
253G9-66136-0 O-RingO-Ring
-
26910103-5830 BoltBolt
-
27345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
283FW-10060-0 Drive pulley d75/90c2
CRANK SHAFTDrive pulley d75/90c2
CRANK SHAFT -
293FW-10061-0 Drive BeltDrive Belt
-
303GF-10130-0 Air filter md40/50b2/75/90c2/115a2 (tldi)Air filter md40/50b2/75/90c2/115a2 (tldi)
-
3198AT130-060 Hose
AIR COMP-AIR FILTERHose
AIR COMP-AIR FILTER -
3298AT130-140 Hose
AIR FILTERHose
AIR FILTER
