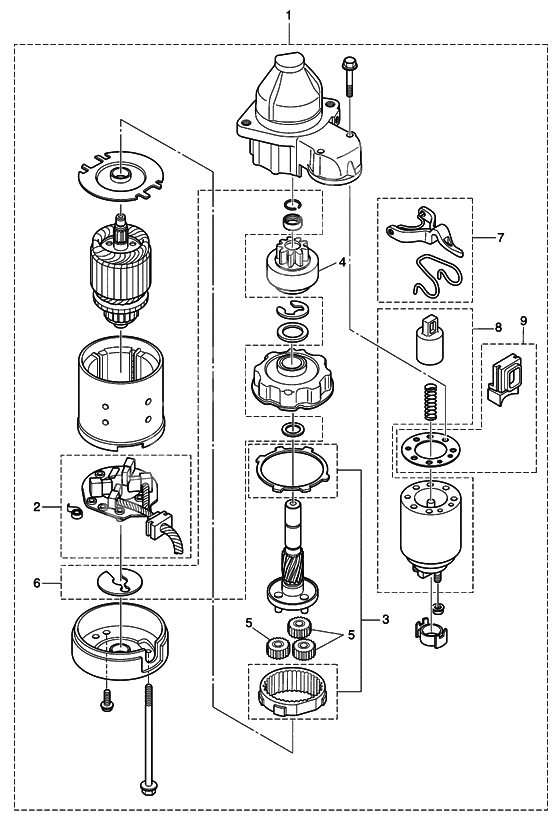

Starter motor (2) для Tohatsu MD90C2 - 2013 года выпуска
-
№АртикулНазвание
-
13FW-76010-0 Starter motor d75/90c2Starter motor d75/90c2
-
23FW-76014-0 Brush HolderBrush Holder
-
33FW-76314-0 Internal gearInternal gear
-
43FW-76015-0 Pinion assyPinion assy
-
53FW-76317-0 Planet gearPlanet gear
-
63FW-76318-0 Washer set starterWasher set starter
-
73FW-76320-0 Shift lever setShift lever set
-
83FW-76321-0 Magnetic switchMagnetic switch
-
93FW-76322-0 Dust cover setDust cover set
