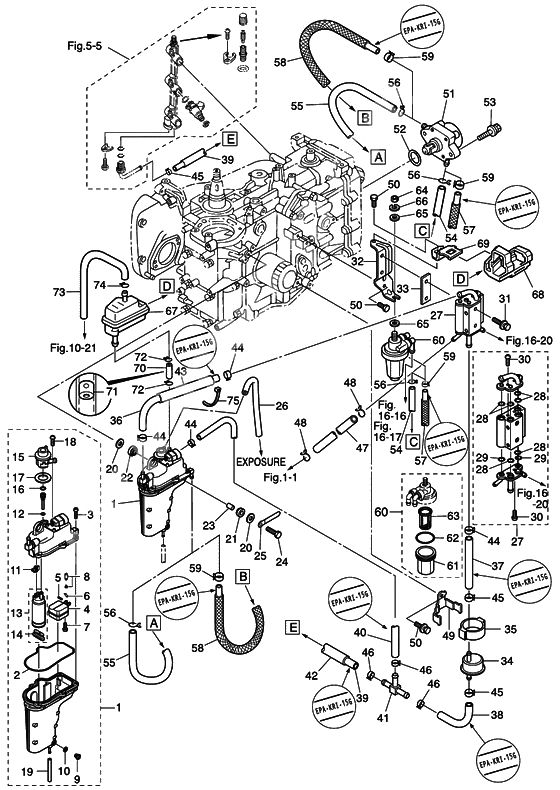

Fuel system для Tohatsu MFS25B - 2013 года выпуска

№

Артикул

Название
1

3AC-10150-0 Vapor separator

Vapor separator

95 800 ₽
2

3AC-03235-0 O-Ring

O-Ring

1 070 ₽
3

921503-6416 Screw

Screw

230 ₽
4

3AC-03230-0 Float

Float

2 550 ₽
5

3F3-03232-0 Arm Pin Float

Arm Pin Float

280 ₽
6

344-03244-0 Clip

Clip

550 ₽
7

921503-0408 Stud Bolt

Stud Bolt

200 ₽
8

3R3-03239-0 Floato Valve Assy
VALVE PIN

Floato Valve Assy
VALVE PIN

2 660 ₽
9

3AC-03292-0 Drain Screw

Drain Screw

1 120 ₽
10

3AC-03116-0 O-ring drain screw

O-ring drain screw

760 ₽
11

3AC-06952-0 Terminal holder

Terminal holder

1 990 ₽
12

3AD-03116-0 O-Ring

O-Ring

370 ₽
13

3AC-04310-0 Fuel feed pump

Fuel feed pump

45 820 ₽
14

3AC-77434-0 Filter

Filter

3 690 ₽
15

3AC-10154-0 Fuel regulator

Fuel regulator

9 640 ₽
16

3AC-10095-0 O-Ring

O-Ring

1 280 ₽
17

3AC-04313-0 Grommet

Grommet

880 ₽
18

3AC-03234-0 Screw

Screw

360 ₽
19

98AB-3-0300 Fuel pipe 3mm (1 ea.=1 meter)
DRAIN / 98AB-301000

Fuel pipe 3mm (1 ea.=1 meter)
DRAIN / 98AB-301000

520 ₽
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)

Fuel pipe 3mm (1 ea.=1 meter)

1 120 ₽
20

346-67115-0 Washer

Washer

320 ₽
21

346-67113-0 Mount Rubber

Mount Rubber

290 ₽
22

3B7-06920-0 Mount Rubber, 8.5-14-2.5

Mount Rubber, 8.5-14-2.5

140 ₽
23

346-67114-1 Spacer

Spacer

260 ₽
346-67114-0 Spacer

Spacer

170 ₽
24

9101E3-0630 Bolt

Bolt

170 ₽
25

3T4-06972-1 Clamp

Clamp

200 ₽
3T4-06972-0 Clamp

Clamp

210 ₽
26

98AB-3-0540 Fuel pipe 3mm (1 ea.=1 meter)
V/SEPARATOR-B/COWL / 98AB-301000

Fuel pipe 3mm (1 ea.=1 meter)
V/SEPARATOR-B/COWL / 98AB-301000

520 ₽
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)

Fuel pipe 3mm (1 ea.=1 meter)

1 120 ₽
27

3AC-10175-0 Fuel cooler

Fuel cooler

39 660 ₽
28

3AC-10046-0 O-Ring

O-Ring

610 ₽
29

3AC-10164-0 O-Ring

O-Ring

560 ₽
30

921503-6410 Stud Bolt

Stud Bolt

120 ₽
31

9101E3-5635 Bolt & washer

Bolt & washer

230 ₽
32

3AC-02239-0 Plate

Plate

1 510 ₽
33

3AC-10019-0 Gasket fuel cooler
FUEL COOLER

Gasket fuel cooler
FUEL COOLER

220 ₽
34

3ACB10143-0 Fuel Filter

Fuel Filter

12 900 ₽
35

3AC-10145-0 Rubber mount fuel filter

Rubber mount fuel filter

630 ₽
36

3AD-02209-0 Low permeation hose
V/SEPARATOR-F/COOLER / EPA-KRI-15G

Low permeation hose
V/SEPARATOR-F/COOLER / EPA-KRI-15G

1 960 ₽
37

3AC-02209-0 Low permeation hose
F/COOLER-HP FUEL FILTER / EPA-KRI-15G

Low permeation hose
F/COOLER-HP FUEL FILTER / EPA-KRI-15G

1 470 ₽
38

3AC-02210-0 Low permeation hose
HP FUEL FILTER-T-NIPPLE / EPA-KRI-15G

Low permeation hose
HP FUEL FILTER-T-NIPPLE / EPA-KRI-15G

1 060 ₽
39

3AL-02210-0 Low permeation hose
T-NIPPLE-FUEL RAIL / EPA-KRI-15G

Low permeation hose
T-NIPPLE-FUEL RAIL / EPA-KRI-15G

3 100 ₽
40

3AD-02210-0 Low permeation hose
V/SEPARATOR-T-NIPPLE / EPA-KRI-15G

Low permeation hose
V/SEPARATOR-T-NIPPLE / EPA-KRI-15G

3 260 ₽
41

3AC-70013-0 T-Nipple
T-NIPPLE

T-Nipple
T-NIPPLE

330 ₽
42

3AD-06157-0 Hose protector
T-NIPPLE-FUEL RAIL

Hose protector
T-NIPPLE-FUEL RAIL

500 ₽
43

3AD-06133-0 Protector @18-130
V/SEPARATOR-F/COOLER

Protector @18-130
V/SEPARATOR-F/COOLER

550 ₽
44

3AC-10087-0 Clamp
FUEL COOLER & V/SEPARATOR

Clamp
FUEL COOLER & V/SEPARATOR

400 ₽
45

3AC-09056-1 Clip
HP FUEL FILTER & FUEL RAIL NIPPLE

Clip
HP FUEL FILTER & FUEL RAIL NIPPLE

270 ₽
3AC-09056-0 Clip

Clip

190 ₽
46

3T5-10086-0 Clamp 21/32
T-NIPPLE (PIPE JOINT)

Clamp 21/32
T-NIPPLE (PIPE JOINT)

660 ₽
47

98AR-50-600 Rubber hose
CYLINDER-FUEL COOLER / 98AR-501000

Rubber hose
CYLINDER-FUEL COOLER / 98AR-501000

610 ₽
48

338-02215-0 Clip
CYLINDER-FUEL COOLER

Clip
CYLINDER-FUEL COOLER

140 ₽
49

3AC-10144-0 Band fuel filter

Band fuel filter

880 ₽
50

9101E3-5616 Bolt & washer
PLATE & FUEL FILTER BAND

Bolt & washer
PLATE & FUEL FILTER BAND

320 ₽
51

3H8-04000-1 Fuel Pump Ass'y

Fuel Pump Ass'y

11 690 ₽
52

3H8-62415-0 O-Ring

O-Ring

120 ₽
53

9101E3-5625 Bolt & washer

Bolt & washer

200 ₽
54

98AB-5-0370 Fuel pipe 5mm (1 ea.=1 meter)
F/FILTER-F/PUMP / STD 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
F/FILTER-F/PUMP / STD 98AB-501000

610 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
55

98AB-5-0600 Fuel pipe 5mm (1 ea.=1 meter)
F/PUMP-V/SEPARATOR / STD 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
F/PUMP-V/SEPARATOR / STD 98AB-501000

610 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
56

338-02215-0 Clip
STD F/PUMP F/FILTER V/SEPARATOR

Clip
STD F/PUMP F/FILTER V/SEPARATOR

140 ₽
57

3AD-02165-0 Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G

Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G

2 810 ₽
58

3AM-02165-0 Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G

Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G

4 430 ₽
59

3AB-35143-0 Clip @ 9.5
USA F/PUMP F/FILTER V/SEPARATOR

Clip @ 9.5
USA F/PUMP F/FILTER V/SEPARATOR

250 ₽
60

3AD-02230-0 Fuel Filter Ass'y

Fuel Filter Ass'y

4 610 ₽
61

3AD-02237-0 Cap

Cap

750 ₽
62

3AD-02235-0 O-Ring

O-Ring

520 ₽
63

3AD-02234-0 Filter

Filter

1 470 ₽
64

930103-0800 Nut

Nut

420 ₽
65

940103-0800 Washer -> 940113-0800

Washer -> 940113-0800

120 ₽
66

941303-0800 Spring Washer

Spring Washer

70 ₽
67

3AC-10320-0 Air vent assy

Air vent assy

1 670 ₽
68

3AC-06302-0 Rubber mount air vent

Rubber mount air vent

1 840 ₽
69

3AC-76174-0 Air vent stay

Air vent stay

410 ₽
70

98AB-5-0040 Fuel pipe 5mm (1 ea.=1 meter)
AIR VENT-V/SEPARATOR / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
AIR VENT-V/SEPARATOR / 98AB-501000

90 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
71

3AD-10170-0 Orifice

Orifice

1 450 ₽
72

338-02215-0 Clip

Clip

140 ₽
73

98AL-4-0620 Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR VENT-EXPOSURE / 98AL-401000

Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR VENT-EXPOSURE / 98AL-401000

660 ₽
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve

Lube pipe (1 ea.=1m) must use 393011600m check valve

570 ₽
74

338-01133-0 Clip

Clip

140 ₽
75

369-84398-0 Band Lead Wire,158

Band Lead Wire,158

210 ₽
