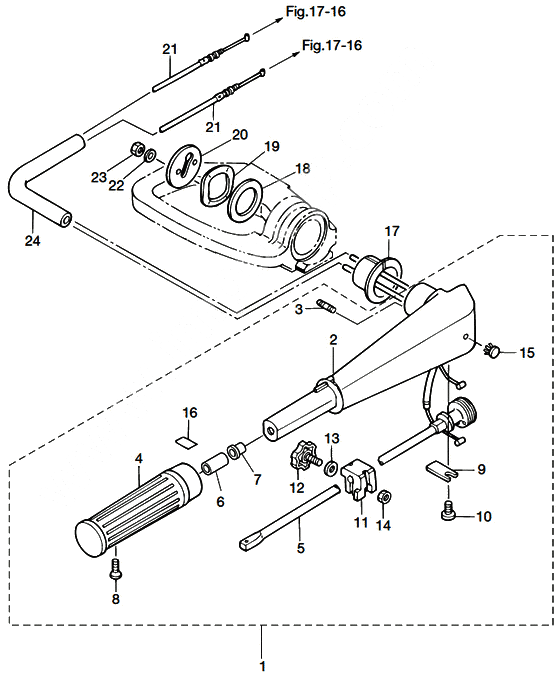

Tiller handle для Tohatsu MFS25B - 2013 года выпуска
-
№АртикулНазвание
-
13ACQ63005-0 Tiller handle assy (amb)Tiller handle assy (amb)
-
23R3Q63011-0 Tiller handle (amb)Tiller handle (amb)
-
33B2-63104-1 Stud BoltStud Bolt
-
43R3-63012-0 GripGrip
-
53R3-63041-0 Throttle ShaftThrottle Shaft
-
6345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
7350-63046-0 BushingBushing
-
8921803-0525 Stud BoltStud Bolt
-
93B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
109215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
113B2-63035-1 Friction Piece GripFriction Piece Grip
-
123B2-63034-0 Adjust ScrewAdjust Screw
-
139401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
149301E3-0600 NutNut
-
930103-0600 NutNut
-
15350-67154-0 New partNew part
-
163AC-72019-0 Throttle decalThrottle decal
-
173R3-63102-0 Bushing, HandleBushing, Handle
-
183R3-63108-0 WasherWasher
-
193R3-63109-0 WasherWasher
-
203R3-63107-0 Plate, Steering HandlePlate, Steering Handle
-
213R0-63600-0 Throttle CableThrottle Cable
-
229401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
239301E3-0600 NutNut
-
930103-0600 NutNut
-
243R0-06157-0 Protection TubeProtection Tube
