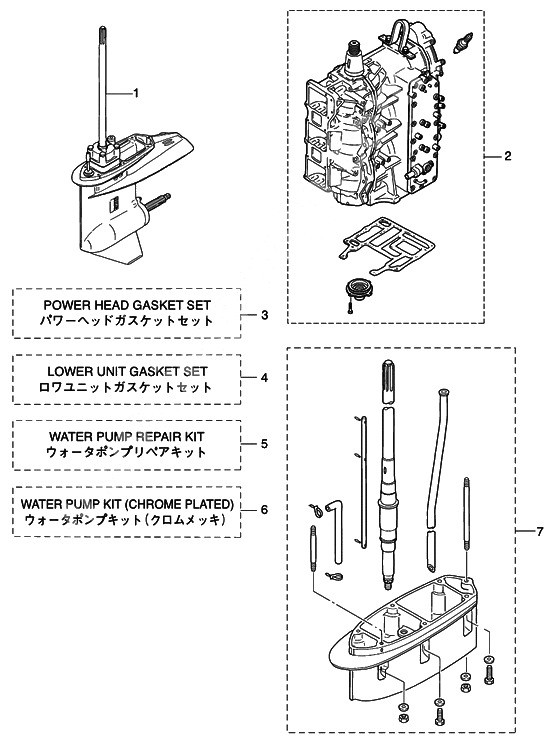

Assembly & kit parts для Tohatsu MD90C2 - 2014 года выпуска
-
№АртикулНазвание
-
13FWQ87302-4 Lower unit assy l d75/90c2 (amb)
FOR TRANSOM LLower unit assy l d75/90c2 (amb)
FOR TRANSOM L -
3FWQ87302-3 Lower unit assy l d75/90c2 (amb)Lower unit assy l d75/90c2 (amb)
-
13FWQ87304-4 Lower unit assy ul d75/90c2 (amb)
FOR TRANSOM ULLower unit assy ul d75/90c2 (amb)
FOR TRANSOM UL -
3FWQ87304-3 Lower unit assy ul d75/90c2 (amb)Lower unit assy ul d75/90c2 (amb)
-
23FWB87090-3 Short block (d75/90c2/tldi)Short block (d75/90c2/tldi)
-
33FW-87121-1 Power Head Gasket SetPower Head Gasket Set
-
3FW-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33T9-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
33T9-01024-0 Gasket,Cylinder Head CoverGasket,Cylinder Head Cover
-
33T9-01032-1 Gasket thermostat capGasket thermostat cap
-
33FW-02305-0 Gasket exhaust coverGasket exhaust cover
-
3171-00053-0 O-Ring
CRANKCASE HEADO-Ring
CRANKCASE HEAD -
33T9-00121-0 Oil Seal,35-58-9
CRANKSHAFT (LOWER)Oil Seal,35-58-9
CRANKSHAFT (LOWER) -
33C7-01215-0 Oil Seal, 19.6-35-10
DRIVE SHAFTOil Seal, 19.6-35-10
DRIVE SHAFT -
33T9-02104-0 Gasket,Inlet ManifoldGasket,Inlet Manifold
-
33T9-02242-0 Gasket,Air BoxGasket,Air Box
-
33FW-02245-0 Gasket air chamber coverGasket air chamber cover
-
3346-04901-2 GasketGasket
-
33B7-02235-0 O-Ring A
OIL FILTERO-Ring A
OIL FILTER -
33B7-02236-0 O???? b
OIL FILTERO???? b
OIL FILTER -
33C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
33B7-01303-4 Gasket engine baseGasket engine base
-
3353-00108-0 O-Ring
CRANKSHAFT (UPPER)O-Ring
CRANKSHAFT (UPPER) -
43T9-87321-2 Lower unit gasket set d70b/d90bLower unit gasket set d70b/d90b
-
43B7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
43B7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
43B7-61181-2 GasketGasket
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
43B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
43C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
43C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
43C7-60223-1 Oil seal, 22-42-7
DRIVE SHAFTOil seal, 22-42-7
DRIVE SHAFT -
4346-64084-0 Shim, 35-41.9-0.5
DRIVE SHAFT OIL SEALShim, 35-41.9-0.5
DRIVE SHAFT OIL SEAL -
43B7-65015-0 O-Ring
PUMP CASE (LOWER)O-Ring
PUMP CASE (LOWER) -
4345-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
43B7-66023-0 O-Ring
CAM ROD BUSHINGO-Ring
CAM ROD BUSHING -
43B7-60103-0 O-Ring
PROPELLER SHAFT HOUSINGO-Ring
PROPELLER SHAFT HOUSING -
43B7-60111-0 Oil seal, 30-50-12
PROPELLER SHAFTOil seal, 30-50-12
PROPELLER SHAFT -
43B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
53C7-87322-2 Water pump repair kitWater pump repair kit
-
3C7-87322-1 Water pump repair kitWater pump repair kit
-
53C7-65021-1 Impeller water pumpImpeller water pump
-
53B7-65022-1 Impeller keyImpeller key
-
3B7-65022-0 Impeller keyImpeller key
-
53C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
53C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
53C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
53C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
59161E3-0885 BoltBolt
-
5940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
63C7-65231-1 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
3C7-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
63C7-65021-1 Impeller water pumpImpeller water pump
-
63C7-65238-0 Liner chrome plated water pump case
CHROME PLATEDLiner chrome plated water pump case
CHROME PLATED -
63C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
63C7-65239-1 Guide plate chrome plated water pump
CHROME PLATEDGuide plate chrome plated water pump
CHROME PLATED -
3C7-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
63C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
73C7Q87314-2 Extension housing kit ul (amb)
FOR TRANSOM L->ULExtension housing kit ul (amb)
FOR TRANSOM L->UL -
73B7Q61110-0 Extension housing ul (amb)Extension housing ul (amb)
-
73T1-60001-1 Bolt 8-35Bolt 8-35
-
73B7-60001-5 BoltBolt
-
73B7-61112-1 Stud BoltStud Bolt
-
3B7-61112-0 Stud BoltStud Bolt
-
79153E3-0825 Stud BoltStud Bolt
-
79401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
7930103-0800 NutNut
-
79402E3-1000 WasherWasher
-
73B7-61114-0 NutNut
-
798AL-4-0920 Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
73C7-64303-3 Drive Shaft ULDrive Shaft UL
-
73B7-66014-1 Cam Rod ULCam Rod UL
-
73C7-65120-0 Water Pipe ULWater Pipe UL
-
7951403-3510 New partNew part
-
7951403-3516 New partNew part
-
7353-84398-0 Band Lead WireBand Lead Wire
