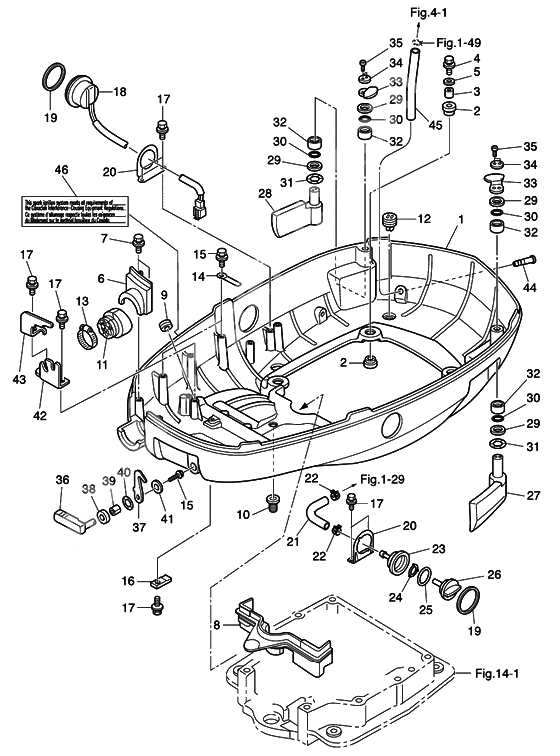

Bottom cowl для Tohatsu MD90C2 - 2014 года выпуска
-
№АртикулНазвание
-
13T1Q67100-2 Lower motor cover d75/90c2d115a (amb)Lower motor cover d75/90c2d115a (amb)
-
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-1 Spacer 8.4-12-17Spacer 8.4-12-17
-
3C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
49101E3-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63KVQ76118-0 ClampClamp
-
7910103-5625 BoltBolt
-
83C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
-
93C7-77156-0 GrommetGrommet
-
10345-66226-0 Grommet, 17-3Grommet, 17-3
-
113T1-76116-1 GrommetGrommet
-
3T1-76116-0 GrommetGrommet
-
123T1-67161-0 GrommetGrommet
-
133R0-02426-0 Clamp,60Clamp,60
-
14398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
15910103-5612 Bolt
CLAMP CABLE CLIP / FRONT HOOKBolt
CLAMP CABLE CLIP / FRONT HOOK -
163C7-72577-0 ClampClamp
-
17910103-5616 Bolt
PTT CLAMP CABLE CLIP / PTT SW BRACKETBolt
PTT CLAMP CABLE CLIP / PTT SW BRACKET -
183AC-72615-0 Ptt switchPtt switch
-
193F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
203T1-72617-0 Bracket ptt switchBracket ptt switch
-
213FW-72410-0 Flushing hose
F/CONNECTOR-EXHAUST COVERFlushing hose
F/CONNECTOR-EXHAUST COVER -
223T1-07737-1 Clip 17.8Clip 17.8
-
3T1-07437-0 Clip 17.8Clip 17.8
-
233T1-72403-0 Flushing connectorFlushing connector
-
243T1-67147-0 Seal ringSeal ring
-
253R0-07422-0 New partNew part
-
263T1-72404-0 Cap flushing connectorCap flushing connector
-
273T1-67680-0 Hook lever assy (left)Hook lever assy (left)
-
283T1-67681-0 Hook lever assy (right)Hook lever assy (right)
-
293T1-63731-0 WasherWasher
-
303T1-62435-0 O-ring 3.5-18O-ring 3.5-18
-
313T1-63109-0 Wave WasherWave Washer
-
323C8-77075-0 New partNew part
-
333T1-67142-0 Cover HookCover Hook
-
343T1-67146-0 WasherWasher
-
35910203-0520 Bolt
HEXAGON CAP BOLTBolt
HEXAGON CAP BOLT -
363R3Q67141-0 Hook leverHook lever
-
373R3-67142-0 Cover HookCover Hook
-
38338-67147-0 New partNew part
-
39332-67105-1 BushingBushing
-
332-67105-0 BushingBushing
-
40941403-1400 New partNew part
-
413R0-66308-0 WasherWasher
-
423FW-83734-0 Cable ClipCable Clip
-
433FW-83735-0 Cable ClipCable Clip
-
443T1-01138-0 Water NippleWater Nipple
-
4598AB-5-0180 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
463C7-72030-0 Label, InterfernceLabel, Interfernce
