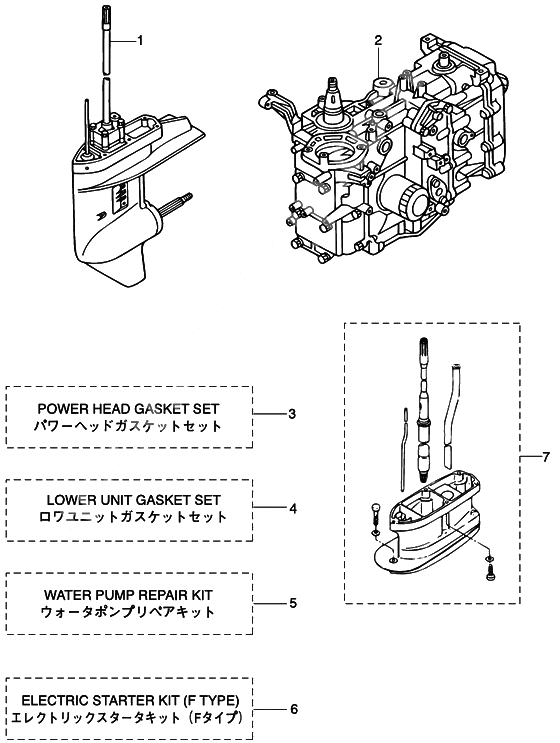

Assembly & kit parts для Tohatsu MFS25B - 2014 года выпуска
-
№АртикулНазвание
-
13AEQ87301-4 Lower unit assy s (f25/30b amb)
FOR TRANSOM SLower unit assy s (f25/30b amb)
FOR TRANSOM S -
13AEQ87302-4 Lower unit assy l (f25/30b)
FOR TRANSOM LLower unit assy l (f25/30b)
FOR TRANSOM L -
13AEQ87304-4 Lower unit assy ul (f25/30b)
FOR TRANSOM ULLower unit assy ul (f25/30b)
FOR TRANSOM UL -
3AEQ87304-2 Lower unit assy ul (f25/30b)Lower unit assy ul (f25/30b)
-
23AGB87090-3 Short block (f25b)
25PSShort block (f25b)
25PS -
33AC-87121-1 Power Head Gasket SetPower Head Gasket Set
-
33R0-01024-0 Gasket,head CoverGasket,head Cover
-
33R0-07422-0 New part
OIL FILLER CAPNew part
OIL FILLER CAP -
33H8-07025-0 Oil Seal,18-35-8
CAMSHAFTOil Seal,18-35-8
CAMSHAFT -
33AD-01005-0 Cylinder head gasketCylinder head gasket
-
3346-01032-0 New partNew part
-
33R3-01144-0 O-RingO-Ring
-
33R0-00122-0 Oil Seal,38-50-8
UPPEROil Seal,38-50-8
UPPER -
33R0-00121-0 Oil Seal.30-50-8
LOWEROil Seal.30-50-8
LOWER -
33AC-02012-0 O-Ring
INSULATORO-Ring
INSULATOR -
33AC-10104-0 Gasket throttle body
THROTTLE BODYGasket throttle body
THROTTLE BODY -
33R0-07639-0 O-ring,Oil Pump OuterO-ring,Oil Pump Outer
-
33R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
3346-01215-0 New part
DRIVE SHAFTNew part
DRIVE SHAFT -
33R0-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
43R0-87321-1 Lower Unit Gasket SetLower Unit Gasket Set
-
3R0-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
4332-60006-0 Gasket (8.1x15.1)
OIL PLUGGasket (8.1x15.1)
OIL PLUG -
4332-60103-0 O-Ring
PROPELLER SHAFT HOUSINGO-Ring
PROPELLER SHAFT HOUSING -
4346-65013-0 Oil' seal, 17-30-9
PUMP CASE (LOWER)Oil' seal, 17-30-9
PUMP CASE (LOWER) -
43AC-60111-0 Oil seal 18-28-5
PROPELLER SHAFTOil seal 18-28-5
PROPELLER SHAFT -
4336-62415-0 O-Ring
PUMP CASE (LOWER)O-Ring
PUMP CASE (LOWER) -
4332-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
43C8-66032-0 O-Ring
CAM ROD BUSHINGO-Ring
CAM ROD BUSHING -
43R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
4348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
53R0-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
5345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
5332-65022-0 Key, pump impellerKey, pump impeller
-
53R0-65011-0 Liner,Pump CaseLiner,Pump Case
-
53R0-65025-0 Guide Plate,Water PumpGuide Plate,Water Pump
-
53R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
5348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
63AD-76300-1 Electric starter kit f-type
FOR MF->EFElectric starter kit f-type
FOR MF->EF -
63C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
6910103-5830 BoltBolt
-
63R0-76009-0 Band,Starter MotorBand,Starter Motor
-
63C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
69101E3-5820 Bolt
BANDBolt
BAND -
910103-5820 BoltBolt
-
63H8-76040-0 Starter SolenoidStarter Solenoid
-
63AA-76026-0 Main SwitchMain Switch
-
6361-76080-0 Нейтральный переключательНейтральный переключатель
-
6398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
63AC-76120-0 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
63AA-76145-0 Terminal CapTerminal Cap
-
63R3-76141-0 STARTER CORDSTARTER CORD
-
63Y1-76145-0 Terminal CapTerminal Cap
-
63Y0-76145-0 Terminal CapTerminal Cap
-
63AC-76065-2 Rectifier (rs27-55) f25/30bRectifier (rs27-55) f25/30b
-
3AC-76065-0 Rectifier (rs27-55) f25/30bRectifier (rs27-55) f25/30b
-
63AC-76066-0 Fuse cableFuse cable
-
73R0Q87314-0 Extension housing kit ul
FOR TRANSOM L->ULExtension housing kit ul
FOR TRANSOM L->UL -
7346Q61110-5 Extension housing ulExtension housing ul
-
79161E3-0835 BoltBolt
-
79161E3-0845 BoltBolt
-
916113-0845 BoltBolt
-
73P0-66233-0 New partNew part
-
7346-64303-5 Drive Shaft ULDrive Shaft UL
-
73R0-65120-0 Water PipeUL""Water PipeUL""
-
73R0-66014-0 Cam Rod UL""Cam Rod UL""
-
7951407-0312 Spring WasherSpring Washer
-
7346-66037-0 Holder Cam RodHolder Cam Rod
