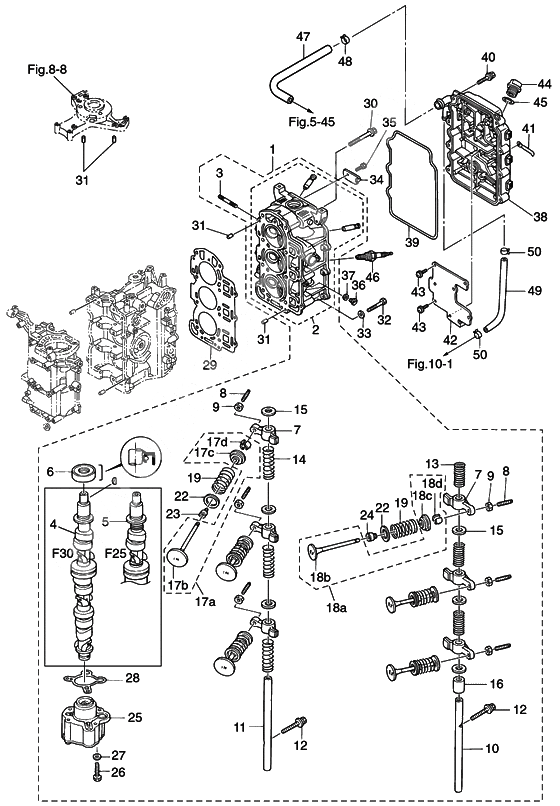

Cylinder head & oil pump для Tohatsu MFS25B - 2014 года выпуска`
-
№АртикулНазвание
-
23ACB01001-1 Cylinder head f25/30bCylinder head f25/30b
-
39153F4-0635 Stud Bolt
CYLINDER HEAD-INTAKE MANIFOLDStud Bolt
CYLINDER HEAD-INTAKE MANIFOLD -
9153F3-0635 Stud BoltStud Bolt
-
43AC-07010-1 Camshaft
30PSCamshaft
30PS -
53AD-07010-1 Camshaft
25PSCamshaft
25PS -
63H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
73AE-07235-0 Rocker armRocker arm
-
83R0-07238-0 Stud BoltStud Bolt
-
93H8-07237-0 NutNut
-
103AE-07220-0 Shaft rocker arm (exhaust)
EXHAUST SIDEShaft rocker arm (exhaust)
EXHAUST SIDE -
113AE-07226-0 Shaft rocker arm (intake)
INTAKE SIDEShaft rocker arm (intake)
INTAKE SIDE -
12910124-5635 BoltBolt
-
133H8-07225-0 Spring Washer
EXHAUST SIDESpring Washer
EXHAUST SIDE -
143H8-07229-0 Spring Washer
INTAKE SIDESpring Washer
INTAKE SIDE -
153R3-07227-0 WasherWasher
-
163H8-07239-0 Collar, Rocker Arm Shaft
EXHAUST SIDECollar, Rocker Arm Shaft
EXHAUST SIDE -
17A3AE-07895-0 Intake Valve
INTAKE SIDEIntake Valve
INTAKE SIDE -
17B3AE-07901-0 Intake ValveIntake Valve
-
17C3AE-07921-0 RetainerRetainer
-
17D3AE-07923-0 CotterCotter
-
18A3AE-07896-0 Exhaust Valve
EXHAUST SIDEExhaust Valve
EXHAUST SIDE -
18B3AE-07902-0 Exhaust ValveExhaust Valve
-
18C3AE-07921-0 RetainerRetainer
-
18D3AE-07923-0 CotterCotter
-
193AE-07203-0 Valve springValve spring
-
223H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
233R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
243R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
253AE-07600-0 Oli pumpOli pump
-
269101F4-0645 BoltBolt
-
910114-0645 BoltBolt
-
279401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
283R0-07639-0 O-ring,Oil Pump Outer
OUTERO-ring,Oil Pump Outer
OUTER -
293AD-01005-0 Cylinder head gasketCylinder head gasket
-
303H8-01013-0 Bolt, Cylinder Head 8-60Bolt, Cylinder Head 8-60
-
31345-01111-0 Dowel Pin 6-12
C/BLOCK-C/HEAD / C/BLOCK-COIL BRACKETDowel Pin 6-12
C/BLOCK-C/HEAD / C/BLOCK-COIL BRACKET -
329161F4-0653 BoltBolt
-
916114-0653 BoltBolt
-
339401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
343R0-01094-0 Plate,Cylinder HeadPlate,Cylinder Head
-
35910121-0612 BoltBolt
-
36332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
37332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
383ACB01020-0 Cylinder head cover f25/30bCylinder head cover f25/30b
-
393R0-01024-0 Gasket,head CoverGasket,head Cover
-
409101F4-5630 BoltBolt
-
9101E3-0630 BoltBolt
-
413T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
-
423R0-07431-0 Plate,BreatherPlate,Breather
-
43921521-5508 Stud BoltStud Bolt
-
443R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
453R0-07422-0 New partNew part
-
469701-1-1103 Spark plug (dcpr6e)
NGKSpark plug (dcpr6e)
NGK -
473AC-07435-0 Breather hose
C/HEAD COVER-I/SILENCERBreather hose
C/HEAD COVER-I/SILENCER -
483R0-07737-1 Clip @15.5-local purchaseClip @15.5-local purchase
-
4998AM120-290 Rubber pipe (290mm/.95ft)
C/HEAD COVER-ENGINE BASERubber pipe (290mm/.95ft)
C/HEAD COVER-ENGINE BASE -
503R0-07737-1 Clip @15.5-local purchaseClip @15.5-local purchase
