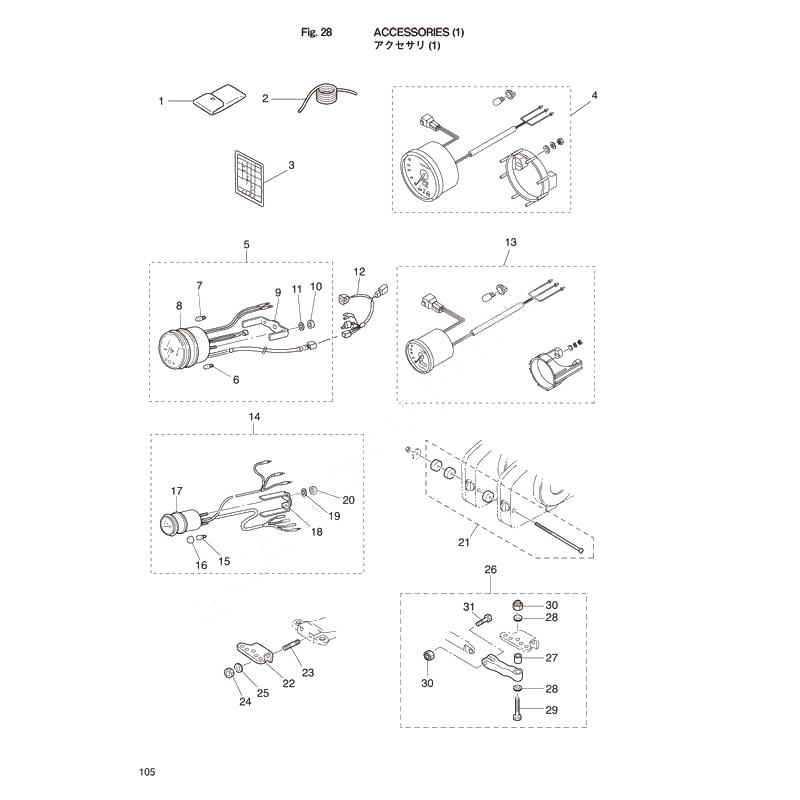

Accessories (1) для Tohatsu MD40B2 - 2015 года выпуска
-
№АртикулНазвание
-
13H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
23B7-72201-0 Rope, 6-1600Rope, 6-1600
-
33T5-72050-0 ラベル ワーニングブザコーションラベル ワーニングブザコーション
-
53Z5-72640-1 Tachometer Ass'y
EPモデルTachometer Ass'y
EPモデル -
63B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
73B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
83B7-72656-0 Damper, MeterDamper, Meter
-
93B7-72661-0 Plate, FittingPlate, Fitting
-
10930203-0500 NutNut
-
11941303-0500 Spring WasherSpring Washer
-
123T5-72537-1 リードワイヤーメータリードワイヤーメータ
-
143T1-72571-0 トリムメーターアッシ
EPモデルトリムメーターアッシ
EPモデル -
153T1-72659-0 Bulb meterBulb meter
-
163T1-72653-0 Cap meter bulbCap meter bulb
-
173B7-72655-0 Damper, MeterDamper, Meter
-
183T1-72665-0 Plate FittingPlate Fitting
-
19941303-0400 Spring WasherSpring Washer
-
20930203-0400 NutNut
-
213A3-81301-0 Twin Remote Control Box Kit
EPモデルTwin Remote Control Box Kit
EPモデル -
223E3-84830-0 Steering Hook Plate
EPモデルSteering Hook Plate
EPモデル -
233E3-62097-0 Stud
EPモデルStud
EPモデル -
243C8-62098-0 ナイロンナット 10P1.25
EPモデルナイロンナット 10P1.25
EPモデル -
259402E3-1000 Washer
EPモデルWasher
EPモデル -
263C8Q84960-0 Crevice Ass'y
EPモデルCrevice Ass'y
EPモデル -
273C8-84962-0 Collar 9.6-13-20.5Collar 9.6-13-20.5
-
28353-84916-0 Washer 9.6-18-2Washer 9.6-18-2
-
293C8-84963-0 Bolt 3/8-43Bolt 3/8-43
-
30353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
313C8-84964-0 Bolt 3/8-35Bolt 3/8-35
