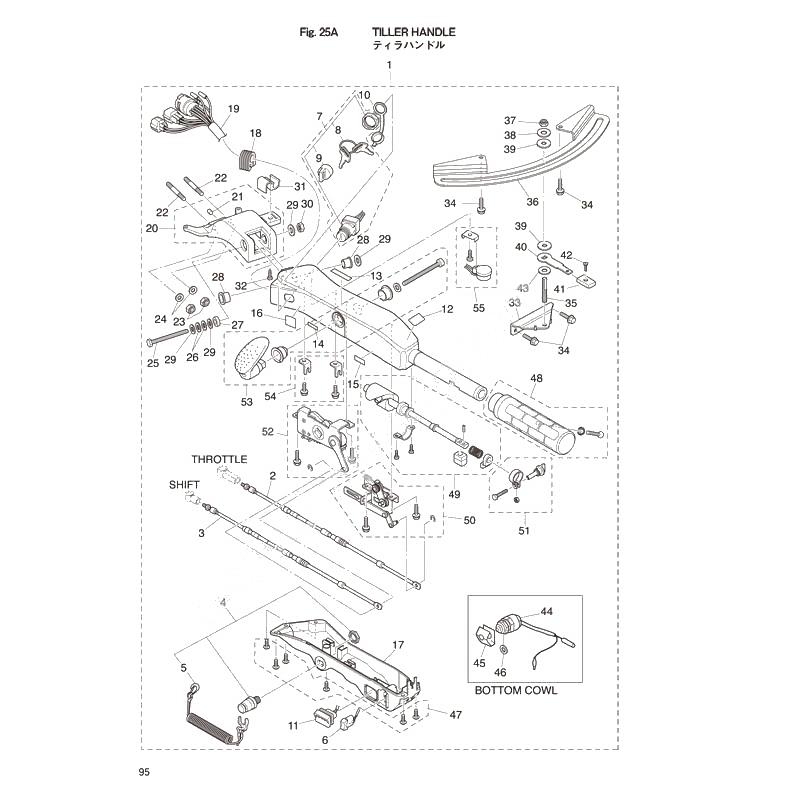

Tiller handle для Tohatsu MD40B2 - 2015 года выпуска
-
№АртикулНазвание
-
13GFQ63000-1 Tiller handle kitTiller handle kit
-
23GF-63600-0 スロットルワイヤスロットルワイヤ
-
33GF-66196-0 Shift cableShift cable
-
4398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
5353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
63AH-72615-0 PTTスイッチアッシ (B)PTTスイッチアッシ (B)
-
73GF-76020-0 Main SwitchMain Switch
-
83GF-76219-0 メインスイッチキー NO.945
選択 No.945メインスイッチキー NO.945
選択 No.945 -
93GF-76205-0 Main switch key capMain switch key cap
-
103T5-76022-0 Cap, Main SwitchCap, Main Switch
-
113GF-71040-0 Pilot lamp assyPilot lamp assy
-
123GF-72019-0 Throttle decalThrottle decal
-
133GF-67578-1 Decal shiftDecal shift
-
143GF-72198-0 Warning lamp decalWarning lamp decal
-
153GF-72200-0 Stop switch decalStop switch decal
-
163GF-84339-0 Instruction decalInstruction decal
-
173GF-63320-0 Tiller handle coverTiller handle cover
-
183GF-63624-0 Grommet exhaust housingGrommet exhaust housing
-
193GG-76119-1 Cord assyCord assy
-
203GFQ62000-0 ステアリングブラケットアッシステアリングブラケットアッシ
-
213GF-65012-0 ダウェルピン 8-16ダウェルピン 8-16
-
223GF-62097-0 スタッドスタッド
-
233C8-62098-0 ナイロンナット 10P1.25ナイロンナット 10P1.25
-
249402E3-1000 WasherWasher
-
253GF-63201-0 New partNew part
-
263GF-63305-0 Conical spring washerConical spring washer
-
273GF-63025-0 SpacerSpacer
-
283GF-63102-0 BushingBushing
-
299401E3-1000 WasherWasher
-
303GF-63310-0 Lock nutLock nut
-
313GF-62004-0 Cord holderCord holder
-
323T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
333GF-62400-0 フリクションレバーブラケットフリクションレバーブラケット
-
343V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
353GF-62445-0 New partNew part
-
363GF-62447-0 Plate, co-pilotPlate, co-pilot
-
373V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
383B7-63730-0 Washer, 8.5-24-1.5Washer, 8.5-24-1.5
-
393GF-62449-0 Disk, co-pilotDisk, co-pilot
-
403GF-62441-0 フリクションレバーフリクションレバー
-
413AC-63012-0 GripGrip
-
42346-66334-0 StopperStopper
-
433R3-62443-0 Washer, 8.1-20-0.8Washer, 8.1-20-0.8
-
44398-76080-1 Neutral Switch Ass'yNeutral Switch Ass'y
-
45398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
463B7-63731-0 Washer, 12.5-24-1Washer, 12.5-24-1
-
473GF-63205-0 Screw setScrew set
-
483GF-63193-0 Grip parts kitGrip parts kit
-
493GF-63062-0 Throttle shaft kitThrottle shaft kit
-
503GF-63067-0 Throttle link assyThrottle link assy
-
513GF-63032-0 Throttle friction assyThrottle friction assy
-
523GF-66160-0 Shift unit assyShift unit assy
-
533GF-66158-0 Shift lever kitShift lever kit
-
543GF-66198-0 Cable bracket kitCable bracket kit
-
553GF-76175-0 Buzzer kitBuzzer kit
