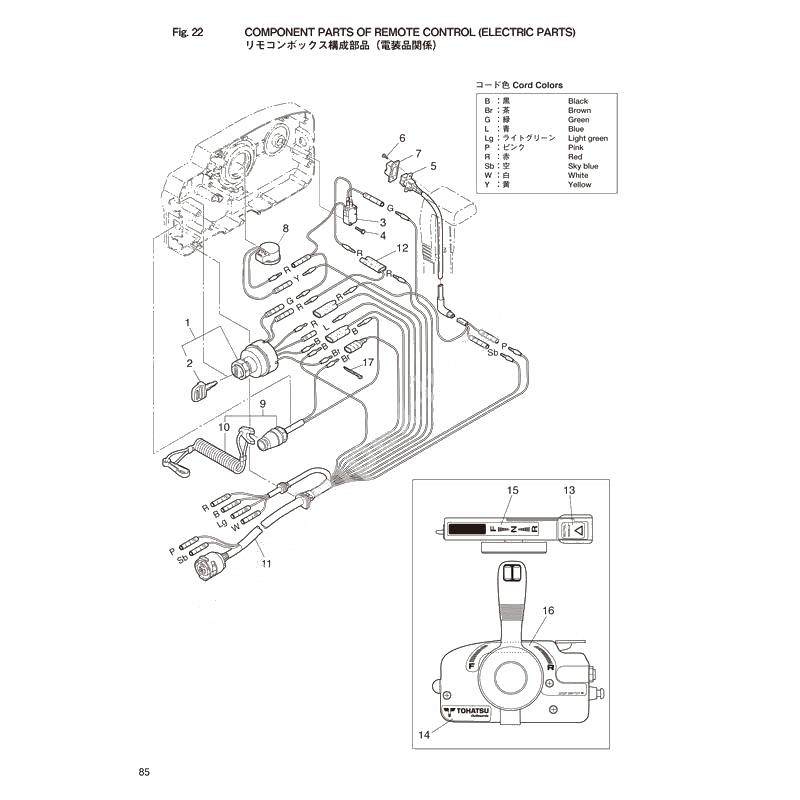

Component parts of remote control (electric parts) для Tohatsu MFS30C - 2015 года выпуска
-
№АртикулНазвание
-
1353-76020-3 Main Switch Ass'yMain Switch Ass'y
-
23F3-76219-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
33A3-76086-1 Neutral Switch Remote ControlNeutral Switch Remote Control
-
4921503-5316 ScrewScrew
-
53A3-72560-0 Switch Ass'y (p) P-T/T
RC5A EPTモデルSwitch Ass'y (p) P-T/T
RC5A EPTモデル -
6921503-0206 Screw
RC5A EPTモデルScrew
RC5A EPTモデル -
73A3-72591-0 Switch Cover P-T/T
RC5A EPTモデルSwitch Cover P-T/T
RC5A EPTモデル -
83C8-76171-0 Over-heat BuzzerOver-heat Buzzer
-
93A3-06830-0 Emergency Stop Switch B Ass'yEmergency Stop Switch B Ass'y
-
10353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
113A3-76115-1 コードアッシ Bコードアッシ B
-
12353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
133N5-84331-0 デカール(レバー)デカール(レバー)
-
143N5-84333-0 デカール(トーハツ)デカール(トーハツ)
-
153N5-84336-0 デカール(ハンドルポジション)デカール(ハンドルポジション)
-
163N5-84465-0 デカール(ハンドルポジションサイド)デカール(ハンドルポジションサイド)
-
173A3-84398-0 Band Lead WireBand Lead Wire
