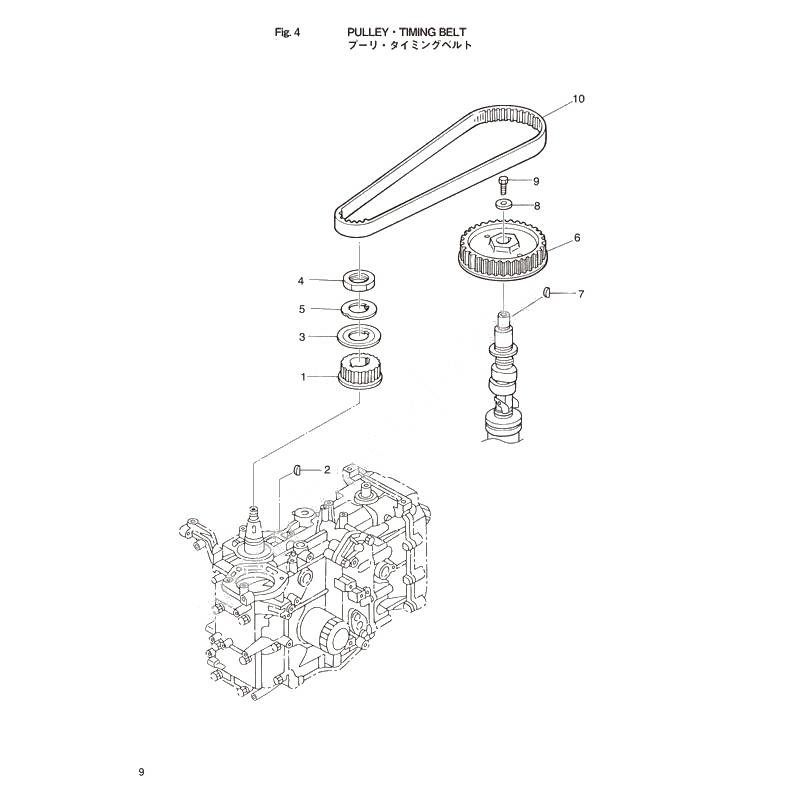

Pulley timing belt для Tohatsu MFS30C - 2015 года выпуска
-
№АртикулНазвание
-
13R0-10060-0 Drive Puley
タイミングプーリーDrive Puley
タイミングプーリー -
23T5-10131-0 Key, Drive Pulley
クランクシャフトKey, Drive Pulley
クランクシャフト -
33R0-10063-0 PlatePlate
-
43R0-10068-0 NutNut
-
53R0-10069-0 Lock WasherLock Washer
-
63H8-10062-2 Driven Pulley
カムシャフトプーリーDriven Pulley
カムシャフトプーリー -
7309-00131-0 Key, Magneto
カムシャフトKey, Magneto
カムシャフト -
83H8-10066-0 Washer, 6.5-19-3.2Washer, 6.5-19-3.2
-
93AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
103AC-10045-0 Timing BeltTiming Belt
