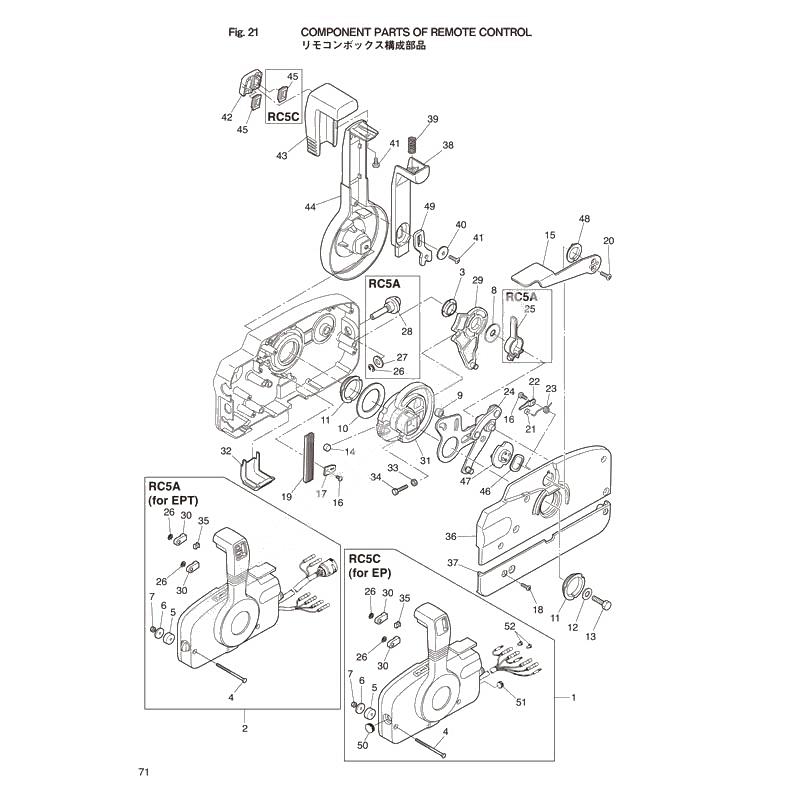

Component parts of remote control для Tohatsu MFS8A3 - 2015 года выпуска
-
№АртикулНазвание
-
13B7Q84350-4 リモートコントロールヘッドアッシ(RC5C)
RC5C EPモデルリモートコントロールヘッドアッシ(RC5C)
RC5C EPモデル -
33A3-84432-0 Bushing BBushing B
-
43A3-84375-0 ScrewScrew
-
53A3-84374-0 SpacerSpacer
-
6353-84371-0 WasherWasher
-
7930103-0600 NutNut
-
83A3-84383-0 WasherWasher
-
93A3-84421-0 RollerRoller
-
103A3-84422-0 Thrust PlateThrust Plate
-
113A3-84431-0 Bushing ABushing A
-
12940103-0800 WasherWasher
-
133A3-84442-0 BoltBolt
-
14353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
153B7Q84312-0 Free throttle leverFree throttle lever
-
16921503-0406 ScrewScrew
-
173A3-84423-0 Retainer DetentRetainer Detent
-
18921603-0518 ScrewScrew
-
193A3-84307-0 Spring DetentSpring Detent
-
20921603-0512 ScrewScrew
-
213A3-84424-0 Roller Free AccelRoller Free Accel
-
223A3-84426-0 Retainer RollerRetainer Roller
-
233A3-84425-0 Spring Free AccelSpring Free Accel
-
243A3-84365-1 Throttle ArmThrottle Arm
-
26945303-0600 E-Ring
RC5C EPモデルE-Ring
RC5C EPモデル -
293A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
303A3-83314-2 Terminal EyeTerminal Eye
-
313A3-84364-2 Drive GearDrive Gear
-
323A3-84429-0 Wire CoverWire Cover
-
33930103-0500 NutNut
-
34910103-0525 BoltBolt
-
353A3-84376-0 GrommetGrommet
-
363B7Q84441-0 Rear housingRear housing
-
373B7Q84366-0 Rear panelRear panel
-
383A3-84401-0 Arm Neutral LockArm Neutral Lock
-
393A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
403A3-84407-0 Washer Lock ArmWasher Lock Arm
-
41921503-0510 ScrewScrew
-
423A3-84451-0 Finisher TiltFinisher Tilt
-
433A3-84404-0 GripGrip
-
443B7Q84343-0 コントロールレバーコントロールレバー
-
453A3-84452-0 Plug Tilt Switch
RC5C EPモデルPlug Tilt Switch
RC5C EPモデル -
463A3-84368-0 Wave WasherWave Washer
-
473A3-84391-0 Drum Free AccelDrum Free Accel
-
483A3-84435-0 Bushing EBushing E
-
493A3-84406-0 Plate, Lock ArmPlate, Lock Arm
-
50361-84414-0 Grommet A
RC5C EPモデルGrommet A
RC5C EPモデル -
51361-84415-0 Grommet B
RC5C EPモデルGrommet B
RC5C EPモデル -
523A3-76037-0 Plug B Cable Terminal
RC5C EPモデルPlug B Cable Terminal
RC5C EPモデル
