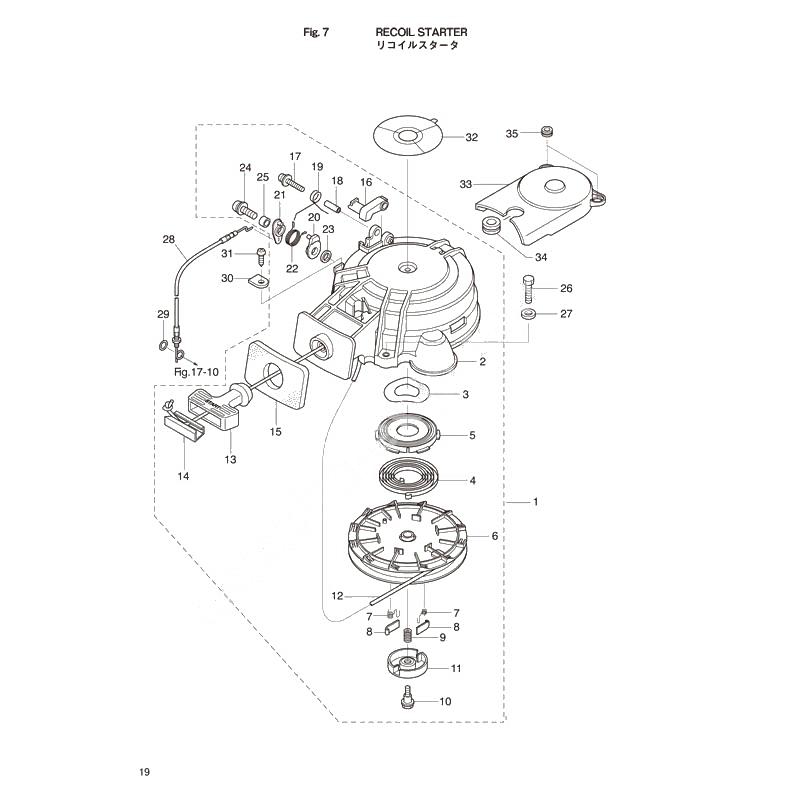

Recoil starter для Tohatsu MFS8A3 - 2015 года выпуска
-
№АртикулНазвание
-
13Y0-05090-1 Recoil starter assy.Recoil starter assy.
-
23AA-05098-1 Starter CaseStarter Case
-
33V1-05259-0 Wave WasherWave Washer
-
43AA-05004-0 Starter SpringStarter Spring
-
53R1-05125-0 Case, Stater SpringCase, Stater Spring
-
63V1-05104-1 ReelReel
-
73R1-05012-0 Return SpringReturn Spring
-
83R1-05003-1 RatchetRatchet
-
93R1-05007-0 Friction SpringFriction Spring
-
103R1-05138-1 Bolt, Starter ShaftBolt, Starter Shaft
-
113R1-05006-2 Friction PlateFriction Plate
-
3R1-05006-1 Friction PlateFriction Plate
-
123AA-05013-0 Stater RopeStater Rope
-
133AA-05019-0 Stater HandleStater Handle
-
143R1-05131-1 Rope anchorRope anchor
-
153AA-67503-0 Seal Ruber,StaterSeal Ruber,Stater
-
163AA-05252-0 Stater LockStater Lock
-
17921503-5430 ScrewScrew
-
183R1-05255-0 Coller Starter Lock ShaftColler Starter Lock Shaft
-
193R1-05216-0 Spring, Starter LockSpring, Starter Lock
-
203Y0-05253-0 スタータロックカムスタータロックカム
-
213Y0-05226-0 Lever starter lockLever starter lock
-
223Y0-05258-0 Cam spring starter lockCam spring starter lock
-
23940103-0600 WasherWasher
-
24921503-5625 ScrewScrew
-
253R0-06303-1 カラー 6.2-9-12.3カラー 6.2-9-12.3
-
3R0-06303-0 カラー 6.2-9-12.3カラー 6.2-9-12.3
-
263V2-60108-0 プレコ-トボルト 10φ-25(M6P1.0？)プレコ-トボルト 10φ-25(M6P1.0？)
-
273C8-66308-0 ワッシャ 6-16-1.5
EF/EFT&EP/EPTモデルワッシャ 6-16-1.5
EF/EFT&EP/EPTモデル -
283Y0-05207-0 Wire,Starter LockWire,Starter Lock
-
293C7-03271-2 Oリング1.5-2.5Oリング1.5-2.5
-
30332-66033-0 Retainer Cam ShiftRetainer Cam Shift
-
313V1-05913-0 Tapping ScrewTapping Screw
-
323R0-72181-0 Caution Label BCaution Label B
-
333V1-06308-0 Cover BeltCover Belt
-
343V1-06302-0 Rubber MountRubber Mount
-
35172-36008-0 グロメット 13-2グロメット 13-2
