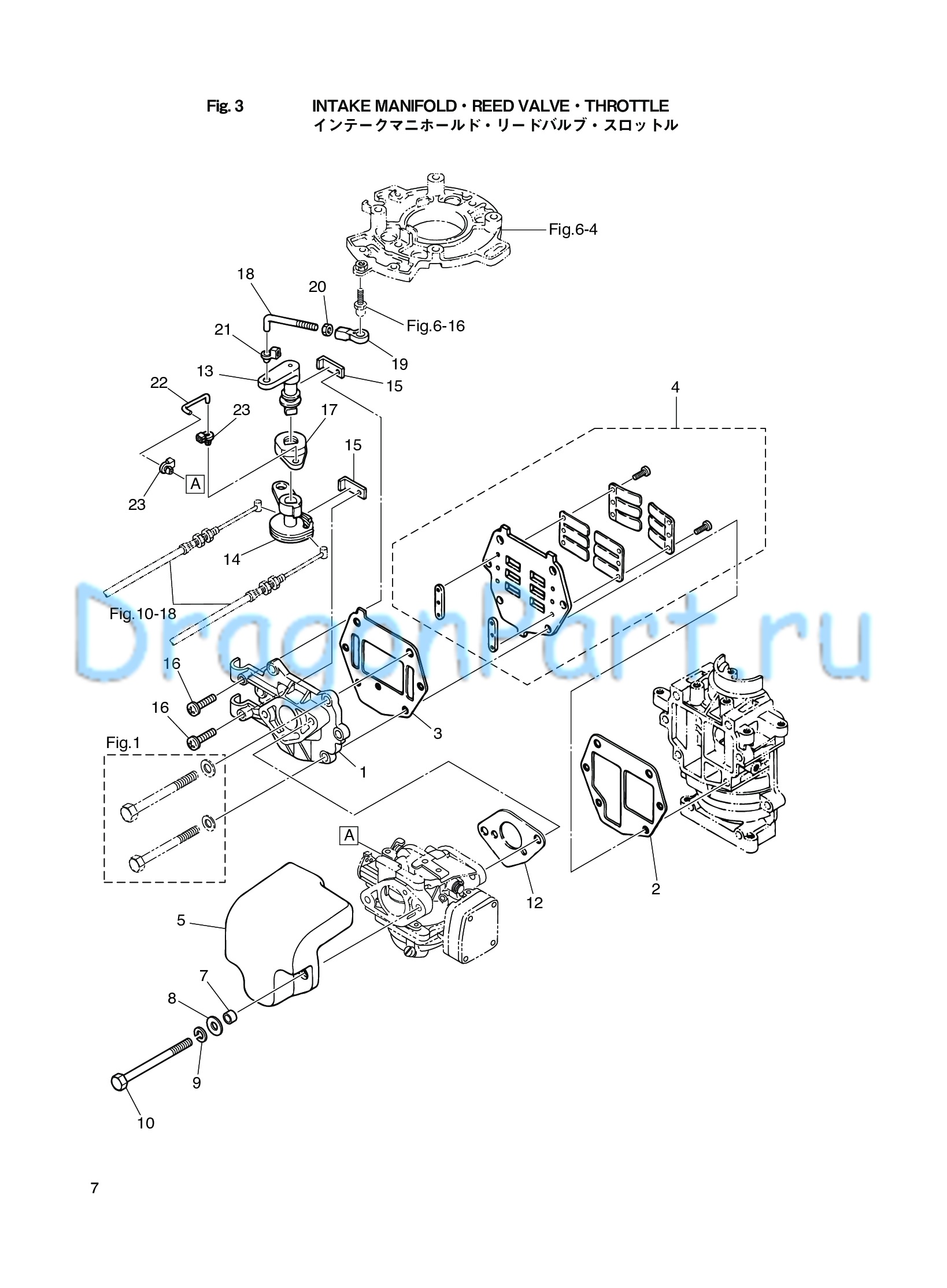

INTAKE MAINFOLD REED VALVE THROTTLE для Tohatsu M8B - 2016 года выпуска
-
№АртикулНазвание
-
13B2B02010-0 INTAKE MANIFOLD ASSYINTAKE MANIFOLD ASSY
-
23B2-02104-1 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
33B2-02105-1 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
43B2-02100-0 REED VALVE ASSYREED VALVE ASSY
-
53B2-02411-0 INTAKE SILENCERINTAKE SILENCER
-
73B2-02416-0 SPACERSPACER
-
83C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
9941303-0600 SPRING WASHERSPRING WASHER
-
109161F1-0685 BOLTBOLT
-
12369-02011-0 CARBURETOR GASKETCARBURETOR GASKET
-
133B2-63711-0 ADVANCER ARMADVANCER ARM
-
143B2-63611-0 THROTTLE DRUMTHROTTLE DRUM
-
153B2-63506-1 HOLDERHOLDER
-
16921521-6520 SCREWSCREW
-
173B2-63751-0 THROTTLE ARMTHROTTLE ARM
-
183B2-63715-2 ROD 5-45ROD 5-45
-
193B7-05243-0 BALL JOINT CONNECTORBALL JOINT CONNECTOR
-
20930103-0500 NUTNUT
-
21345-05224-0 ROD SNAP 5-2.5ROD SNAP 5-2.5
-
223B2-63716-1 THROTTLE RODTHROTTLE ROD
-
23346-67196-1 ROD SNAP 3-BROD SNAP 3-B
