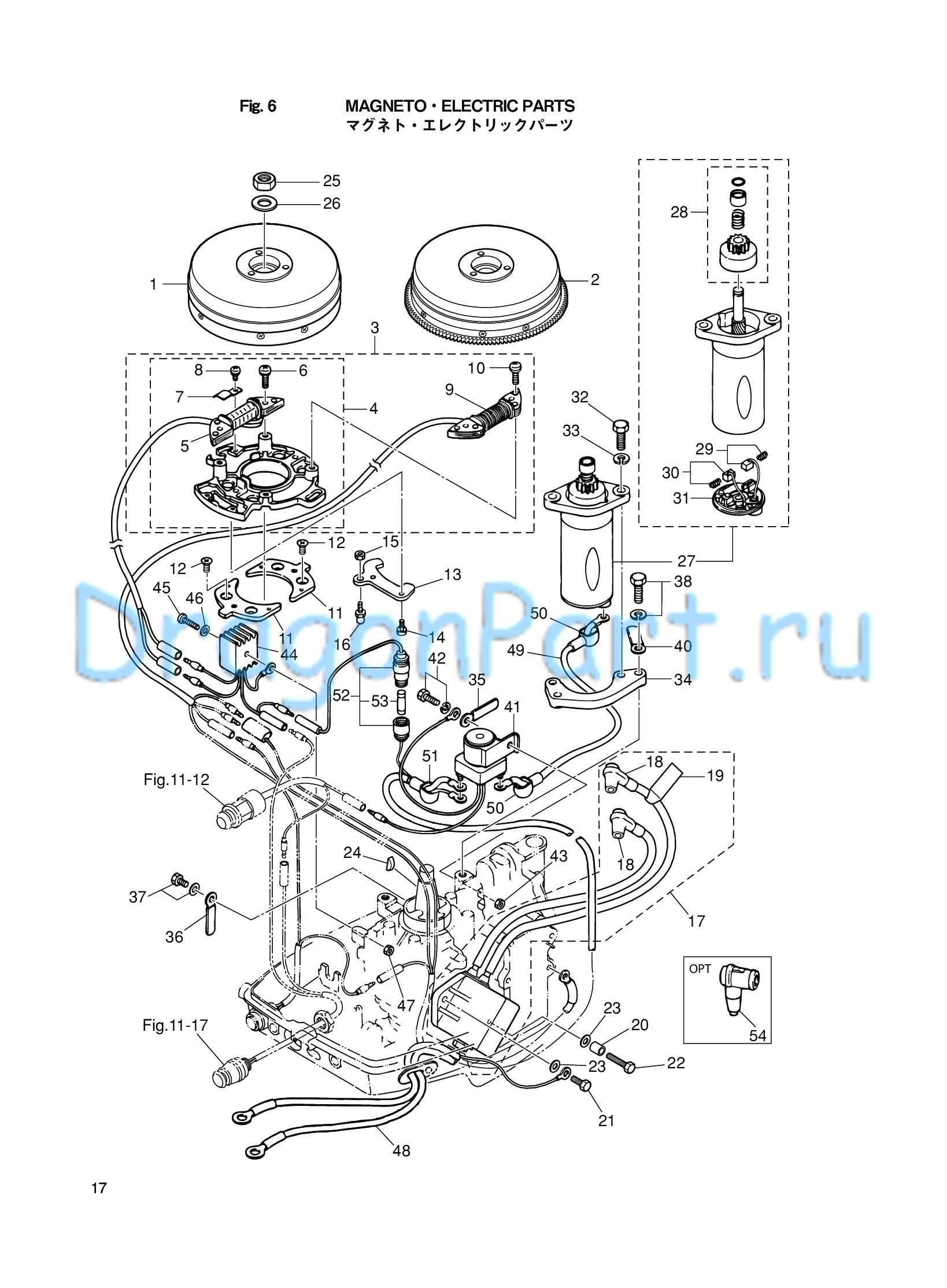

MAGNET ELECTRIC PARTS для Tohatsu M8B - 2016 года выпуска
-
№АртикулНазвание
-
13B2-06101-0 FLYWHEEL ASSY
for MFFLYWHEEL ASSY
for MF -
43B2-06102-2 * COIL PLATE ASSY
without Altenator for MF* COIL PLATE ASSY
without Altenator for MF -
53B2-06120-0 ** EXCITER COIL** EXCITER COIL
-
6921521-6625 ** SCREW
Exciter Coil for MF** SCREW
Exciter Coil for MF -
73B2-06135-0 ** HOLDER** HOLDER
-
8921521-6406 ** SCREW** SCREW
-
113B2-63724-0 SETTING PLATESETTING PLATE
-
12921621-0612 SCREWSCREW
-
133B2-05233-1 COIL PLATE STOPPERCOIL PLATE STOPPER
-
14921503-6510 SCREWSCREW
-
15930103-0600 NUTNUT
-
16346-05228-1 BALL JOINTBALL JOINT
-
173B2-06170-0 CD UNIT ASSYCD UNIT ASSY
-
18346-06999-0 * PLUG CAP W/RESISTANCE* PLUG CAP W/RESISTANCE
-
193C8-72181-0 * CAUTION DECAL (B)* CAUTION DECAL (B)
-
203B2-06162-0 SPACER 6.2-9-27SPACER 6.2-9-27
-
219101F4-0620 BOLTBOLT
-
229101F4-0645 BOLTBOLT
-
23940103-0600 WASHERWASHER
-
24338-00131-0 KEY 16-5.7-4
MagnetoKEY 16-5.7-4
Magneto -
25369-00132-0 NUT 12-P1.25NUT 12-P1.25
-
26940121-1200 WASHER"WASHER"
-
543C7-06921-0 PLUG CAP W/RESISTANCE"
OPTPLUG CAP W/RESISTANCE"
OPT
