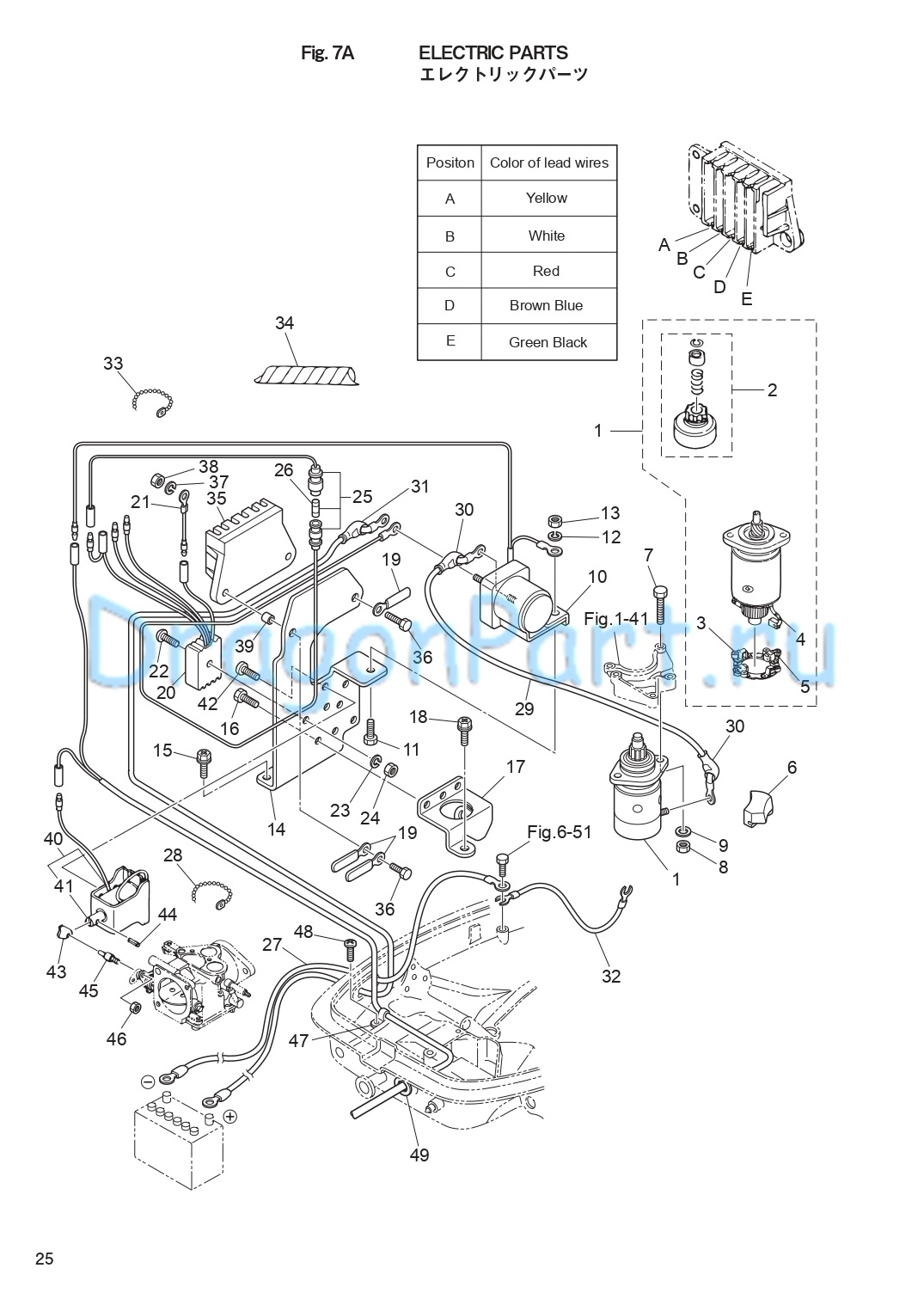

ELECTRIC PARTS для Tohatsu M25H - 2017 года выпуска
-
№АртикулНазвание
-
1346-76010-0 STARTER MOTOR ASSYSTARTER MOTOR ASSY
-
2346-76015-0 * PINION ASSY* PINION ASSY
-
3346-76014-0 * BRUSH HOLDER* BRUSH HOLDER
-
4346-76012-0 * POSITIVE BRUSH* POSITIVE BRUSH
-
5346-76013-0 * NEGATIVE BRUSH* NEGATIVE BRUSH
-
6346-76007-0 DAMPERDAMPER
-
7916103-0835 BOLTBOLT
-
8930103-0800 NUTNUT
-
9941303-0800 SPRING WASHERSPRING WASHER
-
10346-76040-0 STARTER SOLENOIDSTARTER SOLENOID
-
11910103-0616 BOLTBOLT
-
12941303-0600 SPRING WASHERSPRING WASHER
-
13930103-0600 NUTNUT
-
14346-76043-2 STARTER SOLENOID BRACKETSTARTER SOLENOID BRACKET
-
15910903-6616 BOLTBOLT
-
16910903-6508 BOLTBOLT
-
17346-76081-1 NEUTRAL SWITCH BRACKETNEUTRAL SWITCH BRACKET
-
18910903-6616 BOLTBOLT
-
193PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
203G2-76060-0 RECTIFIER COMPLETERECTIFIER COMPLETE
-
213G2-76142-0 GROUND CABLE
RectifierGROUND CABLE
Rectifier -
22921503-0525 SCREWSCREW
-
23941303-0500 SPRING WASHERSPRING WASHER
-
24930103-0500 NUTNUT
-
253B2-76062-0 FUSE WIRE ASSY L=355FUSE WIRE ASSY L=355
-
26346-76212-0 * FUSE 15A* FUSE 15A
-
273B2-76120-1 BATTERY CABLE L=2000BATTERY CABLE L=2000
-
28336-76091-0 LEAD WIRE BAND 100LEAD WIRE BAND 100
-
293B2-76147-2 STARTER CABLE L=200STARTER CABLE L=200
-
303A3-76145-0 TERMINAL CAP 8-13-28
BlackTERMINAL CAP 8-13-28
Black -
313B7-76145-0 TERMINAL CAP 8-13-30TERMINAL CAP 8-13-30
-
32334-76141-1 STARTER CABLE L=150STARTER CABLE L=150
-
33336-76091-0 LEAD WIRE BAND 100LEAD WIRE BAND 100
-
34361-76149-0 SPIRAL TUBE PROTECTOR L=130-140SPIRAL TUBE PROTECTOR L=130-140
-
35353-06281-0 CABLE TERMINAL HOLDERCABLE TERMINAL HOLDER
-
36910103-0620 BOLTBOLT
-
37941303-0600 SPRING WASHERSPRING WASHER
-
38930103-0600 NUTNUT
-
39353-06283-0 COLLAR 6.4-10-4.7COLLAR 6.4-10-4.7
-
40361-76050-0 CHOKE SOLENOID
for EP TypeCHOKE SOLENOID
for EP Type -
41361-76073-0 * PLUNGER* PLUNGER
-
42921503-6408 SCREW
for EP TypeSCREW
for EP Type -
43346-76057-0 CHOKE SOLENOID HOOK
for EP TypeCHOKE SOLENOID HOOK
for EP Type -
44951403-0312 SPRING PIN 3-12
for EP TypeSPRING PIN 3-12
for EP Type -
45345-76072-1 ROD
for EP TypeROD
for EP Type -
46930403-0400 NYLON NUT 4-P0.7
for EP TypeNYLON NUT 4-P0.7
for EP Type -
47336-06973-0 CLAMP 6-9.5LCLAMP 6-9.5L
-
48921503-0612 SCREWSCREW
-
49345-76023-0 GROMMET 22-2.5GROMMET 22-2.5
