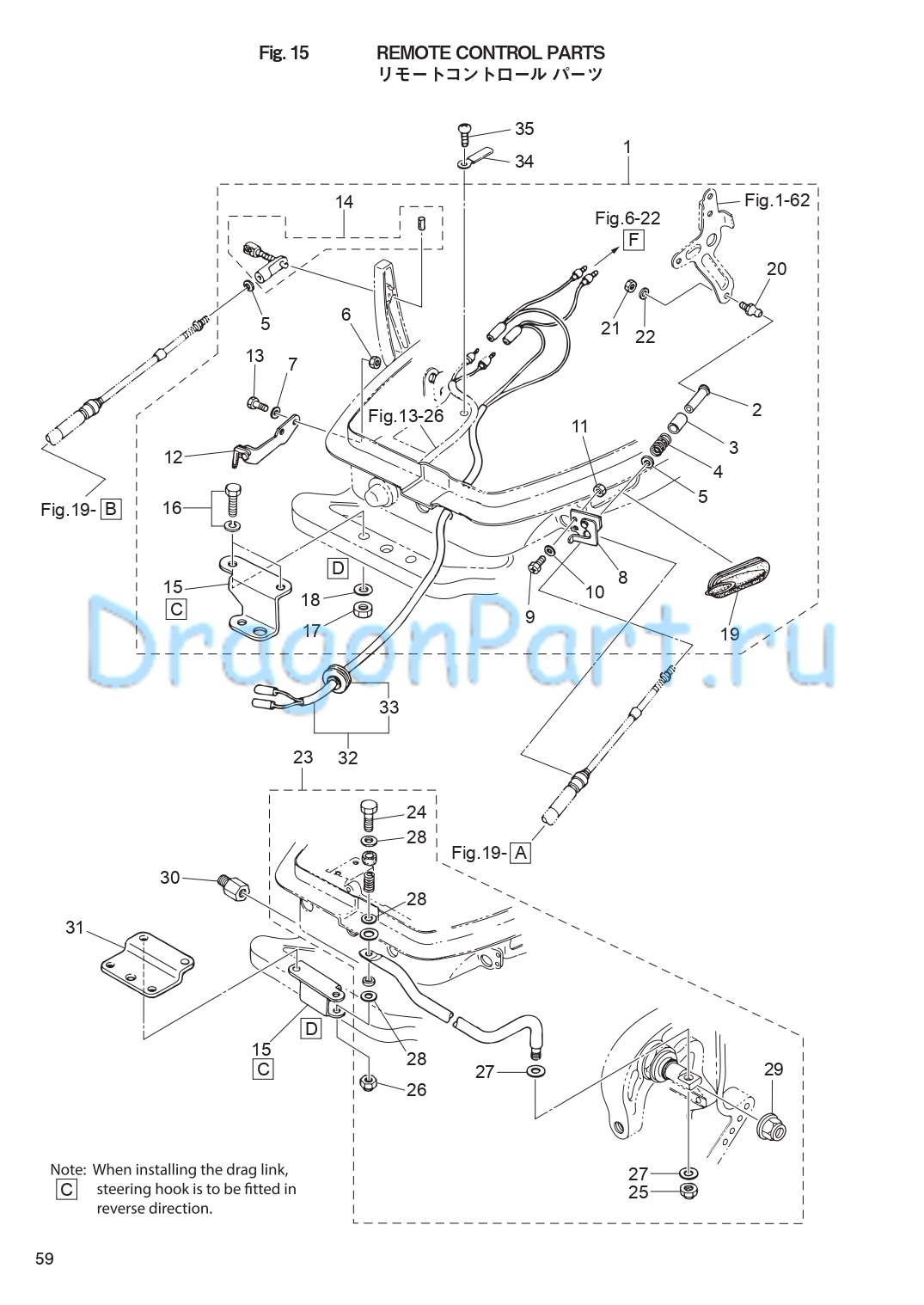

REMOTE CONTROL PARTS для Tohatsu M25H - 2017 года выпуска
-
№АртикулНазвание
-
13A1-83880-1 REMOTE CONTROL FITTING ASSYREMOTE CONTROL FITTING ASSY
-
23A1-83722-0 * BALL JOINT HOLDER* BALL JOINT HOLDER
-
3332-83723-0 * HOLDER CAP* HOLDER CAP
-
4332-83724-0 * SPRING* SPRING
-
5332-83725-0 * WASHER 5.5-14-1.2* WASHER 5.5-14-1.2
-
6930103-0600 * NUT* NUT
-
7941303-0600 * SPRING WASHER* SPRING WASHER
-
8345-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
9910403-0518 * BOLT* BOLT
-
10941303-0500 * SPRING WASHER* SPRING WASHER
-
11930103-0500 * NUT* NUT
-
12346-83870-0 * CLUTCH CABLE STAY ASSY* CLUTCH CABLE STAY ASSY
-
13910103-0620 * BOLT* BOLT
-
143A1-83710-1 * CABLE JOINT ASSY* CABLE JOINT ASSY
-
15346-84830-1 * STEERING HOOK* STEERING HOOK
-
16910103-6830 * BOLT* BOLT
-
17930103-0800 * NUT* NUT
-
18940103-0800 * WASHER* WASHER
-
19346-83732-0 * GROMMET 68-20-3* GROMMET 68-20-3
-
20345-83721-0 * BALL JOINT* BALL JOINT
-
21930103-0600 * NUT* NUT
-
22941303-0600 * SPRING WASHER* SPRING WASHER
-
23346-84905-1 DRAG LINK ASSYDRAG LINK ASSY
-
24910103-0835 * BOLT* BOLT
-
25353-84918-0 * NYLON NUT 3/8-24UNF* NYLON NUT 3/8-24UNF
-
26930403-0800 * NYLON NUT 8-P1.25* NYLON NUT 8-P1.25
-
27353-84916-0 * WASHER 9.6-18-2* WASHER 9.6-18-2
-
28940103-0800 * WASHER* WASHER
-
293F3-84908-0 * SEAL RING* SEAL RING
-
30353-84904-0 DRAG LINK SPACERDRAG LINK SPACER
-
31346-84901-0 TURNING BUCKLE PLATETURNING BUCKLE PLATE
-
323P0-83857-0 REMOTE CONTROL STOP CORD ASSY L=3900
OPTREMOTE CONTROL STOP CORD ASSY L=3900
OPT -
32361-83857-0 REMOTE CONTROL STOP CORD ASSY L=5900
OPTREMOTE CONTROL STOP CORD ASSY L=5900
OPT -
33345-76023-0 *GROMMET 22-2.5*GROMMET 22-2.5
-
34336-06973-0 CLAMP 6-9.5LCLAMP 6-9.5L
-
35921503-0612 SCREWSCREW
