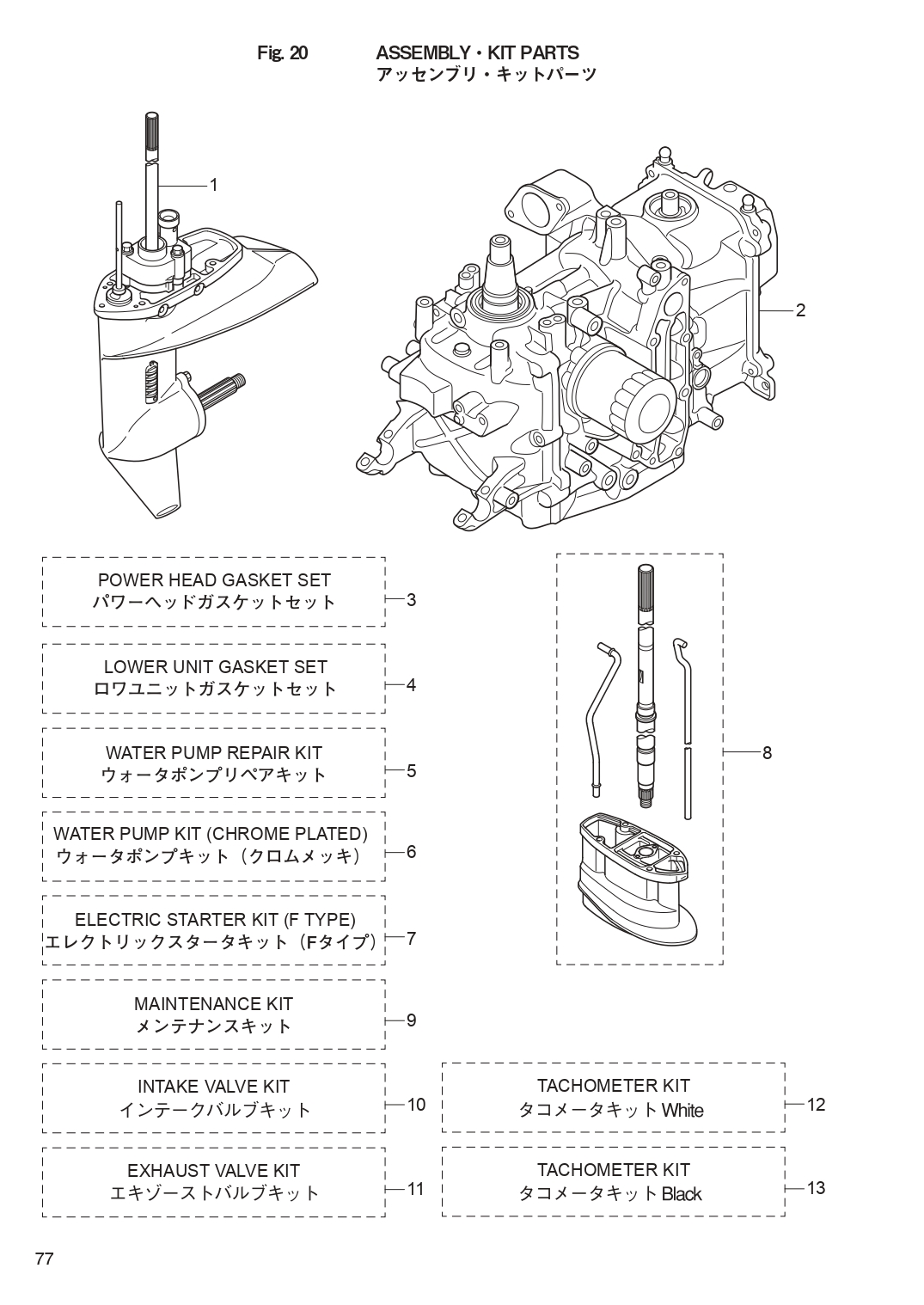

ASSEMBLY KIT для Tohatsu MFS15E - 2017 года выпуска
-
№АртикулНазвание
-
13RSQ87301-0 LOWER UNIT ASSY (S)LOWER UNIT ASSY (S)
-
13RSQ87302-0 LOWER UINT ASSY(L)LOWER UINT ASSY(L)
-
23RSB87090-0 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33RS-87121-0 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
33RS-01005-0 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
33RS-01024-0 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
33R0-07422-0 * O-RING 3.1-24.4* O-RING 3.1-24.4
-
33RS-02305-0 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
3346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
33RS-01303-0 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
33R3-00121-0 * OIL SEAL 32-44-9* OIL SEAL 32-44-9
-
33BJ-00121-0 * OIL SEAL 36-50-7* OIL SEAL 36-50-7
-
33BJ-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
33H8-62415-0 * O-RING 3.5-25.7* O-RING 3.5-25.7
-
33RS-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
33H8-07025-0 * OIL SEAL 18-35-8* OIL SEAL 18-35-8
-
43RS-87321-0 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
43RS-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
4332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
4121-32071-0 * O-RING 2.4-59.6* O-RING 2.4-59.6
-
4346-65013-0 * OIL SEAL 17-30-9* OIL SEAL 17-30-9
-
4332-60223-0 * OIL SEAL 13.8-26-9.5* OIL SEAL 13.8-26-9.5
-
43RS-65020-0 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
43RS-66021-0 * O-RING* O-RING
-
53RS-87322-0 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
53RS-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
53LD-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
53RS-65022-0 * KEY* KEY
-
5350-65011-1 * PUMP CASE LINER* PUMP CASE LINER
-
53RS-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
59101E3-5652 * BOLT* BOLT
-
63RS-65231-0 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
63RS-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63LD-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
6362-65238-0 * PUMP CASE LINER* PUMP CASE LINER
-
63RS-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
73RS-76300-0 ELECTRIC STARTER KIT (F)ELECTRIC STARTER KIT (F)
-
73RT-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
73RT-06191-0 * FLYWHEEL W/RING GEAR* FLYWHEEL W/RING GEAR
-
73RT-76110-0 * CORD ASSY* CORD ASSY
-
73BJ-06133-0 * PROTECTOR φ10.7-320* PROTECTOR φ10.7-320
-
73BA-06133-0 * PROTECTOR φ10.7-180* PROTECTOR φ10.7-180
-
73RS-01047-0 * PLUG* PLUG
-
73RS-06901-0 * BRACKET* BRACKET
-
73H8-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
7910103-5610 * BOLT* BOLT
-
73KY-06920-0 * RUBBER MOUNT* RUBBER MOUNT
-
73RS-76079-0 * COLLAR* COLLAR
-
73C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
7910103-0625 * BOLT* BOLT
-
73RS-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
73RS-76009-0 * STARTER MOTOR BAND* STARTER MOTOR BAND
-
73C8-76007-0 * DAMPER* DAMPER
-
7910103-5825 * BOLT* BOLT
-
7910103-5612 * BOLT* BOLT
-
73RS-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
7910103-5620 * BOLT* BOLT
-
73RS-76163-0 * RECTIFIER BRACKET* RECTIFIER BRACKET
-
7910103-5612 * BOLT* BOLT
-
7910103-5612 * BOLT* BOLT
-
73BH-76120-0 * BATTERY CABLE* BATTERY CABLE
-
7910103-5612 * BOLT* BOLT
-
73BJ-76145-0 * TERMINAL CAP 15.5-20-28* TERMINAL CAP 15.5-20-28
-
73Y0-76145-0 * TERMINAL CAP 8-18-28* TERMINAL CAP 8-18-28
-
73AA-76145-0 * TERMINAL CAP 13-13-28* TERMINAL CAP 13-13-28
-
73RS-76141-0 * STARTER CABLE* STARTER CABLE
-
73NV-76080-0 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
7398-76083-0 * NEUTRAL SWITCH ACTUATOR* NEUTRAL SWITCH ACTUATOR
-
73RS-76081-0 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
7910103-5616 * BOLT* BOLT
-
73AA-76026-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
83RSQ87314-0 EXTENSION HOUSING KIT (UL)EXTENSION HOUSING KIT (UL)
-
83RSQ61110-0 * EXTENSION HOUSING UL* EXTENSION HOUSING UL
-
83AB-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
83BJ-60001-0 * BOLT 8-31* BOLT 8-31
-
83BJ-60003-0 * DRIVE SHAFT BUSHING* DRIVE SHAFT BUSHING
-
83V1-64332-0 * STOPPER* STOPPER
-
89101E3-5612 * BOLT* BOLT
-
83RS-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
83RS-64303-0 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
83RS-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
93RS-87500-0 MAINTENANCE KITMAINTENANCE KIT
-
93P0-60218-0 * ANODE* ANODE
-
93BJ-07615-0 * OIL FILTER* OIL FILTER
-
93LD-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
9350-65011-1 * PUMP CASE LINER* PUMP CASE LINER
-
93RS-65022-0 * KEY* KEY
-
93RS-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
93RS-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
9332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
93R3-07406-0 * WASHER 14.5-24-1* WASHER 14.5-24-1
-
93KY-60218-0 * ANODE* ANODE
-
9951503-0322 * SPLIT PIN 3-22* SPLIT PIN 3-22
-
99701-1-1103 * SPARK PLUG(DCPR6E)* SPARK PLUG(DCPR6E)
-
103RS-07895-0 INTAKE VALVE KITINTAKE VALVE KIT
-
103RS-07901-0 * INTAKE VALVE* INTAKE VALVE
-
103V1-07221-0 * RETAINER* RETAINER
-
103H6-07223-0 * COTTER* COTTER
-
113RS-07896-0 EXHAUST VALVE KITEXHAUST VALVE KIT
-
113RS-07902-0 * EXHAUST VALVE* EXHAUST VALVE
-
113V1-07221-0 * RETAINER* RETAINER
-
113H6-07223-0 * COTTER* COTTER
-
123AD-72638-1 TACHOMETER KIT
WhiteTACHOMETER KIT
White -
133AC-72638-1 TACHOMETER KIT
BlackTACHOMETER KIT
Black
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- CYLINDER HEAD OIL PUMP
- PULLEY TIMING BELT
- FUEL PUMP
- RECOIL STARTER
- MAGNETO ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE
- BRACKET (MANUAL)
- BRACKET (PTT)
- TILLER HANDLE SHIFT
- FRONT PANEL DRIVE SHAFT HOUSING COVER
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS ACCESSORIES
- • ASSEMBLY KIT
