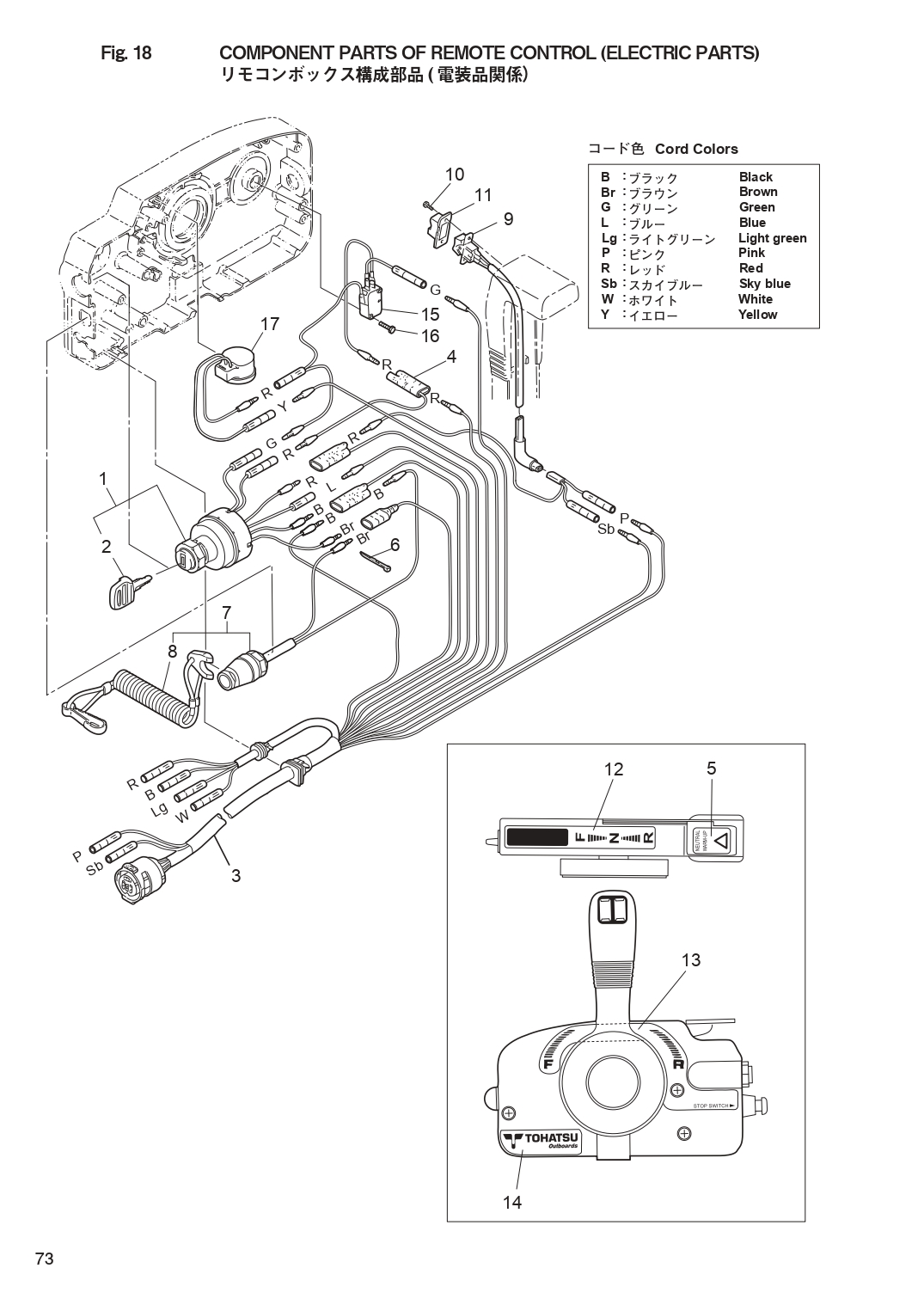

COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS) для Tohatsu MFS15E - 2017 года выпуска
-
№АртикулНазвание
-
1353-76020-3 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
23F3-76217-0 * MAIN SWITCH KEY No.301* MAIN SWITCH KEY No.301
-
23F3-76218-0 * MAIN SWITCH KEY No.302* MAIN SWITCH KEY No.302
-
23F3-76219-0 * MAIN SWITCH KEY No.303* MAIN SWITCH KEY No.303
-
33A3-76115-1 CORD ASSY L=6200CORD ASSY L=6200
-
4353-72546-0 ASSIST CORD (RED) L=200ASSIST CORD (RED) L=200
-
53N5-84331-0 DECAL (LEVER)DECAL (LEVER)
-
63A3-84398-0 BANDBAND
-
73A3-06830-0 STOP SWITCH ASSYSTOP SWITCH ASSY
-
8353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
93A3-72560-0 PTT SWITCH ASSY
EPT TypePTT SWITCH ASSY
EPT Type -
10921503-0206 SCREWSCREW
-
113A3-72591-0 PTT SWITCH COVERPTT SWITCH COVER
-
123N5-84336-0 SHIFT POSITION DECALSHIFT POSITION DECAL
-
133N5-84465-0 SHIFT POSITION SIDE DECALSHIFT POSITION SIDE DECAL
-
143N5-84333-0 DECAL (TOHATSU)DECAL (TOHATSU)
-
153A3-76086-1 NEUTRAL SWITCH (REMOTE CONT)NEUTRAL SWITCH (REMOTE CONT)
-
16921503-5316 SCREWSCREW
-
173C8-76171-0 OVERHEAT BUZZEROVERHEAT BUZZER
