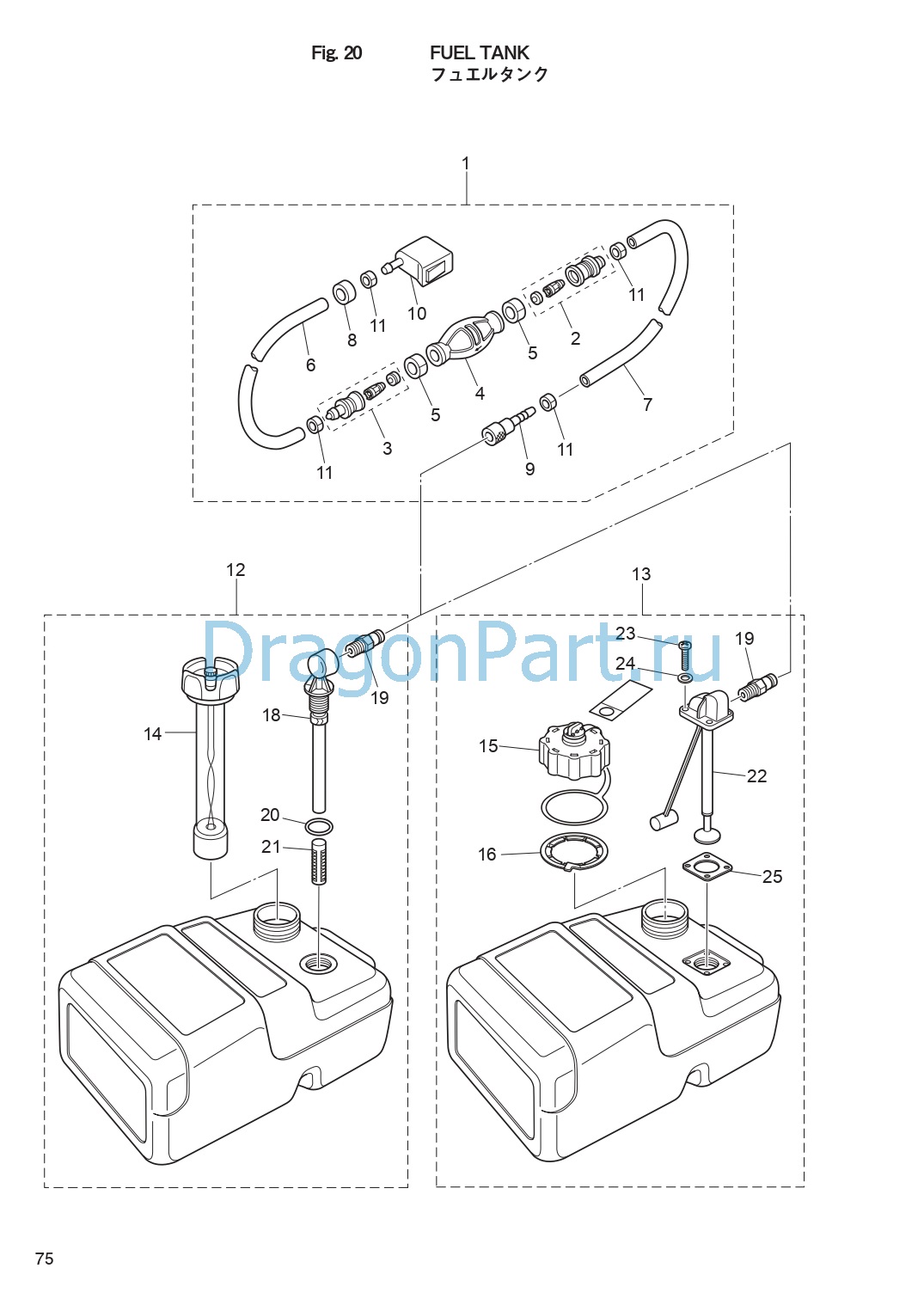

FUEL TANK для Tohatsu MFS30C - 2017 года выпуска

№

Артикул

Название
1

3H6-70200-2 PRIMER BULB ASSY
STD

PRIMER BULB ASSY
STD

15 180 ₽
1

3AD-70200-2 PRIMER BULB ASSY
Low Permeation Parts for USA Model

PRIMER BULB ASSY
Low Permeation Parts for USA Model

14 740 ₽
2

3C7-70220-1 * JOINT ASSY (INLET)

* JOINT ASSY (INLET)

800 ₽
3

3C7-70224-1 * JOINT ASSY (OUTLET)

* JOINT ASSY (OUTLET)

800 ₽
4

3C7-70211-1 * PRIMER BULB
STD

* PRIMER BULB
STD

1 710 ₽
4

3GF-70211-1 * PRIMER BULB
Low Permeation Parts for USA Model

* PRIMER BULB
Low Permeation Parts for USA Model

5 810 ₽
5

3C7-70217-0 * CLAMP

* CLAMP

280 ₽
6

98AB-70-700 * HOSE
STD

* HOSE
STD

800 ₽
6

3GF-70241-1 * LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

2 960 ₽
7

98AB-701600 * HOSE
STD

* HOSE
STD

950 ₽
7

3GF-70240-1 * LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

5 900 ₽
8

3GR-70280-0 * FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual

* FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual

330 ₽
9

3GF-70281-0 * FUEL CONNECTOR

* FUEL CONNECTOR

2 790 ₽
10

3GR-70250-0 * FUEL CONNECTOR

* FUEL CONNECTOR

3 850 ₽
11

332-70201-0 * CLAMP

* CLAMP

270 ₽
12

3C7-70177-1 FUEL TANK ASSY 25L
STD

FUEL TANK ASSY 25L
STD

18 450 ₽
13

3AC-70177-2 FUEL TANK ASSY 25L
for USA Model

FUEL TANK ASSY 25L
for USA Model

22 860 ₽
14

3C7-70050-2 * FUEL GAUGE VENT CAP ASSY (25L)

* FUEL GAUGE VENT CAP ASSY (25L)

3 420 ₽
15

3AC-70052-1 * FUEL TANK CAP ASSY
for USA Model

* FUEL TANK CAP ASSY
for USA Model

3 940 ₽
16

3AC-70055-0 * RETAINING RING
for USA Model

* RETAINING RING
for USA Model

690 ₽
18

3C7-70155-0 * PICK-UP ELBOW ASSY (25L)

* PICK-UP ELBOW ASSY (25L)

1 380 ₽
19

3E0-70270-0 * QUICK-CONNECTOR (MALE)

* QUICK-CONNECTOR (MALE)

2 730 ₽
20

3C7-70199-0 * O-RING

* O-RING

270 ₽
21

3C7-70113-0 * FILTER

* FILTER

710 ₽
22

3AC-70157-0 * FUEL PICK-UP ASSY W/GAUGE
for USA Model

* FUEL PICK-UP ASSY W/GAUGE
for USA Model

3 120 ₽
23

3AC-70140-0 * SCREW
for USA Model

* SCREW
for USA Model

150 ₽
24

3AC-70145-0 * WASHER
for USA Model

* WASHER
for USA Model

120 ₽
25

3AC-70150-0 * GASKET
for USA Model

* GASKET
for USA Model

520 ₽
