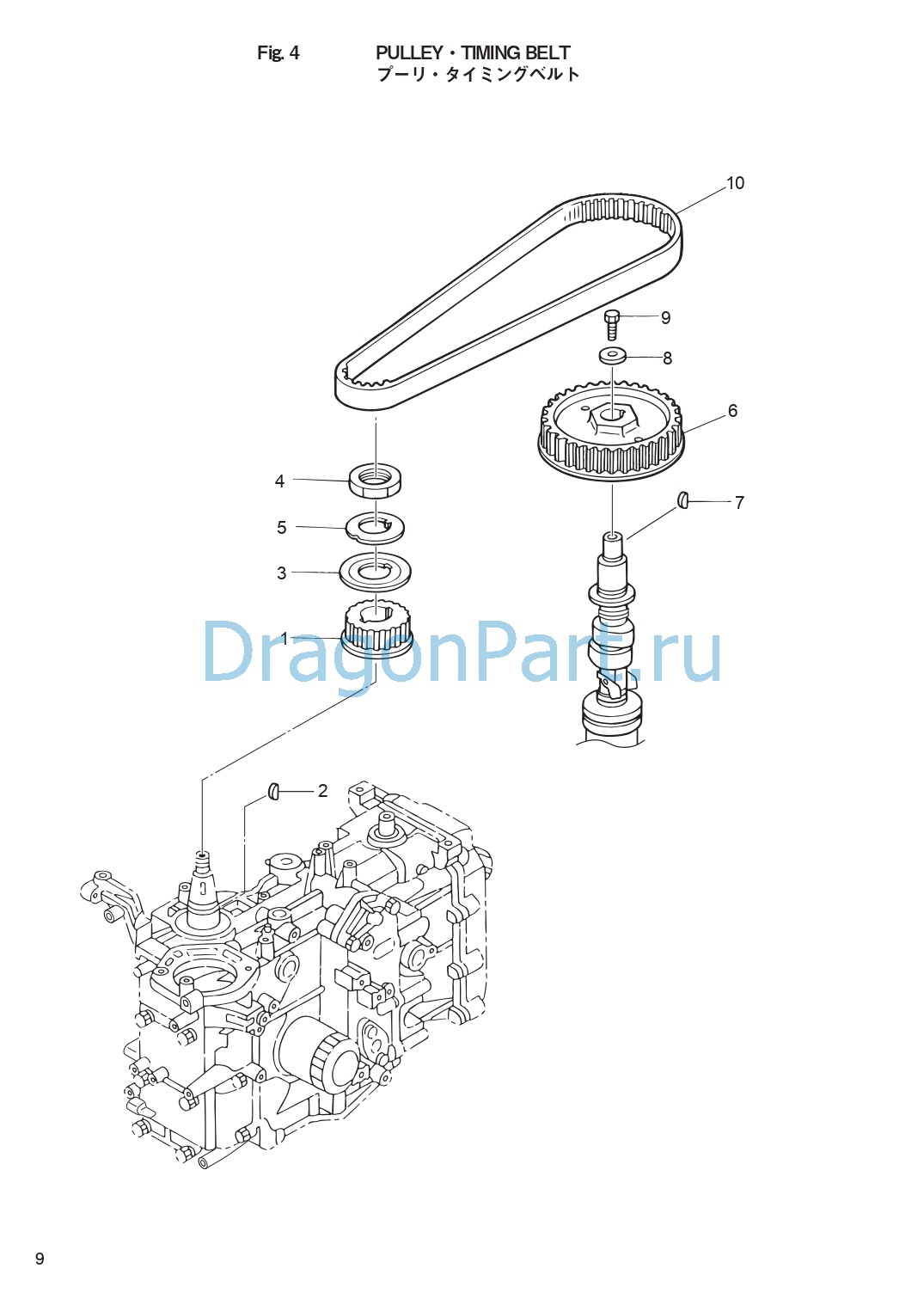

PULLEY TIMING BELT для Tohatsu MFS30C - 2017 года выпуска
-
№АртикулНазвание
-
13R0-10060-0 DRIVE PULLEY
Timing PulleyDRIVE PULLEY
Timing Pulley -
23T5-10131-0 KEY 13.4-5-4
CrankshaftKEY 13.4-5-4
Crankshaft -
33R0-10063-0 BELT GUIDEBELT GUIDE
-
43R0-10068-0 NUTNUT
-
53R0-10069-0 LOCK WASHERLOCK WASHER
-
63H8-10062-2 DRIVEN PULLEY
Camshaft PulleyDRIVEN PULLEY
Camshaft Pulley -
7309-00131-0 KEY 10-3.7-3
CamshaftKEY 10-3.7-3
Camshaft -
83H8-10066-0 WASHER 6.5-19-3.2WASHER 6.5-19-3.2
-
93AA-60108-0 PRE-COATED BOLT 6-20PRE-COATED BOLT 6-20
-
103AC-10045-0 TIMING BELTTIMING BELT
