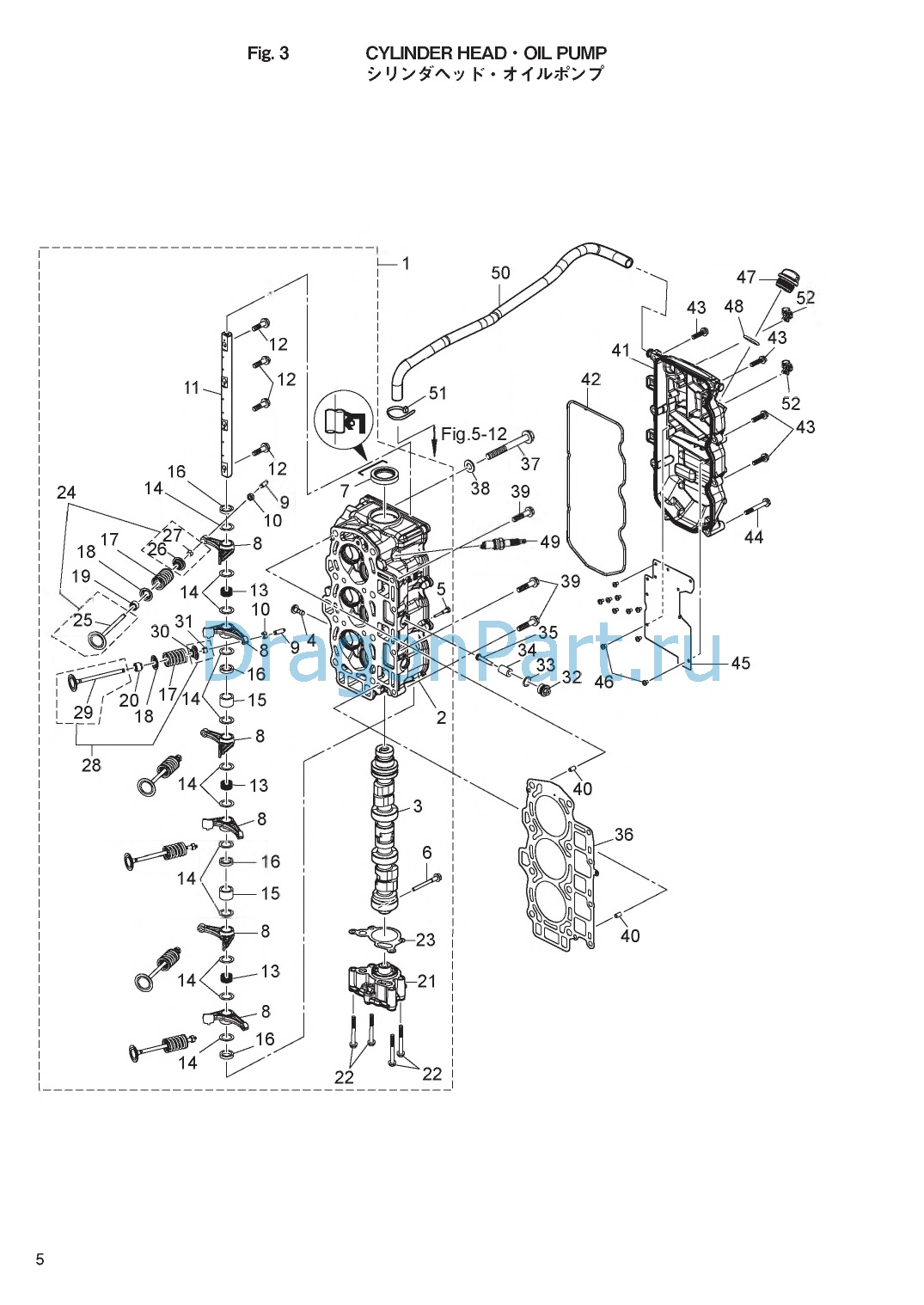

CYLINDER HEAD OIL PUMP для Tohatsu MFS40A - 2017 года выпуска
-
№АртикулНазвание
-
13KYB01000-0 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
23KYB01001-0 * CYLINDER HEAD ASSY
Valve Guide Valve Seat* CYLINDER HEAD ASSY
Valve Guide Valve Seat -
33KY-07810-0 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
43KY-07960-0 * LIFTER* LIFTER
-
53KY-07962-0 * LIFTER BOLT* LIFTER BOLT
-
63KY-07950-0 * THRUST BOLT* THRUST BOLT
-
73V1-00121-0 * OIL SEAL 30-45-8* OIL SEAL 30-45-8
-
83KY-07935-0 * ROCKER ARM* ROCKER ARM
-
93R0-07238-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
103H8-07237-0 * ADJUSTING NUT* ADJUSTING NUT
-
113KY-07920-0 * ROCKER ARM SHAFT* ROCKER ARM SHAFT
-
123KY-07922-0 * ROCKER SHAFT BOLT* ROCKER SHAFT BOLT
-
133KY-07925-0 * ROCKER SHAFT SPRING* ROCKER SHAFT SPRING
-
143KY-07927-0 * WASHER 16-23-0.5* WASHER 16-23-0.5
-
153KY-07939-0 * COLLAR 16-21.7-14.25* COLLAR 16-21.7-14.25
-
163KZ-07939-0 * COLLAR 16-21.7-4.25* COLLAR 16-21.7-4.25
-
173KY-07903-0 * VALVE SPRING* VALVE SPRING
-
183KY-07905-0 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
193R3-07204-0 * INTAKE VALVE STEM SEAL
Black* INTAKE VALVE STEM SEAL
Black -
203R3-07206-0 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
213KY-07600-0 * OIL PUMP ASSY* OIL PUMP ASSY
-
229101E3-5650 * BOLT* BOLT
-
233KY-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
243KY-07895-1 * INTAKE VALVE KIT* INTAKE VALVE KIT
-
253KY-07901-0 ** INTAKE VALVE d32** INTAKE VALVE d32
-
263KY-07921-0 ** RETAINER** RETAINER
-
273KY-07923-0 ** COTTER** COTTER
-
283KY-07896-1 * EXHAUST VALVE KIT* EXHAUST VALVE KIT
-
293KY-07902-0 ** EXHAUST VALVE 028** EXHAUST VALVE 028
-
303KY-07921-0 ** RETAINER** RETAINER
-
313KY-07923-0 ** COTTER** COTTER
-
323P0-01143-0 ANODE PLUGANODE PLUG
-
333T5-10046-0 O-RING 1.9-13O-RING 1.9-13
-
343P0-60218-0 ANODEANODE
-
35921503-0530 SCREWSCREW
-
363KY-01005-0 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
373KY-01013-0 CYLINDER HEAD BOLT M10-90CYLINDER HEAD BOLT M10-90
-
38940221-1000 WASHERWASHER
-
393BJ-61017-1 BOLT 8-P1.25BOLT 8-P1.25
-
40345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
413KYB01020-0 CYLINDER HEAD COVER ASSYCYLINDER HEAD COVER ASSY
-
423KY-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
43910103-5625 BOLTBOLT
-
44910103-5645 BOLTBOLT
-
453KY-07731-0 BREATHER CHAMBER COVERBREATHER CHAMBER COVER
-
46921521-0408 SCREWSCREW
-
473R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
483R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
499701-1-1121 SPARK PLUG (IKR6G8)
NGKSPARK PLUG (IKR6G8)
NGK -
503KY-07735-0 BREATHER HOSE
Cylinder Head Cover -Intake SilencerBREATHER HOSE
Cylinder Head Cover -Intake Silencer -
513T5-84398-0 BAND 104BAND 104
-
523KY-84398-0 BANDBAND
