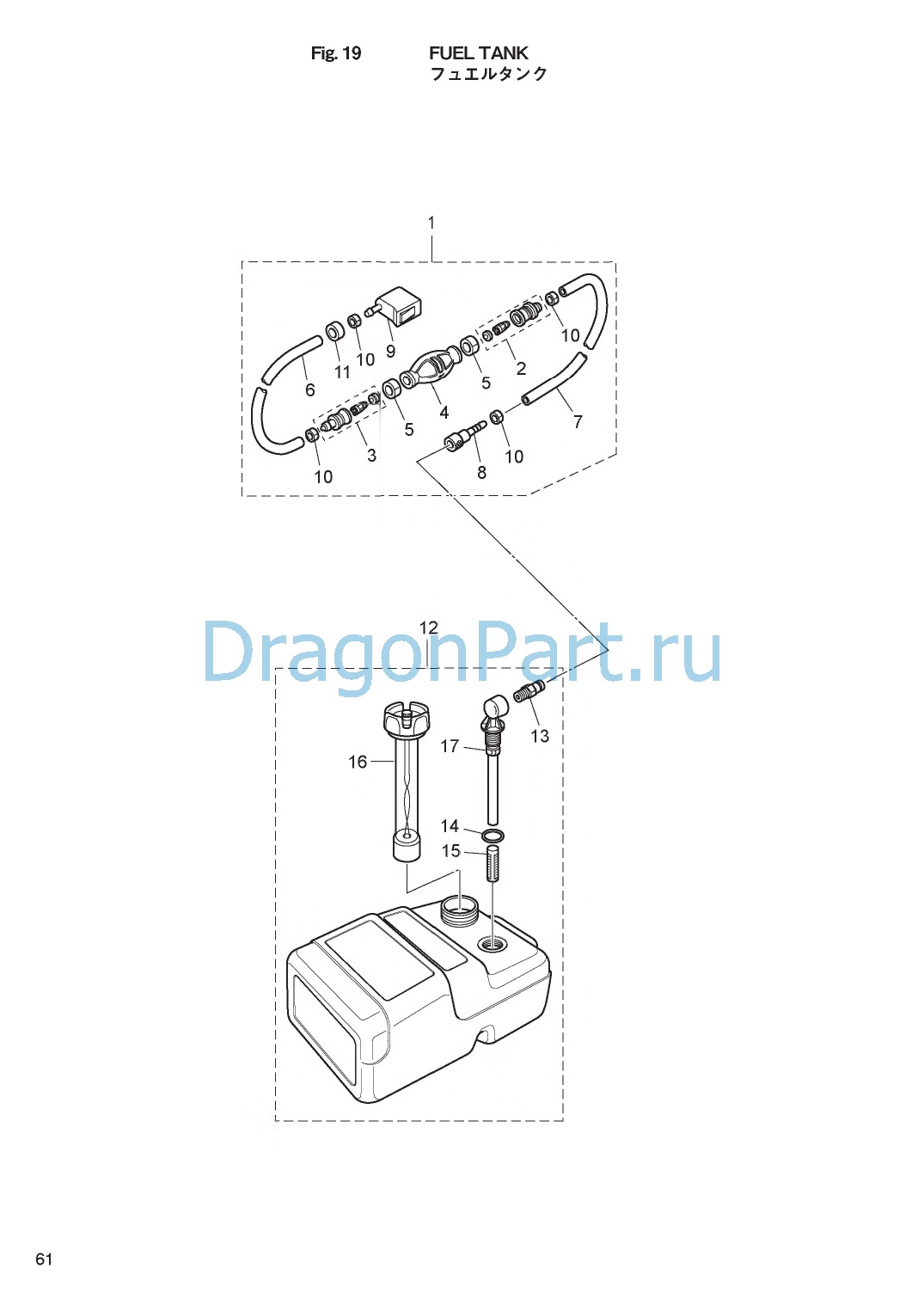

FUEL TANK для Tohatsu MFS40A - 2017 года выпуска

№

Артикул

Название
1

3AD-70200-2 PRIMER BULB ASSY
Low Permeation Parts for USA Model

PRIMER BULB ASSY
Low Permeation Parts for USA Model

14 740 ₽
1

3H6-70200-2 PRIMER BULB ASSY
STD

PRIMER BULB ASSY
STD

15 180 ₽
2

3C7-70220-1 * JOINT ASSY (INLET)

* JOINT ASSY (INLET)

800 ₽
3

3C7-70224-1 * JOINT ASSY (OUTLET)

* JOINT ASSY (OUTLET)

800 ₽
4

3GF-70211-1 * PRIMER BULB
Low Permeation Parts for USA Model

* PRIMER BULB
Low Permeation Parts for USA Model

5 810 ₽
4

3C7-70211-1 * PRIMER BULB
STD

* PRIMER BULB
STD

1 710 ₽
5

3C7-70217-0 * CLAMP

* CLAMP

280 ₽
6

3GF-70241-1 * LOW PERMEATION HOSE L=700
Low Permeation Parts for USA Model

* LOW PERMEATION HOSE L=700
Low Permeation Parts for USA Model

2 960 ₽
6

98AB-70-700 * HOSE
STD 98AB-701000

* HOSE
STD 98AB-701000

800 ₽
7

3GF-70240-1 * LOW PERMEATION HOSE L=1600
Low Permeation Parts for USA Model

* LOW PERMEATION HOSE L=1600
Low Permeation Parts for USA Model

5 900 ₽
7

98AB-701600 * HOSE
STD 98AB-701000x2

* HOSE
STD 98AB-701000x2

950 ₽
8

3GF-70281-0 * FUEL CONNECTOR
Tank Side

* FUEL CONNECTOR
Tank Side

2 790 ₽
9

3GR-70250-0 * FUEL CONNECTOR
Engine Side

* FUEL CONNECTOR
Engine Side

3 850 ₽
10

332-70201-0 * CLAMP

* CLAMP

270 ₽
11

3GR-70280-0 * FUEL CONNECTOR MARK
Low Permeation Parts for USA Model

* FUEL CONNECTOR MARK
Low Permeation Parts for USA Model

330 ₽
12

3C7-70177-1 FUEL TANK ASSY 25L
except USA Model

FUEL TANK ASSY 25L
except USA Model

18 450 ₽
13

3E0-70270-0 * QUICK-CONNECTOR (MALE)

* QUICK-CONNECTOR (MALE)

2 730 ₽
14

3C7-70199-0 * O-RING

* O-RING

270 ₽
15

3C7-70113-0 * FILTER

* FILTER

710 ₽
16

3C7-70050-2 * FUEL GAUGE VENT CAP ASSY (25L)

* FUEL GAUGE VENT CAP ASSY (25L)

3 420 ₽
17

3C7-70155-0 * PICK-UP ELBOW ASSY (25L)

* PICK-UP ELBOW ASSY (25L)

1 380 ₽
