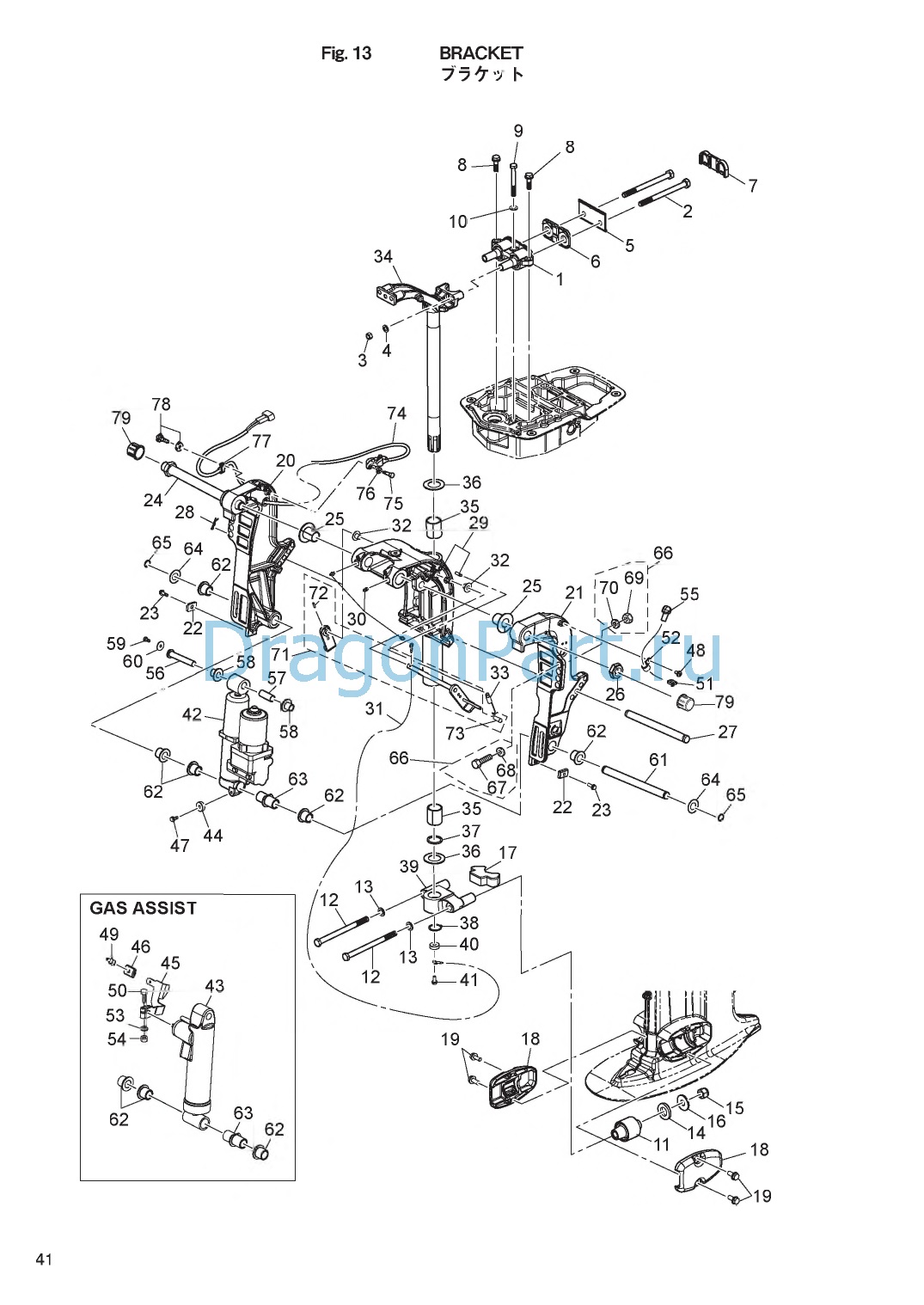

BRACKET для Tohatsu MFS50A - 2017 года выпуска

№

Артикул

Название
1

3KY-61301-0 RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

7 250 ₽
2

3KY-61307-1 BOLT M10P1.25-130

BOLT M10P1.25-130

1 490 ₽
3

3B7-61114-0 NUT 10-P1.25

NUT 10-P1.25

190 ₽
4

940203-1000 WASHER

WASHER

70 ₽
5

3KY-61335-0 LOCK PLATE

LOCK PLATE

1 420 ₽
6

3KY-61333-0 DAMPER (UPPER)
Front Side

DAMPER (UPPER)
Front Side

880 ₽
7

3KY-61339-0 DAMPER (UPPER)
Rear Side

DAMPER (UPPER)
Rear Side

1 490 ₽
8

9101E3-5830 BOLT *

BOLT *

740 ₽
9

3KY-61343-0 BOLT M8-70 *'M

BOLT M8-70 *'M

780 ₽
10

9402E3-0800 WASHER Or/Y

WASHER Or/Y

170 ₽
11

3KY-61302-0 RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

3 800 ₽
12

3KY-61321-0 BOLT M12.P1.25-177.5

BOLT M12.P1.25-177.5

1 750 ₽
13

353-61334-0 WASHER 13-34-3
Bolt Side

WASHER 13-34-3
Bolt Side

860 ₽
14

3C7-61338-0 DAMPER 21-36-5

DAMPER 21-36-5

960 ₽
15

3R0-61324-0 NYLON NUT 12-P1.25

NYLON NUT 12-P1.25

580 ₽
16

9402E3-1200 WASHER
Nut Side

WASHER
Nut Side

250 ₽
17

3KY-61336-0 DAMPER
Mount Bracket

DAMPER
Mount Bracket

1 210 ₽
18

3KYQ61342-0 MOUNT HOLDING PLATE (LOWER)
3KYW61342-0 for White Color Model

MOUNT HOLDING PLATE (LOWER)
3KYW61342-0 for White Color Model

3 950 ₽
19

9101E3-5820 BOLT

BOLT

320 ₽
20

3KYQ77211-0 CLAMP BRACKET (PTT-R)
3KYW77211-0 for White Color Model

CLAMP BRACKET (PTT-R)
3KYW77211-0 for White Color Model

22 610 ₽
21

3KYQ77212-0 CLAMP BRACKET (PTT-L)
3KYW77212-0 for White Color Model

CLAMP BRACKET (PTT-L)
3KYW77212-0 for White Color Model

22 610 ₽
22

3H6-60218-0 ANODE
Clamp Bracket

ANODE
Clamp Bracket

980 ₽
23

910103-5620 BOLT

BOLT

170 ₽
24

3AD-62191-0 SWIVEL BRACKET SHAFT ASSY

SWIVEL BRACKET SHAFT ASSY

4 780 ₽
25

3KY-77213-0 BUSHING

BUSHING

410 ₽
26

346-62124-1 NYLON NUT 7/8-14

NYLON NUT 7/8-14

1 630 ₽
27

3R0-77118-0 PTT THRUST ROD

PTT THRUST ROD

2 670 ₽
28

951603-1000 SNAP PIN

SNAP PIN

120 ₽
29

3KZQ77208-0 SWIVEL BRACKET ASSY
3KZW77208-0 for White Color Model

SWIVEL BRACKET ASSY
3KZW77208-0 for White Color Model

35 910 ₽
29

3KYQ77208-0 SWIVEL BRACKET ASSY
3KYW77208-0 for White Color Model

SWIVEL BRACKET ASSY
3KYW77208-0 for White Color Model

37 180 ₽
30

344-67177-1 GREASE FITTING

GREASE FITTING

380 ₽
31

3C8-62396-1 GROUND L=210

GROUND L=210

550 ₽
32

353-63207-0 COLLAR 10.2-12-12

COLLAR 10.2-12-12

260 ₽
33

3R0-62473-0 TILT STOPPER SPRING

TILT STOPPER SPRING

550 ₽
34

3KZQ62010-0 STEERING SHAFT ASSY
3KZW62010-0 for White Color Model

STEERING SHAFT ASSY
3KZW62010-0 for White Color Model

36 180 ₽
34

3KYQ62010-0 STEERING SHAFT ASSY
3KYW62010-0 for White Color Model

STEERING SHAFT ASSY
3KYW62010-0 for White Color Model

36 180 ₽
35

353-62417-0 BUSHING 30-36-41

BUSHING 30-36-41

550 ₽
36

353-62423-1 THRUST PLATE (UPPER) 31-50-2
Upper & Lower

THRUST PLATE (UPPER) 31-50-2
Upper & Lower

420 ₽
37

353-62415-0 O-RING 3.5-29.7

O-RING 3.5-29.7

230 ₽
38

945103-2800 C-RING d=28

C-RING d=28

280 ₽
39

3KYQ61411-0 MOUNT BRACKET
3KYW61411-0 for White Color Model

MOUNT BRACKET
3KYW61411-0 for White Color Model

14 600 ₽
40

338-60218-2 ANODE
Mount Bracket

ANODE
Mount Bracket

1 140 ₽
41

910103-5616 BOLT

BOLT

140 ₽
42

3Z5-77150-2 PTT ASSY
for PTT Model

PTT ASSY
for PTT Model

210 620 ₽
43

3Z5-77601-0 GAS SHOCK ABSORBER
for Gas Assist Model

GAS SHOCK ABSORBER
for Gas Assist Model

70 410 ₽
44

338-60218-2 ANODE
for PTT Model

ANODE
for PTT Model

1 140 ₽
45

3R0-66311-0 REVERSE LOCK LEVER
for Gas Assist Model

REVERSE LOCK LEVER
for Gas Assist Model

3 570 ₽
46

3AL-66333-0 REVERSE LOCK LEVER GRIP
for Gas Assist Model

REVERSE LOCK LEVER GRIP
for Gas Assist Model

450 ₽
47

910103-5616 BOLT
for PTT Model

BOLT
for PTT Model

140 ₽
48

921503-5612 SCREW
for PTT Model

SCREW
for PTT Model

120 ₽
49

346-66334-0 STOPPER
for Gas Assist Model

STOPPER
for Gas Assist Model

150 ₽
50

3V2-60001-0 BOLT 6-35
for Gas Assist Model

BOLT 6-35
for Gas Assist Model

360 ₽
51

3Z0-84398-0 BAND 203
for PTT Model

BAND 203
for PTT Model

120 ₽
52

345-06915-0 CLAMP 6.5-14L
for PTT Model

CLAMP 6.5-14L
for PTT Model

370 ₽
53

9401E3-0600 WASHER
for Gas Assist Model

WASHER
for Gas Assist Model

120 ₽
54

9301E3-0600 NUT
for Gas Assist Model

NUT
for Gas Assist Model

90 ₽
55

3Y1-76145-0 TERMINAL CAP 8-13-28
Red for PTT Model

TERMINAL CAP 8-13-28
Red for PTT Model

290 ₽
56

3KY-77071-0 CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

1 040 ₽
57

3R0-77075-0 BUSHING 13-16-40

BUSHING 13-16-40

390 ₽
58

3KY-77075-0 BUSHING 13-17-19.5 18-24-22

BUSHING 13-17-19.5 18-24-22

280 ₽
59

910103-0612 BOLT

BOLT

120 ₽
60

345-05122-1 WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

570 ₽
61

3KY-77101-0 CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

4 420 ₽
62

3KY-77076-0 BUSHING 18-24-22

BUSHING 18-24-22

330 ₽
63

3KY-77103-0 BUSHING 18-24-57.5 18-24-60

BUSHING 18-24-57.5 18-24-60

440 ₽
64

3R0-77112-0 WASHER 18.2-34-1

WASHER 18.2-34-1

270 ₽
65

945103-1800 C-RING d=18

C-RING d=18

210 ₽
66

3AD-72120-0 RIGGING BOLT SET

RIGGING BOLT SET

6 210 ₽
67

3C7-62133-2 * BOLT 12-105 P1.25

* BOLT 12-105 P1.25

960 ₽
68

353-61334-0 * WASHER 13-34-3

* WASHER 13-34-3

860 ₽
69

3C7-62139-1 * NUT 12-P1.25

* NUT 12-P1.25

250 ₽
70

9401E3-1200 * WASHER

* WASHER

190 ₽
71

3GF-62466-1 TILT STOPPER KIT
for PTT Model two holes

TILT STOPPER KIT
for PTT Model two holes

8 190 ₽
71

3AC-62466-1 TILT STOPPER KIT
for Gas Assist Model non hole

TILT STOPPER KIT
for Gas Assist Model non hole

8 190 ₽
72

951403-3516 * SPRING PIN 3.5-16

* SPRING PIN 3.5-16

120 ₽
73

369-62433-1 * TILT STOPPER GRIP

* TILT STOPPER GRIP

200 ₽
74

3Z4-72574-0 TRIM SENSOR L=1700

TRIM SENSOR L=1700

24 800 ₽
75

910103-0620 BOLT

BOLT

140 ₽
76

3C8-66308-0 WASHER 6-16-1.5

WASHER 6-16-1.5

140 ₽
77

336-06973-0 CLAMP 6-9.5L

CLAMP 6-9.5L

290 ₽
78

921503-5612 SCREW

SCREW

120 ₽
79

346-62127-0 CAP NUT
OPT

CAP NUT
OPT

200 ₽
