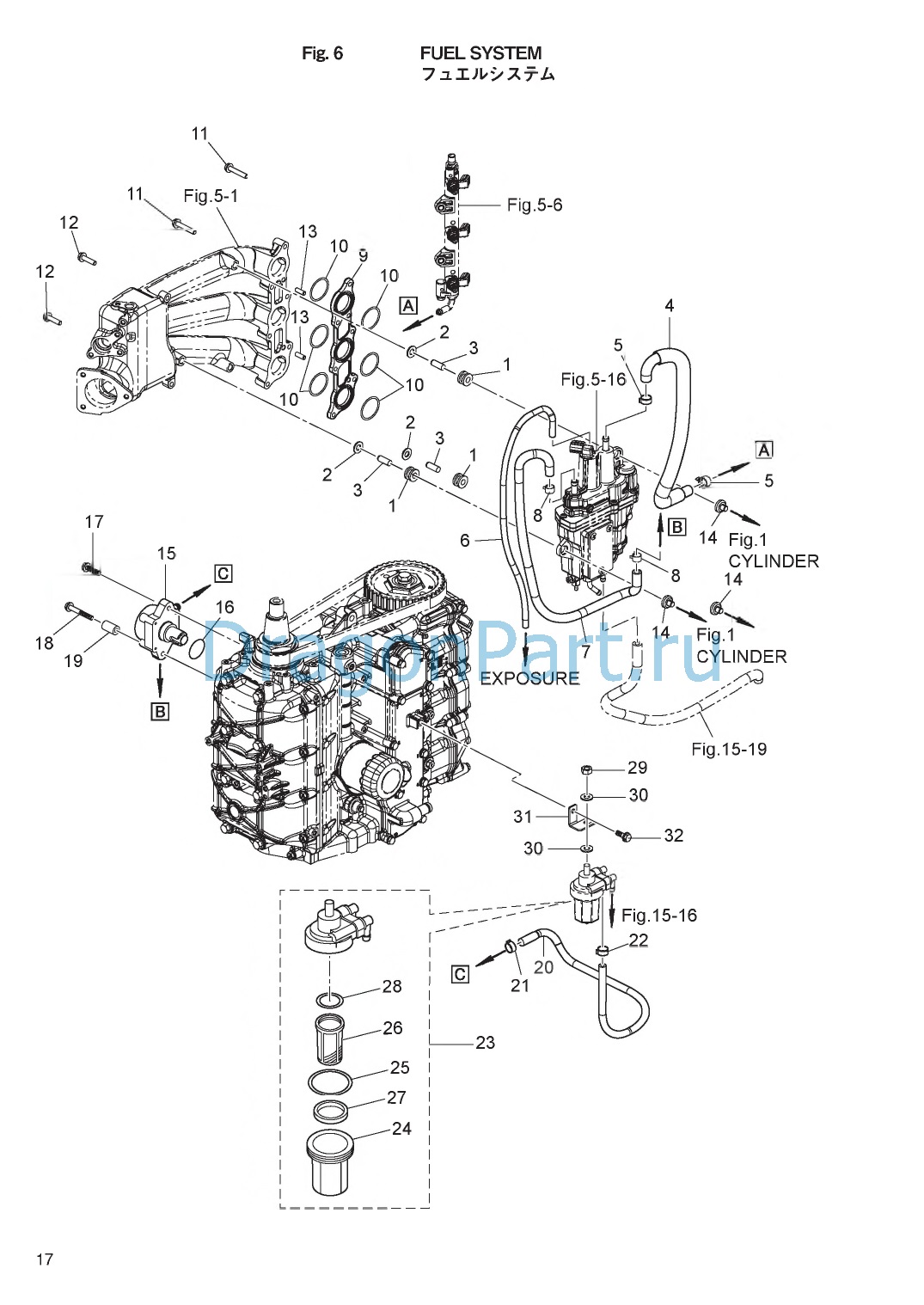

FUEL SYSTEM для Tohatsu MFS50A - 2017 года выпуска
-
№АртикулНазвание
-
13KY-06920-0 RUBBER MOUNTRUBBER MOUNT
-
2940103-0800 WASHERWASHER
-
33KY-01080-0 PIN 08-22PIN 08-22
-
43KY-02165-0 FUEL HOSE W/PROTECTOR
V/Separator-Fuel Rail EPA-KRI-15GFUEL HOSE W/PROTECTOR
V/Separator-Fuel Rail EPA-KRI-15G -
53AC-10087-0 CLAMP 016.8CLAMP 016.8
-
63KY-02203-0 FUEL HOSE 4-9
V/Separator-ExposureFUEL HOSE 4-9
V/Separator-Exposure -
73KY-04077-0 FUEL HOSE W/PROTECTOR
Low Permeation Part EPA-KRI-15GFUEL HOSE W/PROTECTOR
Low Permeation Part EPA-KRI-15G -
73KY-04085-0 FUEL HOSE W/PROTECTOR
Fuel Pump-V/separator STDFUEL HOSE W/PROTECTOR
Fuel Pump-V/separator STD -
8345-70114-1 CLIP d11.3CLIP d11.3
-
93KY-03952-0 INSULATORINSULATOR
-
103KY-02012-0 O-RING 1.9-33.2O-RING 1.9-33.2
-
11910103-5635 BOLTBOLT
-
12910103-5625 BOLTBOLT
-
133B2-01111-0 DOWEL PIN 6-16DOWEL PIN 6-16
-
143KY-10155-0 BUSHINGBUSHING
-
153KY-04000-0 FUEL PUMP ASSYFUEL PUMP ASSY
-
163KY-62415-0 O-RING 3.5-25.7O-RING 3.5-25.7
-
17910103-5625 BOLTBOLT
-
18910103-5645 BOLTBOLT
-
193KY-02605-0 SPACER 6.2-13-22SPACER 6.2-13-22
-
203KY-04060-0 LOW PERMEATION HOSE
Low Permeation Part USA EPA-KRI-15GLOW PERMEATION HOSE
Low Permeation Part USA EPA-KRI-15G -
203KY-02211-0 FUEL HOSE
Fuel Filter-Fuel Pump STDFUEL HOSE
Fuel Filter-Fuel Pump STD -
21345-70114-1 CLIP d11.3CLIP d11.3
-
223GT-35143-0 CLIP d9.4CLIP d9.4
-
233T5-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
243B7-02237-0 * CUP* CUP
-
253B7-02235-0 * O-RING* O-RING
-
263B7-02234-0 * FILTER* FILTER
-
273T5-02229-0 * FLOAT* FLOAT
-
283B7-02236-0 * O-RING* O-RING
-
29930103-0800 NUTNUT
-
30940103-0800 WASHERWASHER
-
313KY-02239-0 PLATEPLATE
-
32910103-5612 BOLTBOLT
