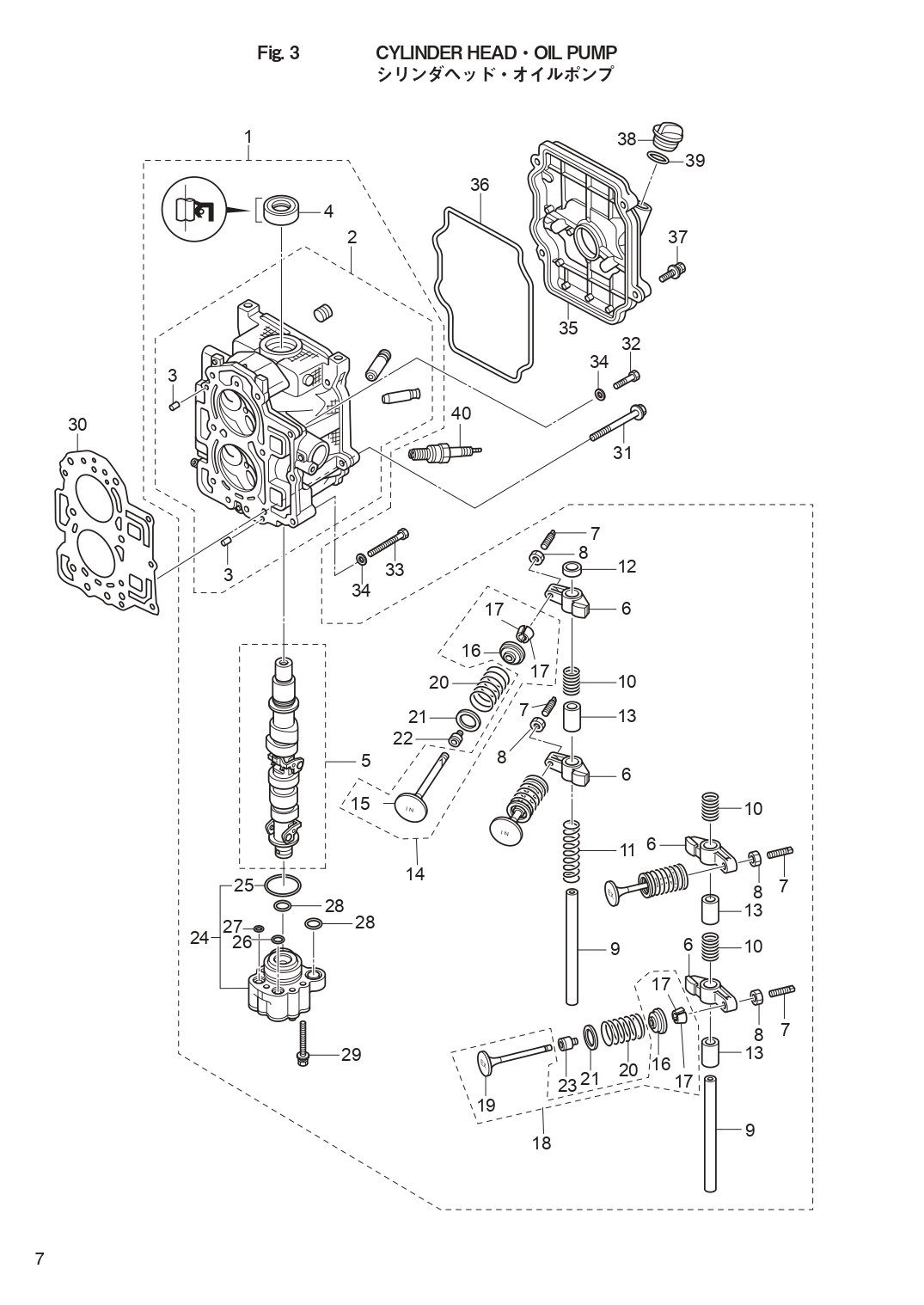

CYLINDER HEAD OIL PUMP для Tohatsu MFS9.9D - 2017 года выпуска
-
№АртикулНазвание
-
13BKB01000-1 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
23BKB01001-1 * CYLINDER HEAD ASSY* CYLINDER HEAD ASSY
-
3345-01111-1 ** DOWEL PIN 6-12** DOWEL PIN 6-12
-
43H8-07025-1 * OIL SEAL 18-35-8* OIL SEAL 18-35-8
-
53BK-07810-1 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
63AE-07935-0 * ROCKER ARM* ROCKER ARM
-
73R0-07238-1 * ADJUSTING SCREW* ADJUSTING SCREW
-
83H8-07237-1 * ADJUSTING NUT* ADJUSTING NUT
-
93Y2-07920-1 * ROCKER ARM SHAFT* ROCKER ARM SHAFT
-
103H8-07225-1 * ROCKER SHAFT SPRING L=30* ROCKER SHAFT SPRING L=30
-
113H8-07229-1 * ROCKER SHAFT SPRING L=50* ROCKER SHAFT SPRING L=50
-
123R3-07227-1 * WASHER 13.2-21.8-2* WASHER 13.2-21.8-2
-
133H8-07239-1 * COLLAR 13.1-15.9-22.5* COLLAR 13.1-15.9-22.5
-
143AE-07895-1 * INTAKE VALVE KIT* INTAKE VALVE KIT
-
153AE-07901-1 ** INTAKE VALVE** INTAKE VALVE
-
163AE-07921-1 ** RETAINER** RETAINER
-
173AE-07923-1 ** COTTER** COTTER
-
183AE-07896-1 * EXHAUST VALVE KIT* EXHAUST VALVE KIT
-
193AE-07902-1 ** EXHAUST VALVE** EXHAUST VALVE
-
203AE-07203-1 * VALVE SPRING L=35* VALVE SPRING L=35
-
213H6-07205-1 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
223R3-07204-1 * INTAKE VALVE STEM SEAL
Black* INTAKE VALVE STEM SEAL
Black -
233R3-07206-1 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
243H8-07600-1 * OIL PUMP ASSY* OIL PUMP ASSY
-
253H8-07639-1 ** O-RING** O-RING
-
263H8-07632-1 * O-RING 1.5-10.7* O-RING 1.5-10.7
-
273H8-07631-1 * O-RING 1.5-8.5* O-RING 1.5-8.5
-
283H8-07635-1 * O-RING 1.5-15.5* O-RING 1.5-15.5
-
299101F4-5634 * BOLT* BOLT
-
303BJ-01005-0 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
313H8-01013-0 CYLINDER HEAD BOLT 8-60CYLINDER HEAD BOLT 8-60
-
329161F4-0625 BOLTBOLT
-
339161F9-0640 BOLTBOLT
-
349401E3-0600 WASHERWASHER
-
353BKB01021-0 CYLINDER HEAD COVERCYLINDER HEAD COVER
-
363BJ-01024-0 CYLINDER HEAD COVER GASKET
RubberCYLINDER HEAD COVER GASKET
Rubber -
379101F4-5630 BOLTBOLT
-
383R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
393R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
409701-1-1103 SPARK PLUG(DCPR6E)
NGKSPARK PLUG(DCPR6E)
NGK
