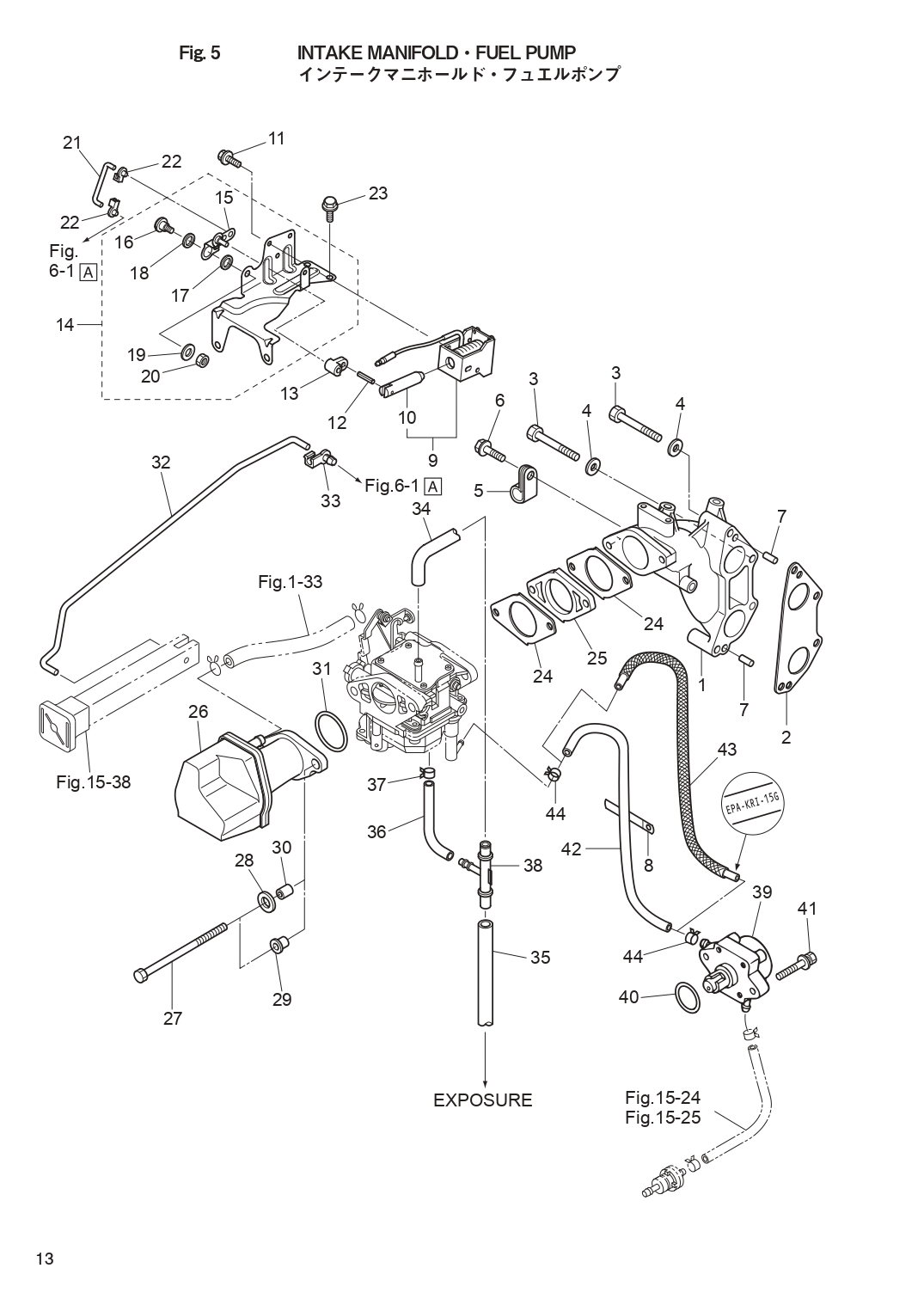

INTAKE MAINFOLD FUEL PUMP для Tohatsu MFS9.9D - 2017 года выпуска
-
№АртикулНазвание
-
13BJ-02091-0 INTAKE MANIFOLDINTAKE MANIFOLD
-
23BJ-02104-0 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
39161F4-0645 BOLTBOLT
-
49401E3-0600 WASHERWASHER
-
5345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
6910103-5612 BOLTBOLT
-
7345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
83PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
243BJ-02011-0 CARBURETOR GASKETCARBURETOR GASKET
-
253FS-03952-0 INSULATOR
9.9psINSULATOR
9.9ps -
263BJ-02409-0 INTAKE SILENCER ASSYINTAKE SILENCER ASSY
-
273R0-03215-0 BOLT 6-100BOLT 6-100
-
293BJ-06283-0 COLLAR 6.1-9-7.4
for MF/EF/EFT TypeCOLLAR 6.1-9-7.4
for MF/EF/EFT Type -
313BJ-02419-0 SEAL RING 2.4-35SEAL RING 2.4-35
-
323BH-67192-0 CHOKE ROD
for MF/EF/EFT TypeCHOKE ROD
for MF/EF/EFT Type -
333BJ-67196-0 ROD SNAP 3.2-2
for MF/EF/EFT TypeROD SNAP 3.2-2
for MF/EF/EFT Type -
343BJ-07735-1 BREATHER HOSE L=290BREATHER HOSE L=290
-
353BA-07735-0 BREATHER HOSE L=50BREATHER HOSE L=50
-
3698AL-30-200 HOSEHOSE
-
37369-70098-2 CLIP φ7CLIP φ7
-
383BJ-01176-1 NIPPLE 3.5-2-4.5NIPPLE 3.5-2-4.5
-
393H8-04000-1 FUEL PUMP ASSYFUEL PUMP ASSY
-
403H8-62415-0 O-RING 3.5-25.7O-RING 3.5-25.7
-
41910103-5625 BOLTBOLT
-
4298AB-50-260 HOSE
STD 98AB-501000HOSE
STD 98AB-501000 -
443GT-35143-0 CLIP φ9.4CLIP φ9.4
