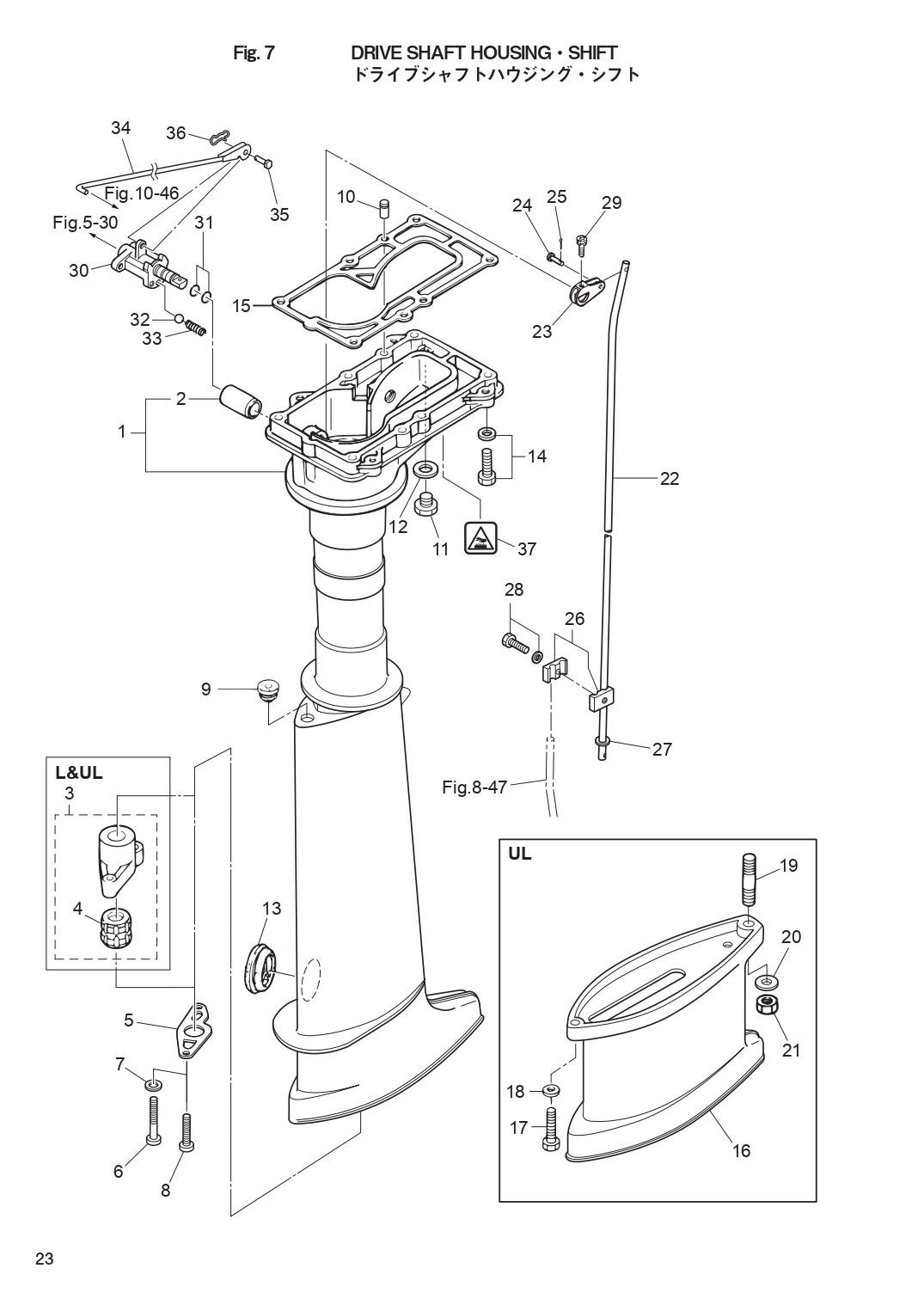

DRIVE SHAFT HOUSING SHIFT для Tohatsu MFS4C - 2019 года выпуска
-
№АртикулНазвание
-
13H6Q61020-3 DRIVE SHAFT HOUSING ASSY (S)
for Transom "S"DRIVE SHAFT HOUSING ASSY (S)
for Transom "S" -
13H6Q61030-4 DRIVE SHAFT HOUSING ASSY (L)
for Transom "L" use 369-60003-0DRIVE SHAFT HOUSING ASSY (L)
for Transom "L" use 369-60003-0 -
2301-61021-0 * BUSHING* BUSHING
-
3369-64331-2 DRIVE SHAFT BUSHING ASSY
Slate Color Bushing for Transom "L"DRIVE SHAFT BUSHING ASSY
Slate Color Bushing for Transom "L" -
4369-60003-0 * DRIVE SHAFT BUSHING
Slate Color for Transom "L"* DRIVE SHAFT BUSHING
Slate Color for Transom "L" -
5369-64332-1 STOPPERSTOPPER
-
63H6-64333-1 PRE-COATED SCREW 5-25
for Transom "L"&"UL"PRE-COATED SCREW 5-25
for Transom "L"&"UL" -
79401E3-0500 WASHER
for Transom "L"&"UL"WASHER
for Transom "L"&"UL" -
89215E3-0510 SCREW
for Transom "S"SCREW
for Transom "S" -
9369-66043-1 GROMMET 10.7-3.5GROMMET 10.7-3.5
-
10345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
119106E3-0808 BOLTBOLT
-
12332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
13369-61016-0 GROMMET 29-3GROMMET 29-3
-
149101E3-5630 BOLTBOLT
-
153H6-61012-0 DRIVE SHAFT HOUSING GASKETDRIVE SHAFT HOUSING GASKET
-
22369-66214-0 SHIFT ROD (S)
for Transom "S"SHIFT ROD (S)
for Transom "S" -
223GR-66215-0 SHIFT ROD (L)
for Transom "L"&"UL"SHIFT ROD (L)
for Transom "L"&"UL" -
23369-66225-0 SHIFT ROD LEVERSHIFT ROD LEVER
-
24369-66223-0 PINPIN
-
25951503-1210 SPLIT PINSPLIT PIN
-
26369-66241-0 SHIFT ROD JOINT ASSYSHIFT ROD JOINT ASSY
-
27940103-0600 WASHERWASHER
-
28910103-5616 BOLTBOLT
-
29910903-6416 BOLTBOLT
-
303GR-66130-0 SHIFT LEVER SHAFT ASSYSHIFT LEVER SHAFT ASSY
-
31301-66136-0 O-RING 1.9-8.8O-RING 1.9-8.8
-
323GR-66116-0 CERAMIC BALL 7.7CERAMIC BALL 7.7
-
333GR-66112-0 SPRINGSPRING
-
343GR-66134-1 SHIFT LEVER RODSHIFT LEVER ROD
-
353GR-66223-0 PINPIN
-
363EF-65307-0 SNAP PINSNAP PIN
-
373GR-76191-0 HIGH TEMPERATURE CAUTION DECALHIGH TEMPERATURE CAUTION DECAL
