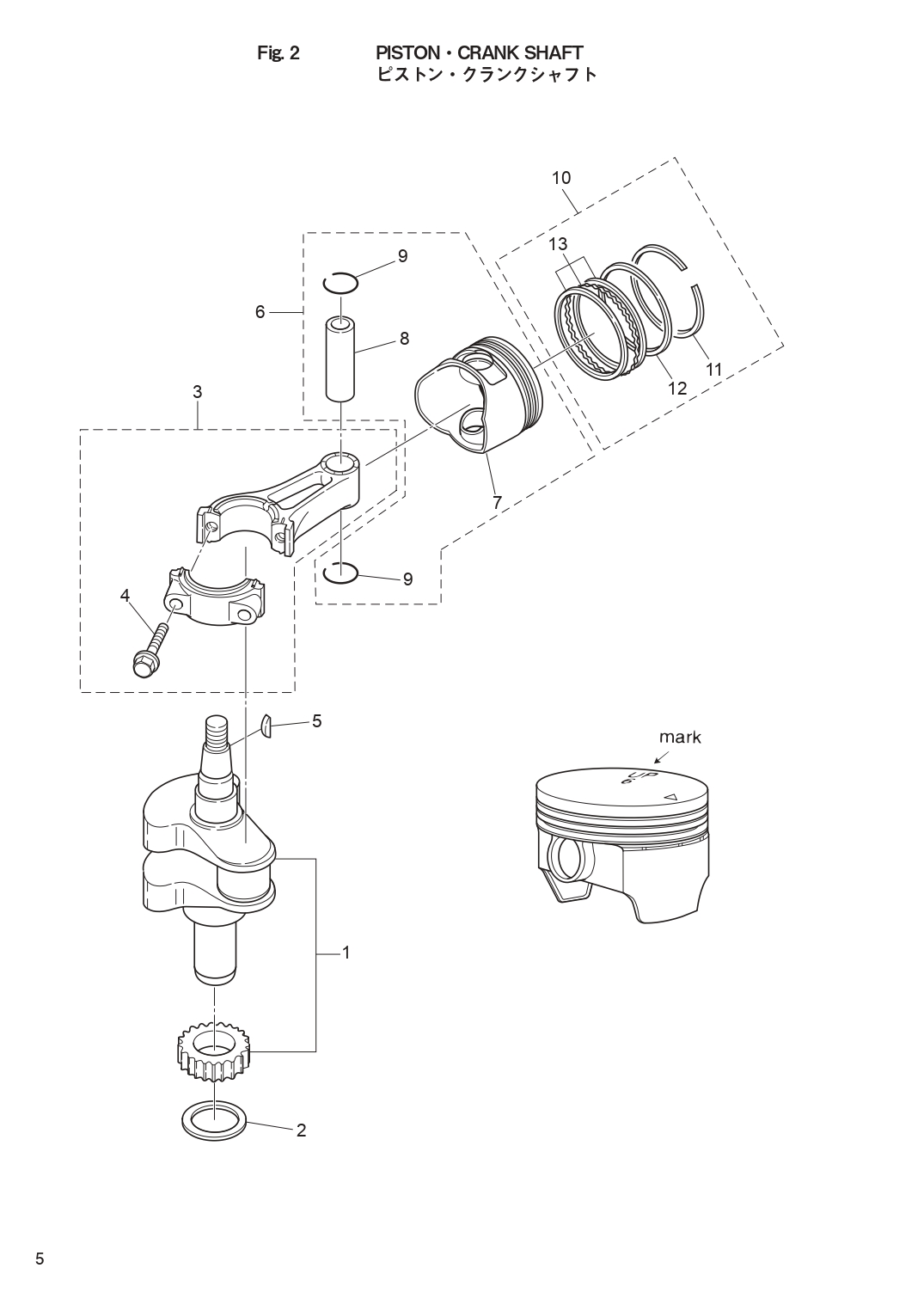

PISTON CRANK SHAFT для Tohatsu MFS4C - 2019 года выпуска
-
№АртикулНазвание
-
13H6-00030-0 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23H6-00115-0 THRUST PLATETHRUST PLATE
-
33H6-00040-1 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
43H6-00059-0 * CONNECTING ROD BOLT* CONNECTING ROD BOLT
-
5338-00131-0 KEY 16-5.7-4
MagnetoKEY 16-5.7-4
Magneto -
63JD-87130-0 PISTON REPAIR KIT
STDPISTON REPAIR KIT
STD -
63JD-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPTPISTON REPAIR KIT (0.5 O/S)
OPT -
73R4-00001-3 * PISTON
STD Mark 6* PISTON
STD Mark 6 -
73R4-00004-3 * PISTON (0.5 O/S)
OPT* PISTON (0.5 O/S)
OPT -
83AE-00021-0 * PISTON PIN* PISTON PIN
-
93H6-00024-0 * PISTON PIN CLIP* PISTON PIN CLIP
-
103JD-87123-0 PISTON RING SET
STDPISTON RING SET
STD -
103JD-87124-0 PISTON RING SET (0.5 O/S)
OPTPISTON RING SET (0.5 O/S)
OPT -
113H6-00011-0 * PISTON RING
STD 1st* PISTON RING
STD 1st -
113H6-00014-0 * PISTON RING (0.5 O/S)
OPT 1st* PISTON RING (0.5 O/S)
OPT 1st -
123H6-00012-0 * PISTON RING
STD 2nd* PISTON RING
STD 2nd -
123H6-00015-0 * PISTON RING (0.5 O/S)
OPT 2nd* PISTON RING (0.5 O/S)
OPT 2nd -
133H6-00013-0 * PISTON RING-OIL
STD Oil* PISTON RING-OIL
STD Oil -
133H6-00016-0 * PISTON RING-OIL (0.5 O/S)
OPT Oil* PISTON RING-OIL (0.5 O/S)
OPT Oil
