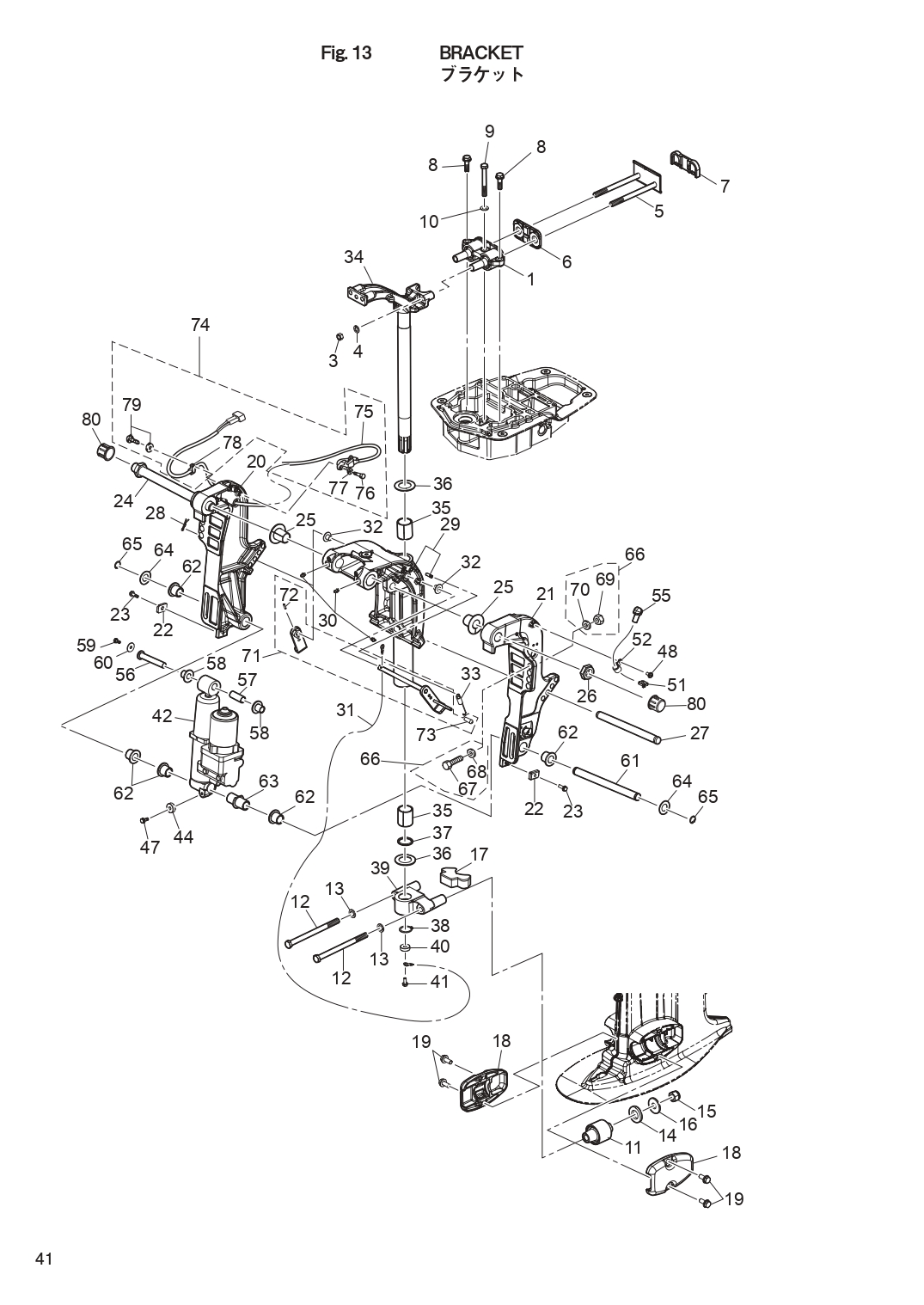

BRACKET для Tohatsu MFS60A - 2020 года выпуска
-
№АртикулНазвание
-
13KY-61301-1 RUBBER MOUNT (UPPER)RUBBER MOUNT (UPPER)
-
33B7-61114-0 NUT 10-P1.25 ﾅｯﾄ 10-P1.25NUT 10-P1.25 ﾅｯﾄ 10-P1.25
-
4940203-1000 WASHERWASHER
-
53KY-61326-0 LOCK PLATE W/BOLTLOCK PLATE W/BOLT
-
63KY-61333-0 DAMPER (UPPER)
Front SideDAMPER (UPPER)
Front Side -
73KY-61339-0 DAMPER (UPPER)
Rear SideDAMPER (UPPER)
Rear Side -
89101E3-5830 BOLTBOLT
-
93KY-61343-0 BOLT M8-70BOLT M8-70
-
109402E3-0800 WASHERWASHER
-
113KY-61302-0 RUBBER MOUNT (LOWER)RUBBER MOUNT (LOWER)
-
123KY-61321-0 BOLT M12,P1.25-177.5BOLT M12,P1.25-177.5
-
139402E3-1200 WASHER
Bolt SideWASHER
Bolt Side -
143C7-61338-0 DAMPER 21-36-5DAMPER 21-36-5
-
153R0-61324-0 NYLON NUT 12-P1.25NYLON NUT 12-P1.25
-
16353-61334-0 WASHER 13-34-3
Nut SideWASHER 13-34-3
Nut Side -
173KY-61336-0 DAMPER (LOWER)
Mount BracketDAMPER (LOWER)
Mount Bracket -
183KYQ61342-0 MOUNT HOLDING PLATE (LOWER)MOUNT HOLDING PLATE (LOWER)
-
183KYW61342-0 MOUNT HOLDING PLATE (LOWER)
for White ModelMOUNT HOLDING PLATE (LOWER)
for White Model -
199101E3-5820 BOLTBOLT
-
203KYQ77211-1 CLAMP BRACKET (PTT-R)CLAMP BRACKET (PTT-R)
-
203KYW77211-1 CLAMP BRACKET (PTT-R)
for White ModelCLAMP BRACKET (PTT-R)
for White Model -
213KYQ77212-1 CLAMP BRACKET (PTT-L)CLAMP BRACKET (PTT-L)
-
213KYW77212-1 CLAMP BRACKET (PTT-L)
for White ModelCLAMP BRACKET (PTT-L)
for White Model -
223H6-60218-0 ANODE
Clamp BracketANODE
Clamp Bracket -
23910103-5620 BOLTBOLT
-
243AD-62191-0 SWIVEL BRACKET SHAFT ASSYSWIVEL BRACKET SHAFT ASSY
-
253KY-77213-0 BUSHINGBUSHING
-
26346-62124-1 NYLON NUT 7/8-14NYLON NUT 7/8-14
-
273R0-77118-0 PTT THRUST RODPTT THRUST ROD
-
28951603-1000 SNAP PINSNAP PIN
-
293KYQ77208-1 SWIVEL BRACKET ASSY
for Transom "L,UL"SWIVEL BRACKET ASSY
for Transom "L,UL" -
293KYW77208-1 SWIVEL BRACKET ASSY
for Transom "L," for White ModelSWIVEL BRACKET ASSY
for Transom "L," for White Model -
30344-67177-1 GREASE FITTINGGREASE FITTING
-
313C8-62396-1 GROUND L=210
Swivel Bracket -Drive Shaft HousingGROUND L=210
Swivel Bracket -Drive Shaft Housing -
32353-63207-0 COLLAR 10.2-12-12COLLAR 10.2-12-12
-
333R0-62473-0 TILT STOPPER SPRINGTILT STOPPER SPRING
-
343KYQ62010-1 STEERING SHAFT ASSY
for Transom "L,UL"STEERING SHAFT ASSY
for Transom "L,UL" -
343KYW62010-1 STEERING SHAFT ASSY
for Transom "L," for White ModelSTEERING SHAFT ASSY
for Transom "L," for White Model -
35353-62417-0 BUSHING 30-36-41BUSHING 30-36-41
-
36353-62423-1 THRUST PLATE (UPPER) 31-50-2
Upper & LowerTHRUST PLATE (UPPER) 31-50-2
Upper & Lower -
37353-62415-0 O-RING 3.5-29.7O-RING 3.5-29.7
-
38945103-2800 C-RING d=28C-RING d=28
-
393KYQ61411-1 MOUNT BRACKETMOUNT BRACKET
-
40338-60218-2 ANODE
Mount BracketANODE
Mount Bracket -
41910103-5616 BOLTBOLT
-
423Z5-77150-2 PTT ASSY
for PTT ModelPTT ASSY
for PTT Model -
44338-60218-2 ANODE
for PTT ModelANODE
for PTT Model -
47910103-5616 BOLT
for PTT ModelBOLT
for PTT Model -
48921503-5612 SCREW
for PTT ModelSCREW
for PTT Model -
513Z0-84398-0 BAND 203
for PTT ModelBAND 203
for PTT Model -
52345-06915-0 CLAMP 6.5-14L
for PTT ModelCLAMP 6.5-14L
for PTT Model -
553Y1-76145-0 TERMINAL CAP 8-13-28
Red for PTT ModelTERMINAL CAP 8-13-28
Red for PTT Model -
563KY-77071-0 CYLINDER PIN (UPPER)CYLINDER PIN (UPPER)
-
573R0-77075-0 BUSHING 13-16-40BUSHING 13-16-40
-
583KY-77075-0 BUSHING 13-17-19.5 18-24-22BUSHING 13-17-19.5 18-24-22
-
59910103-0612 BOLTBOLT
-
60345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
613KY-77101-0 CYLINDER PIN (LOWER)CYLINDER PIN (LOWER)
-
623KY-77076-0 BUSHING 18-24-22BUSHING 18-24-22
-
633KY-77103-0 BUSHING 18-24-57.5 18-24-60BUSHING 18-24-57.5 18-24-60
-
643R0-77112-0 WASHER 18.2-34-1WASHER 18.2-34-1
-
65945103-1800 C-RING d=18C-RING d=18
-
663AD-72120-0 RIGGING BOLT SETRIGGING BOLT SET
-
673C7-62133-2 * BOLT 12-105 P1.25* BOLT 12-105 P1.25
-
68353-61334-0 * WASHER 13-34-3* WASHER 13-34-3
-
693C7-62139-1 * NUT 12-P1.25* NUT 12-P1.25
-
709401E3-1200 * WASHER* WASHER
-
713GF-62466-1 TILT STOPPER KITTILT STOPPER KIT
-
72951403-3516 * SPRING PIN 3.5-16* SPRING PIN 3.5-16
-
73369-62433-1 * TILT STOPPER GRIP* TILT STOPPER GRIP
-
743KY-72575-0 TRIM SENSOR KITTRIM SENSOR KIT
-
753Z4-72574-0 * TRIM SENSOR L=1700* TRIM SENSOR L=1700
-
76910103-0620 * BOLT* BOLT
-
773C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
78336-06973-0 * CLAMP 6-9.5L* CLAMP 6-9.5L
-
79921503-5612 * SCREW* SCREW
-
80346-62127-0 CAP NUT
OPTCAP NUT
OPT
