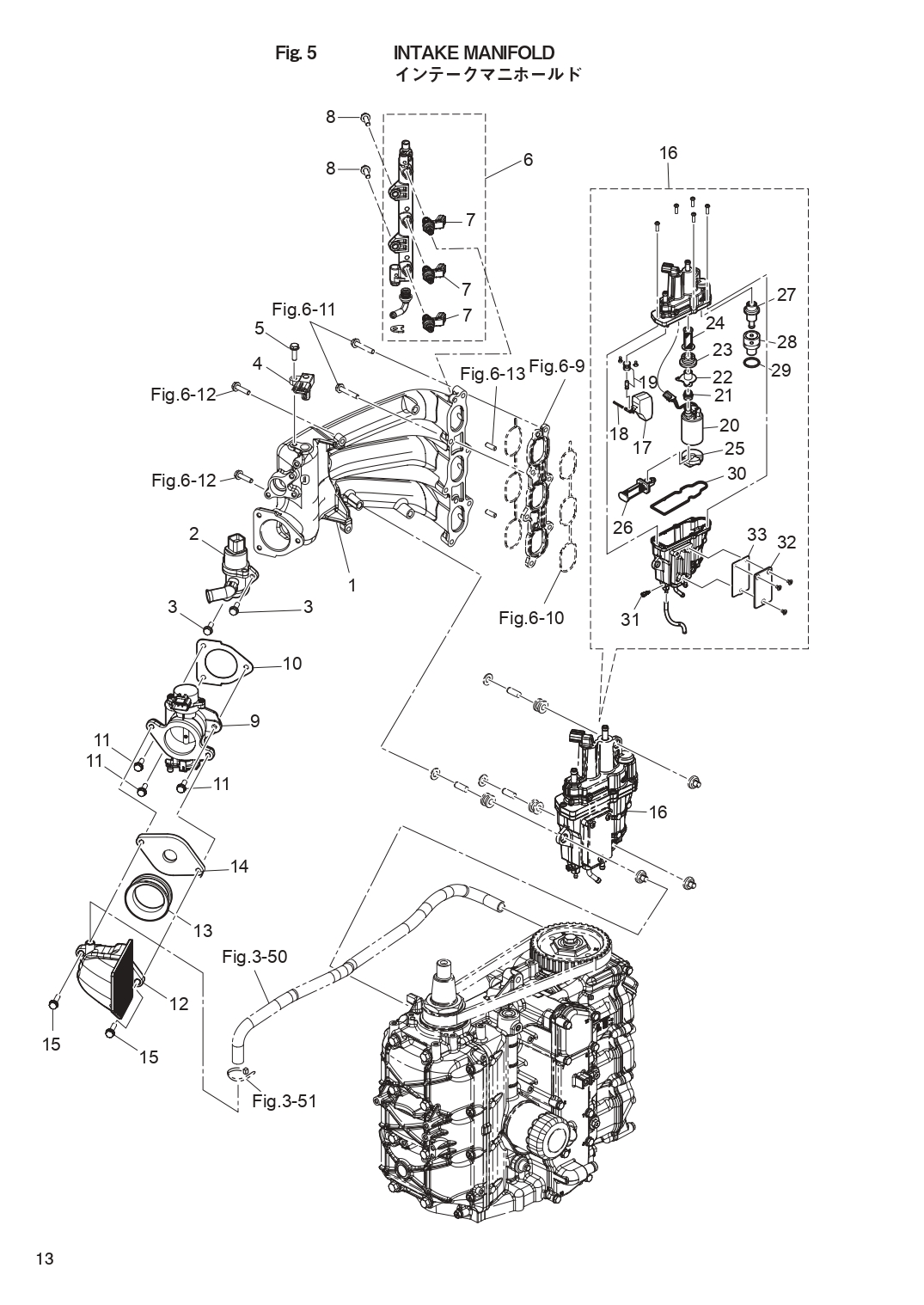

INTAKE MAINFOLD для Tohatsu MFS60A - 2020 года выпуска
-
№АртикулНазвание
-
13UR-02091-0 INTAKE MANIFOLDINTAKE MANIFOLD
-
23KY-10211-0 ISC VALVE
Idle Speed Control ValveISC VALVE
Idle Speed Control Valve -
3910103-5620 BOLTBOLT
-
43KY-10214-0 MAP SENSORMAP SENSOR
-
5910103-5620 BOLTBOLT
-
63KY-10200-0 FUEL RAIL ASSYFUEL RAIL ASSY
-
73KY-10300-0 * FUEL INJECTOR ASSY* FUEL INJECTOR ASSY
-
8910103-5620 BOLTBOLT
-
93UR-10100-0 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
103KY-10104-0 GASKETGASKET
-
11910103-5620 BOLTBOLT
-
123KY-02409-0 INTAKE SILENCER ASSYINTAKE SILENCER ASSY
-
133KY-02418-0 GASKETGASKET
-
15910103-5625 BOLTBOLT
-
163KY-10150-1 VAPOR SEPARATOR ASSYVAPOR SEPARATOR ASSY
-
173KY-03230-0 * FLOAT* FLOAT
-
183KY-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
193KY-03239-0 * FLOAT VALVE ASSY* FLOAT VALVE ASSY
-
203KY-04302-0 * FUEL FEED PUMP
Upper* FUEL FEED PUMP
Upper -
213KY-04319-1 * GROMMET
Upper* GROMMET
Upper -
223KY-04325-0 * FUEL FEED PUMP JOINT
Upper* FUEL FEED PUMP JOINT
Upper -
233KY-04313-0 * GROMMET
Upper* GROMMET
Upper -
243KY-04321-0 * FILTER (OUTLET)
Lower* FILTER (OUTLET)
Lower -
253KY-04314-0 * GROMMET
Lower* GROMMET
Lower -
263KY-04322-0 * FILTER (INLET)* FILTER (INLET)
-
273KY-10154-0 * FUEL REGULATOR* FUEL REGULATOR
-
283KY-10157-0 * HOLDER* HOLDER
-
293KY-10095-0 * O-RING* O-RING
-
303KY-03235-0 * O-RING* O-RING
-
313KY-03292-0 * DRAIN SCREW* DRAIN SCREW
-
323KY-10179-0 * COVER* COVER
-
333KY-10180-0 * SEAL* SEAL
