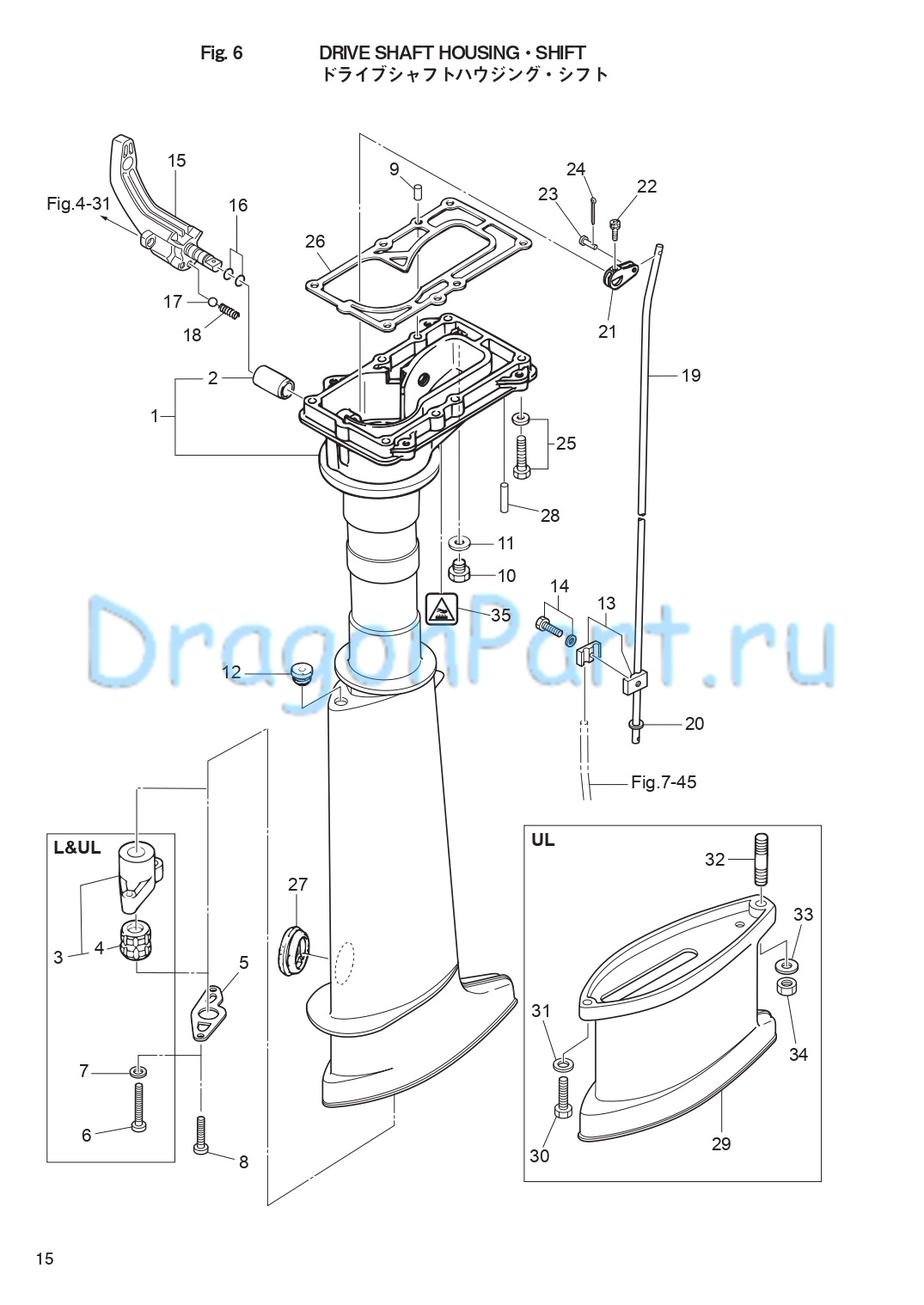

DRIVE SHAFT HOUSING SHIFT для Tohatsu M5B - 2021 года выпуска
-
№АртикулНазвание
-
1369Q61020-4 DRIVE SHAFT HOUSING ASSY (S)
for Transom "S"DRIVE SHAFT HOUSING ASSY (S)
for Transom "S" -
1369Q61030-6 DRIVE SHAFT HOUSING ASSY (L)
for Transom "L" & "UL"DRIVE SHAFT HOUSING ASSY (L)
for Transom "L" & "UL" -
2301-61021-0 * BUSHING* BUSHING
-
3369-64331-2 DRIVE SHAFT BUSHING ASSY
for Transom "L" & "UL"DRIVE SHAFT BUSHING ASSY
for Transom "L" & "UL" -
4369-60003-0 * DRIVE SHAFT BUSHING* DRIVE SHAFT BUSHING
-
5369-64332-1 STOPPERSTOPPER
-
63H6-64333-1 PRE-COATED SCREW 5-25
for Transom "L" & "UL"PRE-COATED SCREW 5-25
for Transom "L" & "UL" -
79401E3-0500 WASHERWASHER
-
8921553-0510 SCREW
for Transom "S"SCREW
for Transom "S" -
9345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
109106E3-0808 BOLTBOLT
-
11332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
12369-66043-1 GROMMET 10.7-3.5GROMMET 10.7-3.5
-
13369-66241-0 SHIFT ROD JOINT ASSYSHIFT ROD JOINT ASSY
-
14910103-5616 BOLTBOLT
-
15369-66110-4 SHIFT LEVERSHIFT LEVER
-
16301-66136-0 O-RING 1.9-8.8O-RING 1.9-8.8
-
17369-66116-0 CERAMIC BALL 7.7CERAMIC BALL 7.7
-
18369-66112-1 SPRINGSPRING
-
19369-66214-0 SHIFT ROD (S)
for Transom "S"SHIFT ROD (S)
for Transom "S" -
19369-66215-0 SHIFT ROD (L)
for Transom "L" & "UL"SHIFT ROD (L)
for Transom "L" & "UL" -
209401E3-0600 WASHERWASHER
-
21369-66225-0 SHIFT ROD LEVERSHIFT ROD LEVER
-
22910903-6416 BOLTBOLT
-
23369-66223-0 PINPIN
-
24951503-1210 SPLIT PINSPLIT PIN
-
259101E3-5630 BOLTBOLT
-
26369-61012-2 DRIVE SHAFT HOUSING GASKETDRIVE SHAFT HOUSING GASKET
-
27369-61016-0 GROMMET 29-3GROMMET 29-3
-
28369-61097-0 WATER OUTLET HOSEWATER OUTLET HOSE
-
29369Q61110-2 EXTENSION HOUSING
for Transom "UL"EXTENSION HOUSING
for Transom "UL" -
309161E3-0625 BOLT
for Transom "UL"BOLT
for Transom "UL" -
319401E3-0600 WASHER
for Transom "UL"WASHER
for Transom "UL" -
329152E3-0825 STUD
for Transom "UL"STUD
for Transom "UL" -
339401E3-0800 WASHER
for Transom "UL"WASHER
for Transom "UL" -
34930103-0800 NUT
for Transom "UL"NUT
for Transom "UL" -
353GR-76191-0 HIGH TEMPERATURE CAUTION DECALHIGH TEMPERATURE CAUTION DECAL
