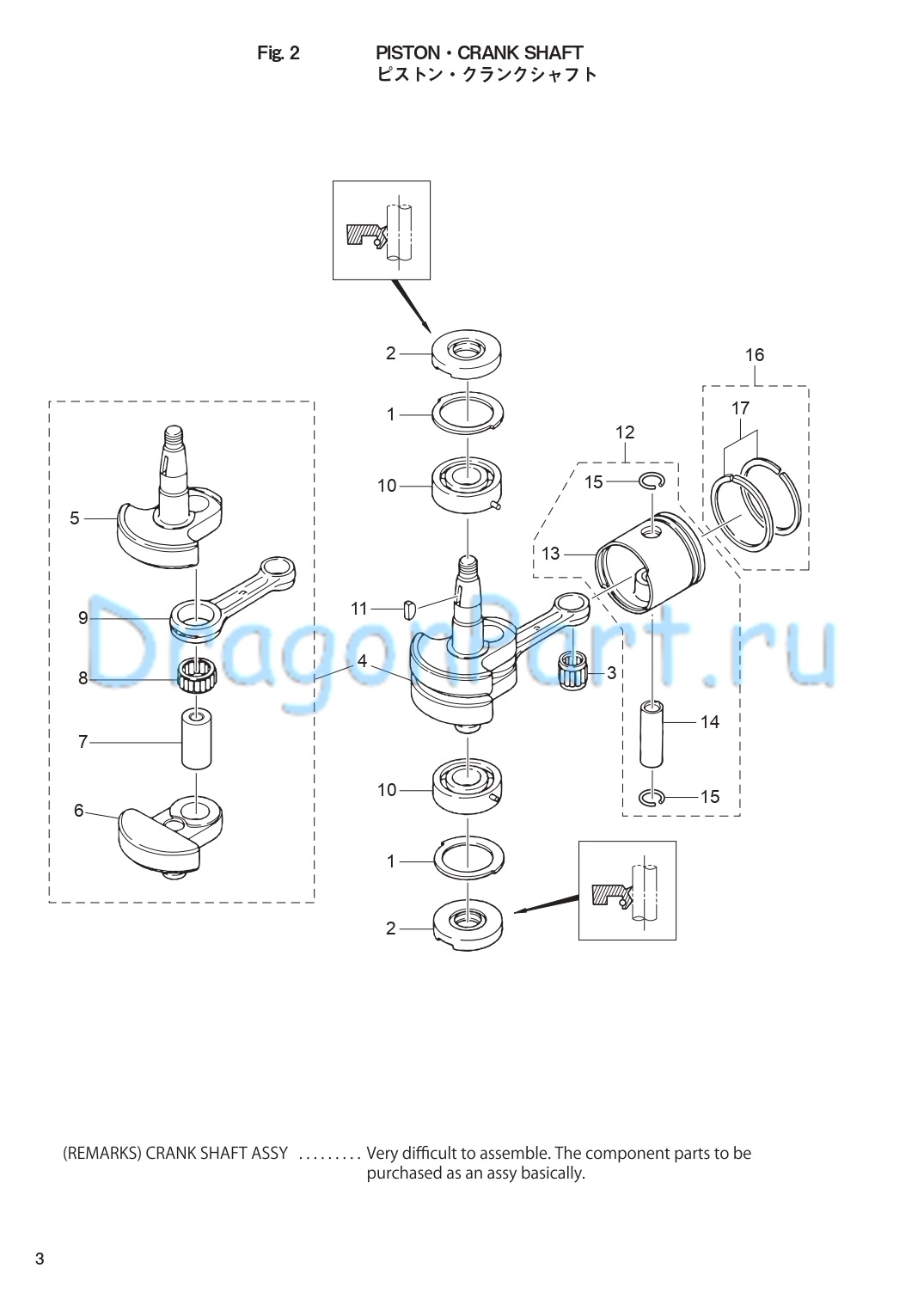

PISTON CRANK SHIFT для Tohatsu M5B - 2021 года выпуска

№

Артикул

Название
1

369-00115-0 THRUST PLATE

THRUST PLATE

200 ₽
2

369-00122-0 OIL SEAL 20-47-8

OIL SEAL 20-47-8

1 430 ₽
3

350-00042-0 ROLLER BEARING 14-18-20
Small End

ROLLER BEARING 14-18-20
Small End

1 880 ₽
4

369-00069-0 CRANKSHAFT SUB-ASSY

CRANKSHAFT SUB-ASSY

21 620 ₽
5

369-00031-0 * CRANKSHAFT A

* CRANKSHAFT A

10 410 ₽
6

369-00034-0 * CRANKSHAFT D

* CRANKSHAFT D

10 110 ₽
7

369-00061-1 * CRANK PIN

* CRANK PIN

910 ₽
8

369-00043-0 * ROLLER BEARING 20-26-12
Big End

* ROLLER BEARING 20-26-12
Big End

1 850 ₽
9

369-00040-0 * CONNECTING ROD

* CONNECTING ROD

4 970 ₽
10

9603-3-6204 BALL BEARING 6204

BALL BEARING 6204

2 890 ₽
11

338-00131-0 KEY
Magneto

KEY
Magneto

570 ₽
12

369-87130-0 PISTON REPAIR KIT
STD

PISTON REPAIR KIT
STD

4 580 ₽
12

369-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPT

PISTON REPAIR KIT (0.5 O/S)
OPT

4 950 ₽
13

369-00001-1 * PISTON
STD

* PISTON
STD

6 960 ₽
13

369-00004-1 * PISTON (0.5 O/S)
OPT

* PISTON (0.5 O/S)
OPT

4 140 ₽
14

369-00021-1 * PISTON PIN

* PISTON PIN

1 600 ₽
15

350-00024-1 * PISTON PIN CLIP

* PISTON PIN CLIP

320 ₽
16

369-87123-0 PISTON RING SET
STD

PISTON RING SET
STD

1 640 ₽
16

369-87124-0 PISTON RING SET (0.5 O/S)
OPT

PISTON RING SET (0.5 O/S)
OPT

2 180 ₽
17

351-00011-0 * PISTON RING
STD

* PISTON RING
STD

1 710 ₽
17

351-00014-0 * PISTON RING (0.5 O/S)
OPT

* PISTON RING (0.5 O/S)
OPT

2 190 ₽
