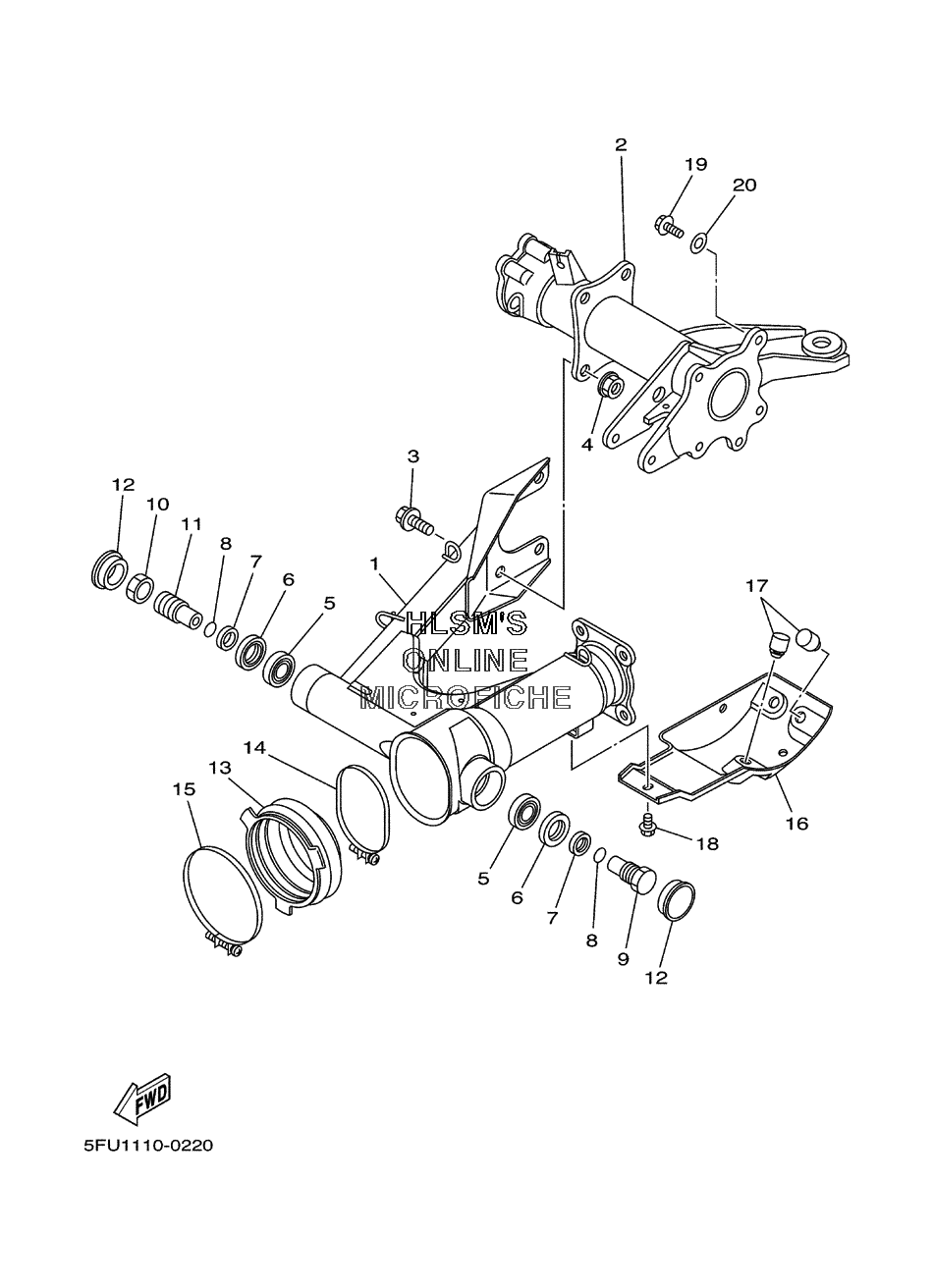

SUSPENSION - REAR ARM для Yamaha BIG BEAR 4WD YFM400FWNMC CALIFORNIA (5FU2) - 2000 года выпуска
-
№АртикулНазвание
-
15FU-F2110-00-00 REAR ARM COMPREAR ARM COMP
-
25FU-G6540-00-00 REAR AXLE HOUSING COMPREAR AXLE HOUSING COMP
-
39581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
495707-12500-00 NUT, FLANGENUT, FLANGE
-
593332-000Y3-00 BEARINGBEARING
-
693102-25017-00 OIL SEALOIL SEAL
-
790387-1711G-00 COLLARCOLLAR
-
893210-17718-00 O-RINGO-RING
-
94XE-F2141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
104XE-F2143-00-00 NUTNUT
-
114XE-F214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
1290338-34264-00 PLUGPLUG
-
134KB-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1490460-99289-00 CLAMP, HOSECLAMP, HOSE
-
154KB-22591-00-00 CLAMP, HOSECLAMP, HOSE
-
164XE-F219X-00-00 COVERCOVER
-
17109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1895807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-10893-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2090201-108R2-00 WASHER, PLATEWASHER, PLATE
