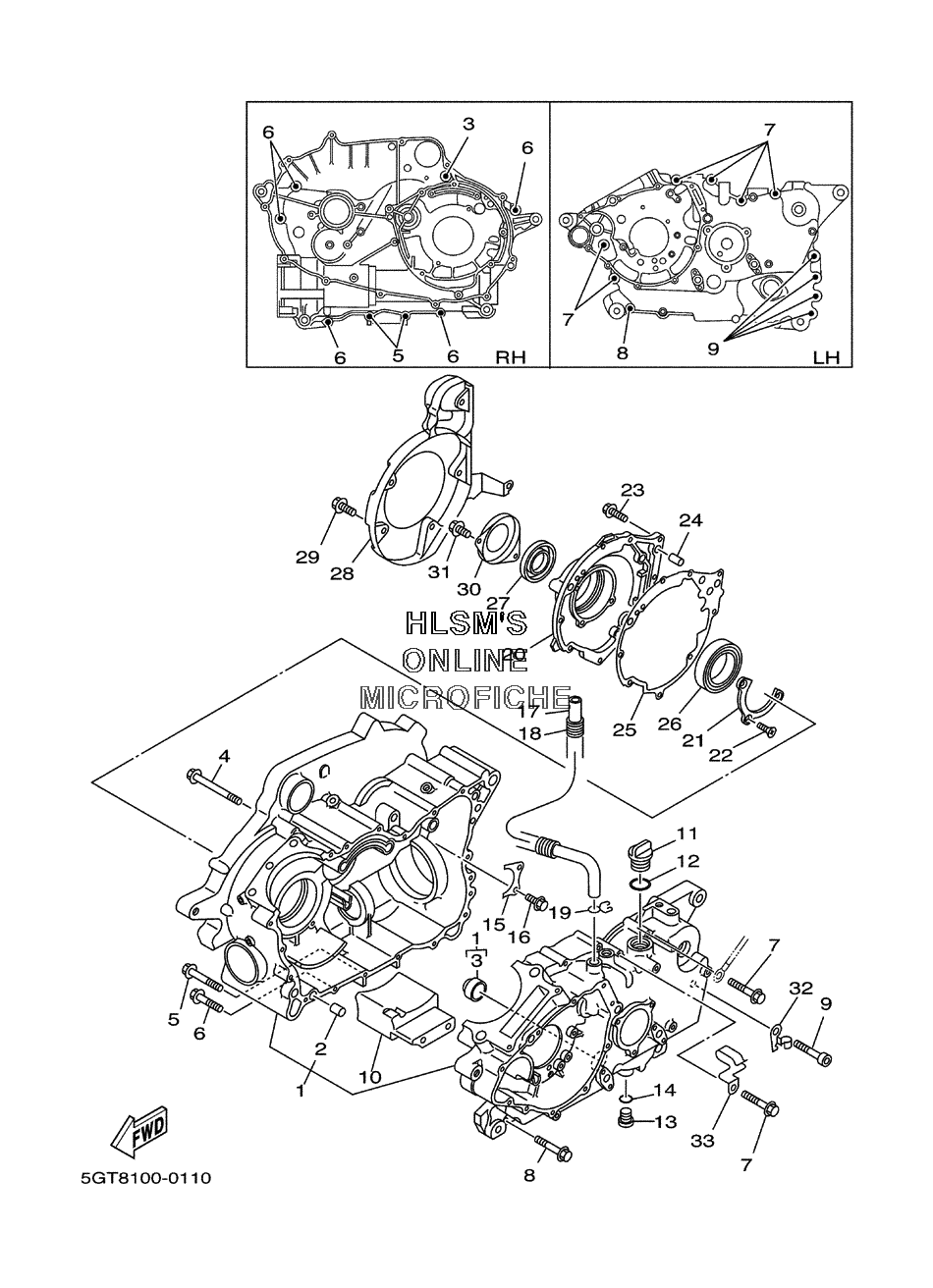

CRANKCASE для Yamaha GRIZZLY HUNTING YFM600HMC CALIFORNIA (5GT92) CAL - 2000 года выпуска
-
№АртикулНазвание
-
14WV-15100-12-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
299530-10014-00 PIN, DOWELPIN, DOWEL
-
32H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
495027-06090-00 BOLT, FLANGEBOLT, FLANGE
-
595027-06060-00 BOLT, FLANGEBOLT, FLANGE
-
695027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
795027-06055-00 BOLT, FLANGEBOLT, FLANGE
-
895027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
991317-08050-00 BOLTBOLT
-
104WV-15327-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
113F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1293210-27370-00 O-RINGO-RING
-
1390340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
14214-11198-01-00 GASKETGASKET
-
154WV-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1695027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
174WV-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
184WV-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
1990467-14015-00 CLIPCLIP
-
204WV-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
215GT-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2298707-06010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
2395027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2499530-10014-00 PIN, DOWELPIN, DOWEL
-
254WV-15463-00-00 GASKET 2GASKET 2
-
2693306-01002-00 BEARINGBEARING
-
2793102-35463-00 OIL SEALOIL SEAL
-
284WV-15333-00-00 COVERCOVER
-
2995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
305GT-15191-00-00 PLATEPLATE
-
3195027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3290465-10090-00 CLAMPCLAMP
-
3390465-08389-00 CLAMPCLAMP
