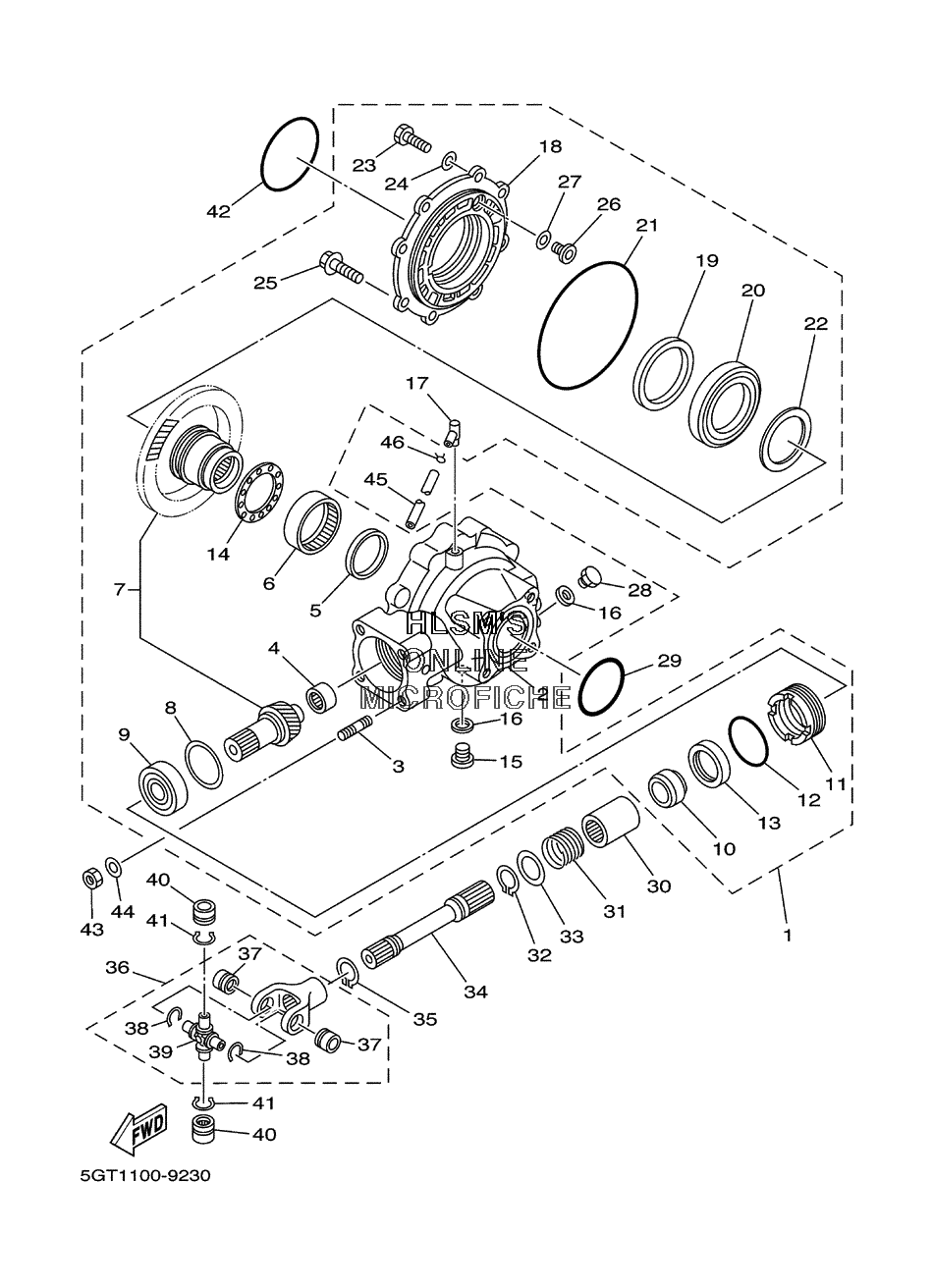

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY HUNTING YFM600HMC CALIFORNIA (5GT92) CAL - 2000 года выпуска
-
№АртикулНазвание
-
15GT-46101-00-00 REAR AXLE GEAR CASE ASSEMBLYREAR AXLE GEAR CASE ASSEMBLY
-
24WV-46151-00-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
390116-10593-00 BOLT, STUDBOLT, STUD
-
42H7-46102-00-00 BEARING ASSEMBLYBEARING ASSEMBLY
-
593101-52116-00 OIL SEALOIL SEAL
-
693317-85569-00 BEARINGBEARING
-
75GT-Y4612-00-00 RING GEAR SETRING GEAR SET
-
81J7-17537-Y0-30 SHIM, THRUST (0.30T) (OPT)SHIM, THRUST (0.30T) (OPT)
-
81J7-17537-Y0-40 SHIM, THRUST (0.40T) (OPT)SHIM, THRUST (0.40T) (OPT)
-
81J7-17537-Y0-50 SHIM, THRUST (0.50T) (OPT)SHIM, THRUST (0.50T) (OPT)
-
993306-30568-00 BEARINGBEARING
-
1090387-255H9-00 COLLARCOLLAR
-
1129U-46125-00-00 RETAINER, BEARINGRETAINER, BEARING
-
1293210-59531-00 O-RINGO-RING
-
1393101-38098-00 OIL SEALOIL SEAL
-
1424W-46118-00-12 WASHER, THRUST (1.2T) (OPT)WASHER, THRUST (1.2T) (OPT)
-
1424W-46118-00-14 WASHER, THRUST (1.4T) (OPT)WASHER, THRUST (1.4T) (OPT)
-
1424W-46118-00-16 WASHER, THRUST (1.6T) (OPT)WASHER, THRUST (1.6T) (OPT)
-
1424W-46118-00-18 WASHER, THRUST (1.8T) (OPT)WASHER, THRUST (1.8T) (OPT)
-
1424W-46118-00-20 WASHER, THRUST (2.0T) (OPT)WASHER, THRUST (2.0T) (OPT)
-
1590340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
16214-11198-01-00 GASKETGASKET
-
172N4-15371-00-00 BREATHERBREATHER
-
183HN-46152-01-00 HOUSING, BEARINGHOUSING, BEARING
-
1993102-65386-00 OIL SEALOIL SEAL
-
2093316-01301-00 BEARINGBEARING
-
2193211-51749-00 O-RINGO-RING
-
2224W-46117-00-25 SHIM, RING GEAR (0.25T) (OPT)SHIM, RING GEAR (0.25T) (OPT)
-
2224W-46117-00-40 SHIM, RING GEAR (0.40T) (OPT)SHIM, RING GEAR (0.40T) (OPT)
-
2224W-46117-00-50 SHIM, RING GEAR (0.50T) (OPT)SHIM, RING GEAR (0.50T) (OPT)
-
2397027-08025-00 BOLTBOLT
-
2492907-08600-00 WASHER, PLATEWASHER, PLATE
-
2595817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
261FK-46156-00-00 STOPPER, RING GEARSTOPPER, RING GEAR
-
271FK-46157-00-15 SHIM, STOPPER (T=0.15) (OPT)SHIM, STOPPER (T=0.15) (OPT)
-
271FK-46157-00-20 SHIM, STOPPER (T=0.20) (OPT)SHIM, STOPPER (T=0.20) (OPT)
-
2890340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2993210-65705-00 O-RINGO-RING
-
305GT-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
3190501-260L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3299009-25400-00 CIRCLIPCIRCLIP
-
3390201-25289-00 WASHER, PLATEWASHER, PLATE
-
345GT-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3593410-22039-00 CIRCLIPCIRCLIP
-
364KD-46107-00-00 CROSS JOINT COMP 2CROSS JOINT COMP 2
-
3793399-99926-00 BEARINGBEARING
-
3893440-20088-00 CIRCLIPCIRCLIP
-
392HR-46187-00-00 SPIDERSPIDER
-
4093399-99926-00 BEARINGBEARING
-
4193440-20088-00 CIRCLIPCIRCLIP
-
4293210-85706-00 O-RINGO-RING
-
4390179-10394-00 NUTNUT
-
4490201-10774-00 WASHER, PLATEWASHER, PLATE
-
4590445-072J4-00 HOSEHOSE
-
4690467-07029-00 CLIPCLIP
