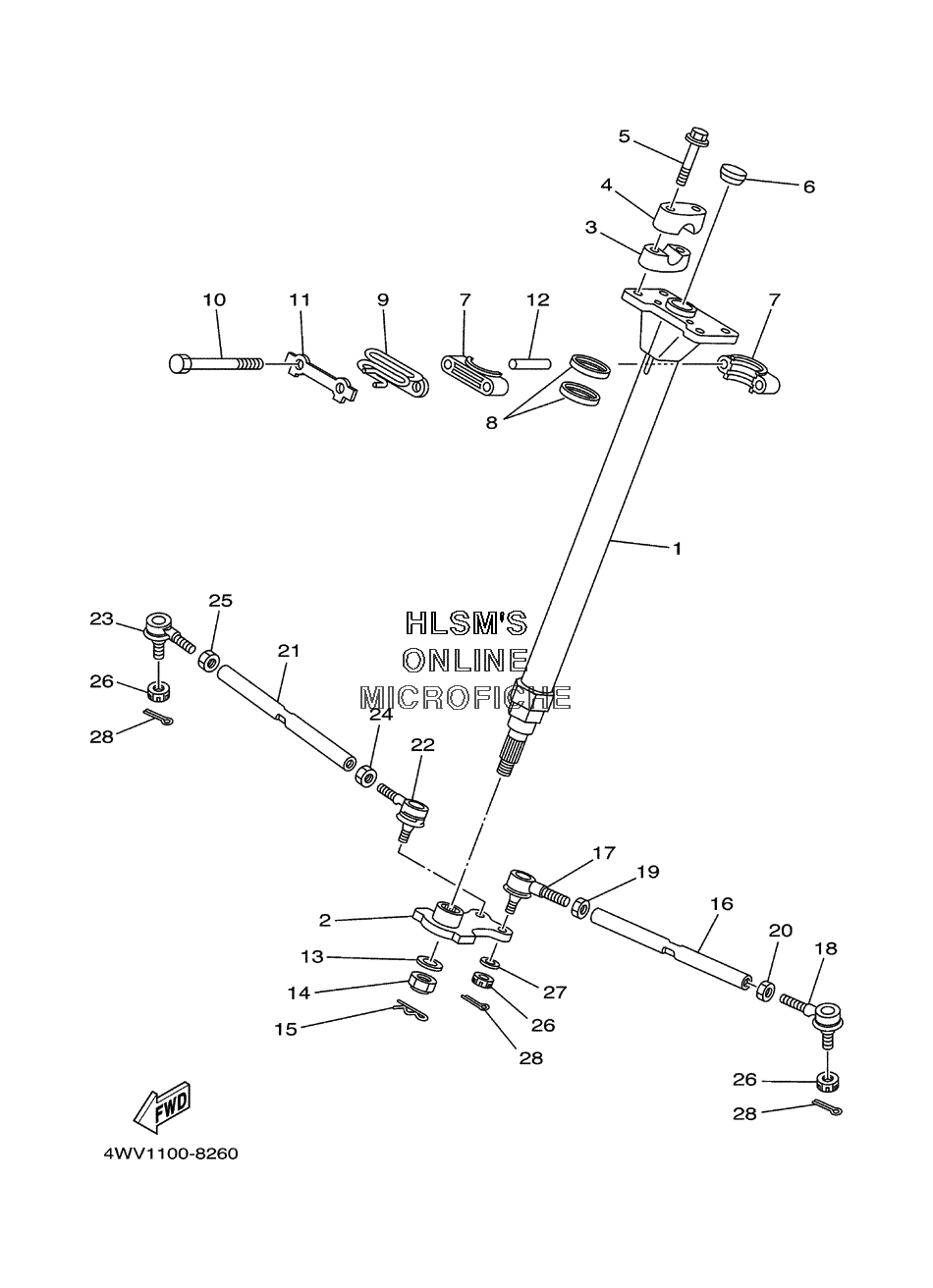

STEERING для Yamaha GRIZZLY YFM600FWAM (5GT6) - 2000 года выпуска
-
№АртикулНазвание
-
15GT-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
24WV-23816-00-00 ARM, PITMANARM, PITMAN
-
32HR-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
595827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
690336-28053-00 PLUG, TAPERPLUG, TAPER
-
71UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
893112-31011-00 OIL SEALOIL SEAL
-
94KB-23868-01-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097027-08060-00 BOLTBOLT
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1290387-090R0-00 COLLARCOLLAR
-
1390201-14222-00 WASHER, PLATEWASHER, PLATE
-
1490185-14081-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590468-16191-00 CLIPCLIP
-
164WV-23831-00-00 ROD, TIEROD, TIE
-
171UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
181UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1995307-10700-00 NUTNUT
-
2090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
214WV-23831-00-00 ROD, TIEROD, TIE
-
221UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
231UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2495307-10700-00 NUTNUT
-
2590170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2690171-10046-00 NUT, CASTLENUT, CASTLE
-
2792990-10600-00 WASHER, PLATEWASHER, PLATE
-
2891401-20020-00 PIN, COTTERPIN, COTTER
