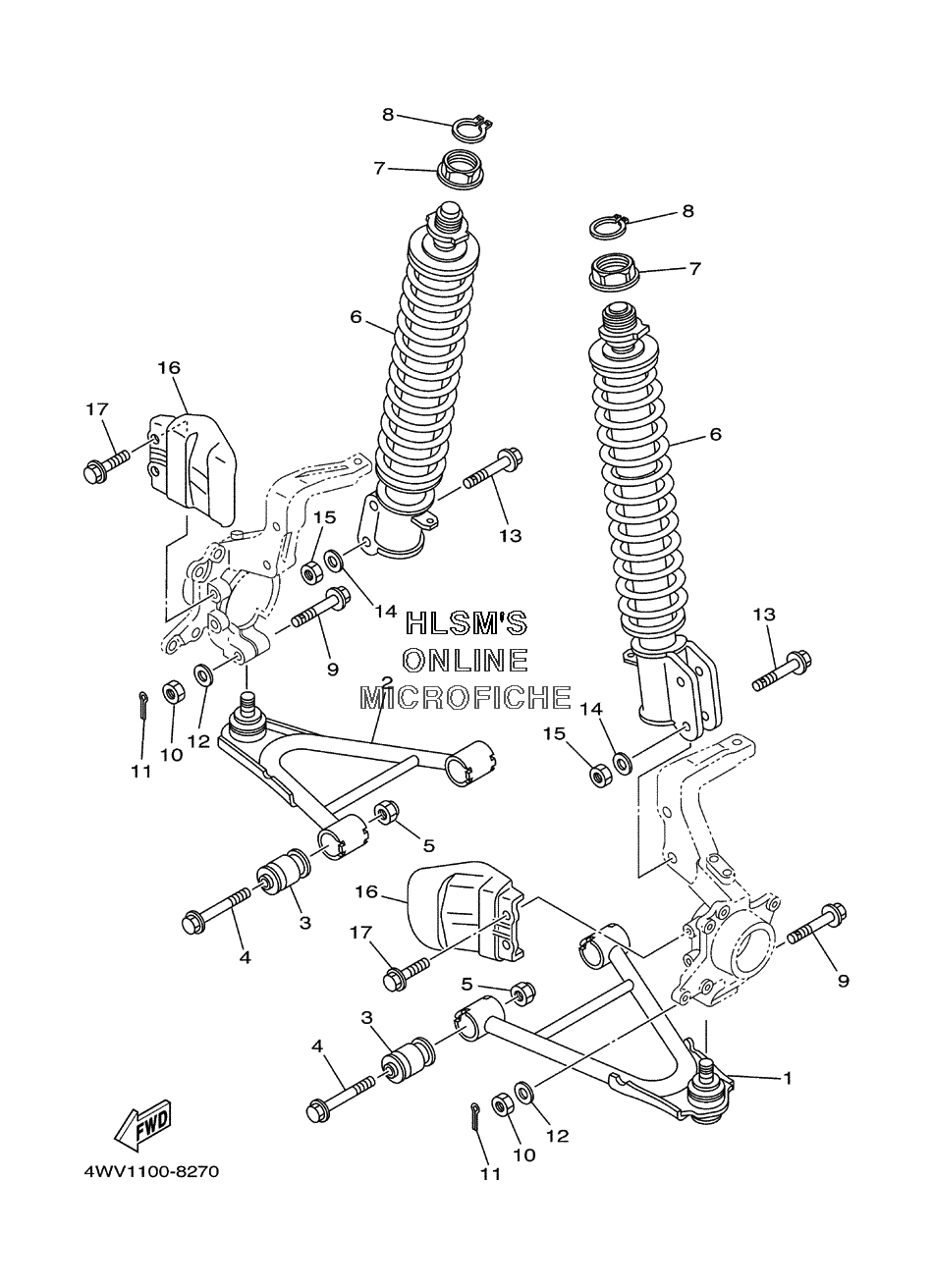

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY YFM600FWAM (5GT6) - 2000 года выпуска
-
№АртикулНазвание
-
15GT-23570-01-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25GT-23580-01-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
34WV-23526-00-00 BUSHBUSH
-
490105-10253-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
64WV-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
790179-35625-00 NUTNUT
-
893410-32075-00 CIRCLIPCIRCLIP
-
990105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095337-10600-00 NUTNUT
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
1290201-08759-00 WASHER, PLATEWASHER, PLATE
-
1395817-12050-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1595617-12100-00 NUT, UNUT, U
-
164WV-2331M-00-00 COVER, RINGCOVER, RING
-
1790119-06228-00 BOLT, WITH WASHERBOLT, WITH WASHER
