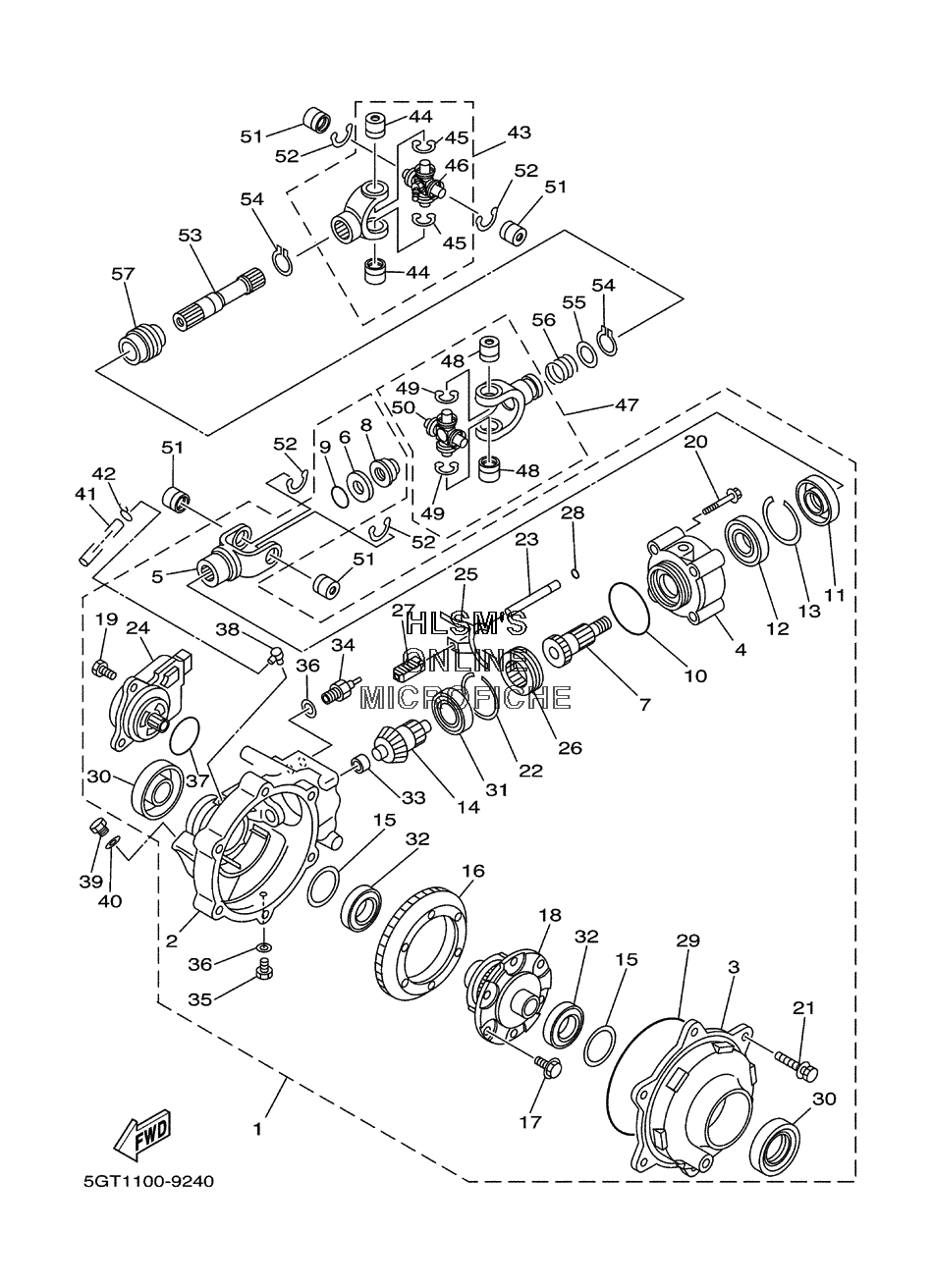

DIFFERENTIAL - FRONT для Yamaha GRIZZLY YFM600FWAMC CALIFORNIA (5GT62) - 2000 года выпуска
-
№АртикулНазвание
-
15GT-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
24WV-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
34WV-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
44WV-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
55GT-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
690201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
75GT-46121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
84WV-46145-00-00 ...NUT 1...NUT 1
-
993210-14359-00 ...O-RING...O-RING
-
1093210-69628-00 ...O-RING...O-RING
-
114WV-46163-00-00 ...SEAL,OIL 1...SEAL,OIL 1
-
124WV-46164-00-00 ...BEARING 1...BEARING 1
-
134WV-46142-00-00 ...RING,HOLE SNAP 1...RING,HOLE SNAP 1
-
145GT-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
154WV-46119-00-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
154WV-46119-10-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
154WV-46119-20-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
154WV-46119-30-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
154WV-46119-40-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
154WV-46119-50-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
154WV-46119-60-00 ...SHIM, THRUST (1.5T) (OPT)...SHIM, THRUST (1.5T) (OPT)
-
154WV-46119-70-00 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
154WV-46119-80-00 ...SHIM, THRUST (2.5T) (OPT)...SHIM, THRUST (2.5T) (OPT)
-
165GT-46131-00-00 ...GEAR, RING 2...GEAR, RING 2
-
174WV-46155-00-00 ...BOLT 1...BOLT 1
-
185GT-46470-00-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
1991317-08020-00 ...BOLT...BOLT
-
204WV-46158-00-00 ...BOLT 2...BOLT 2
-
214WV-46159-00-00 ...BOLT 3...BOLT 3
-
224WV-46143-00-00 ...RING,HOLE SNAP 2...RING,HOLE SNAP 2
-
234WV-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
244WV-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
254WV-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
264WV-46441-00-00 ...CLUTCH, DRIVEN...CLUTCH, DRIVEN
-
274WV-18319-00-00 ...SHAFT 2...SHAFT 2
-
284WV-46134-00-00 ...O-RING 1...O-RING 1
-
294WV-46135-00-00 ...O-RING 2...O-RING 2
-
3093102-35380-00 ...OIL SEAL...OIL SEAL
-
314WV-46165-00-00 ...BEARING 2...BEARING 2
-
324WV-46166-00-00 ...BEARING 3...BEARING 3
-
334WV-46167-00-00 ...BEARING 4...BEARING 4
-
343GD-82540-11-00 ...NEUTRAL SWITCH ASSY...NEUTRAL SWITCH ASSY
-
354WV-46168-00-00 ...PLUG, DRAIN 1...PLUG, DRAIN 1
-
364WV-46132-00-00 ...GASKET 1...GASKET 1
-
3793210-50768-00 ...O-RING...O-RING
-
382N4-15371-00-00 ...BREATHER...BREATHER
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
40214-11198-01-00 GASKETGASKET
-
4190445-072J3-00 HOSEHOSE
-
4290467-07029-00 CLIPCLIP
-
435GT-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4493399-99948-00 ...BEARING...BEARING
-
4593440-20088-00 ...CIRCLIP...CIRCLIP
-
465GT-46187-00-00 ...SPIDER...SPIDER
-
475GT-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
4893399-99948-00 ...BEARING...BEARING
-
4993440-20088-00 ...CIRCLIP...CIRCLIP
-
505GT-46187-00-00 ...SPIDER...SPIDER
-
5193399-99948-00 BEARINGBEARING
-
5293440-20088-00 CIRCLIPCIRCLIP
-
535GT-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
5499009-19400-00 CIRCLIPCIRCLIP
-
5590201-20266-00 WASHER, PLATE (1.0T)WASHER, PLATE (1.0T)
-
5690501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
575GT-46136-00-00 SEAL 1SEAL 1
