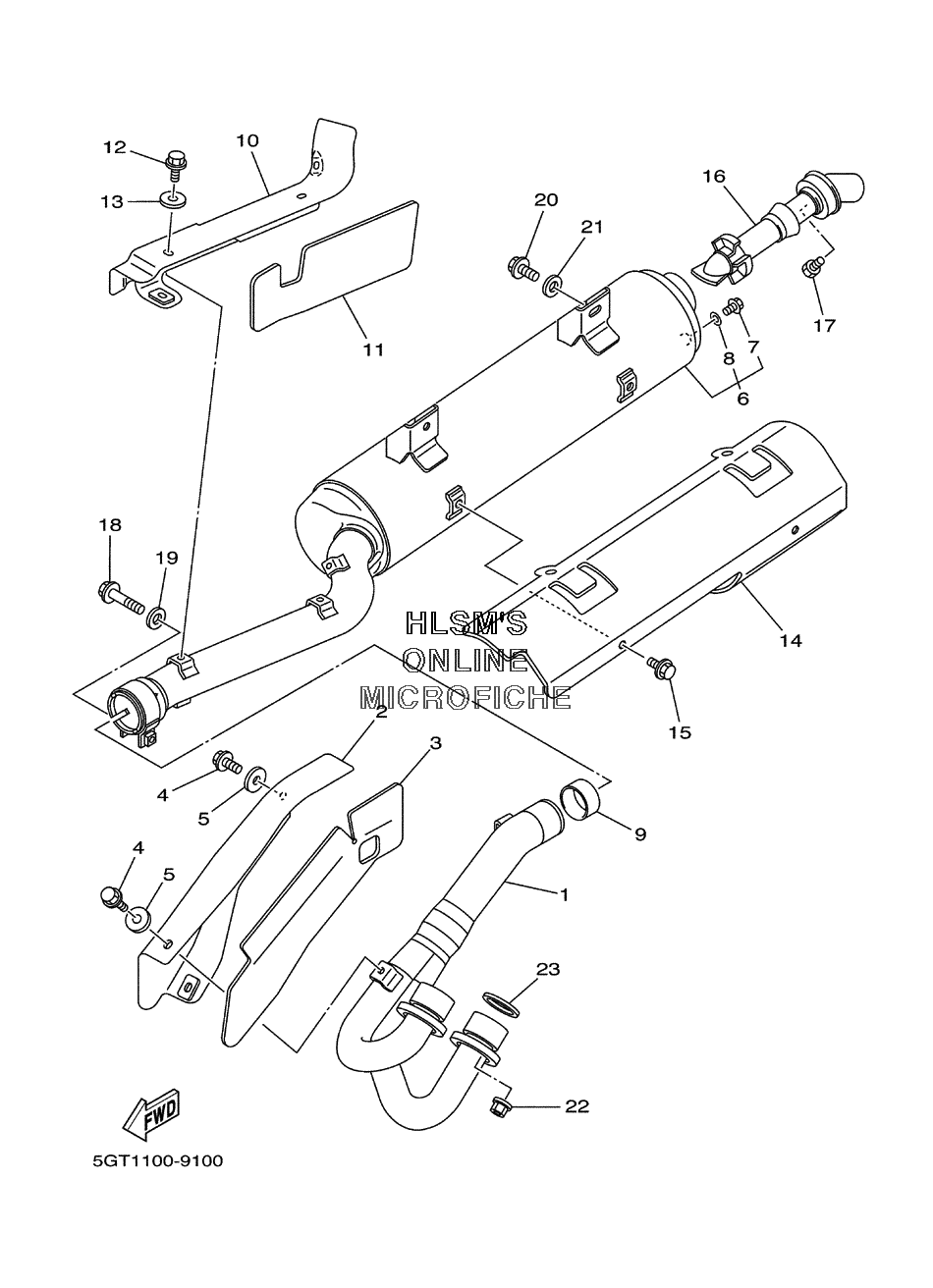

EXHAUST для Yamaha GRIZZLY YFM600FWAMC CALIFORNIA (5GT62) - 2000 года выпуска
-
№АртикулНазвание
-
15GT-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
24WV-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
34WV-1465R-01-00 PLATE, PROTECTORPLATE, PROTECTOR
-
495817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06071-00 WASHER, PLATEWASHER, PLATE
-
65GT-14711-00-00 MUFFLER 1MUFFLER 1
-
795885-10014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
892990-10600-00 ...WASHER, PLATE...WASHER, PLATE
-
93YF-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
104WV-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
114WV-1465T-01-00 PLATE, PROTECTORPLATE, PROTECTOR
-
1295817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-06071-00 WASHER, PLATEWASHER, PLATE
-
145GT-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1595817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
164WV-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1797007-06008-00 BOLTBOLT
-
1895817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-086J0-00 WASHER, PLATEWASHER, PLATE
-
2095817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-08326-00 WASHER, PLATEWASHER, PLATE
-
2290179-06668-00 NUTNUT
-
233YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
