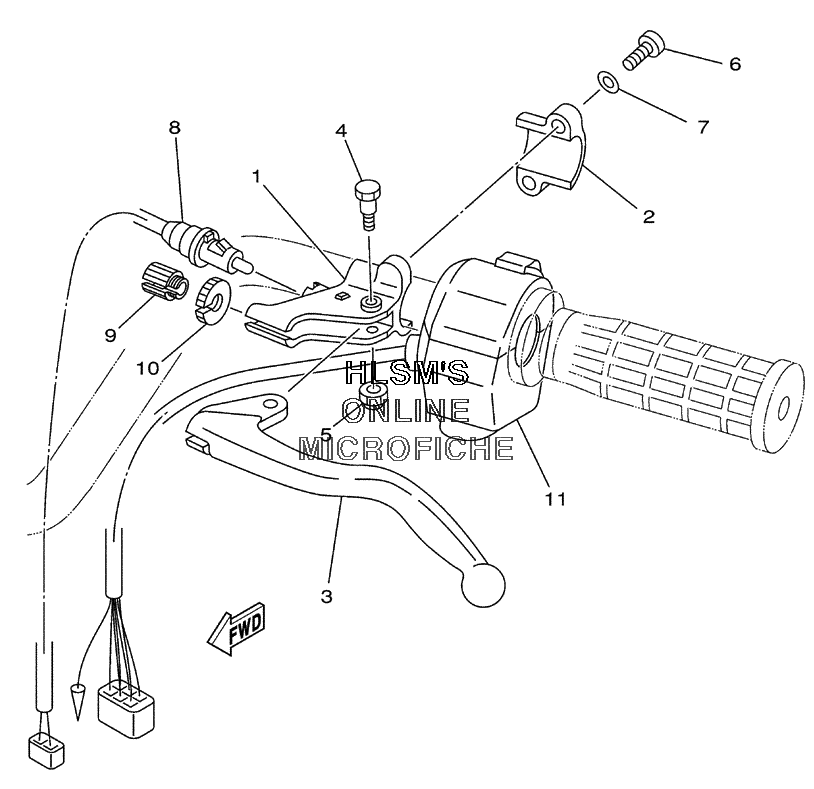

HANDLEBAR - SWITCHES/LEVERS для Yamaha KODIAK 2WD YFM400AM (5HA1) - 2000 года выпуска
-
№АртикулНазвание
-
11YW-82911-01-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
490109-06799-00 BOLTBOLT
-
595607-06100-00 NUT, UNUT, U
-
698507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-06100-00 WASHER, SPRINGWASHER, SPRING
-
85GH-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
990123-08046-00 BOLTBOLT
-
1090179-08148-00 NUTNUT
-
115GH-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
