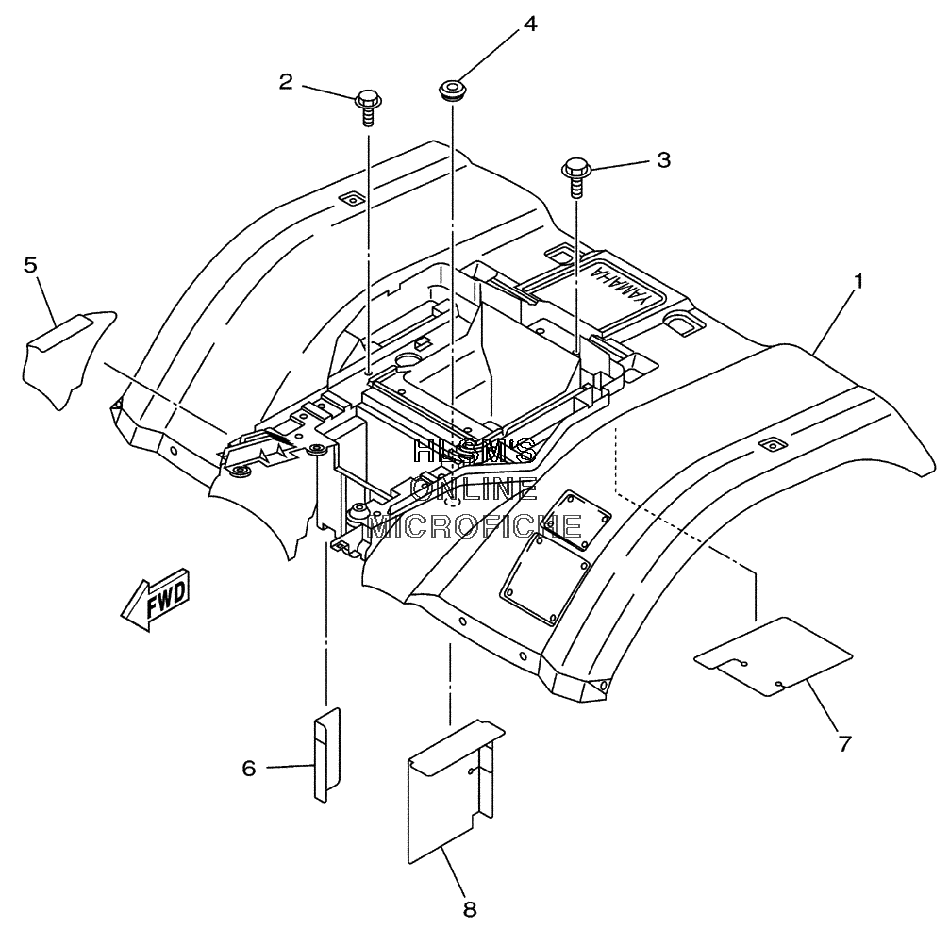

FENDER - REAR для Yamaha KODIAK 4WD AUTOMATIC YFM400FAM (5GH1) - 2000 года выпуска
-
№АртикулНазвание
-
15GH-W2161-00-00 REAR FENDER COMP. (PASTEL DEEP GREEN) (PDG)REAR FENDER COMP. (PASTEL DEEP GREEN) (PDG)
-
15GH-W2161-10-00 REAR FENDER COMP. (ROMANTIQUE ROUGE) (RTR)REAR FENDER COMP. (ROMANTIQUE ROUGE) (RTR)
-
15GH-W2161-20-00 REAR FENDER COMP. (DARK GRAYISH YELLOW SOLID 1) (DNYS1)REAR FENDER COMP. (DARK GRAYISH YELLOW SOLID 1) (DNYS1)
-
290119-06094-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490338-09130-00 PLUGPLUG
-
55GH-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
65GH-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
75GH-21652-00-00 PROTECTORPROTECTOR
-
85GH-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
